Tractor tipper trailer 2PTS-4 (Communal), Zaporizhia region.

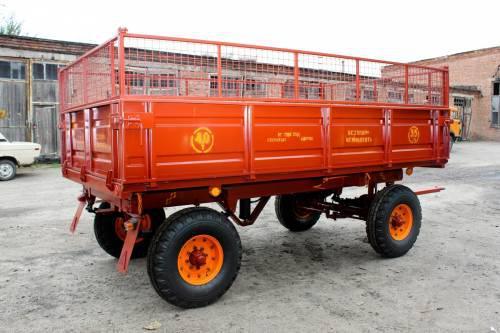

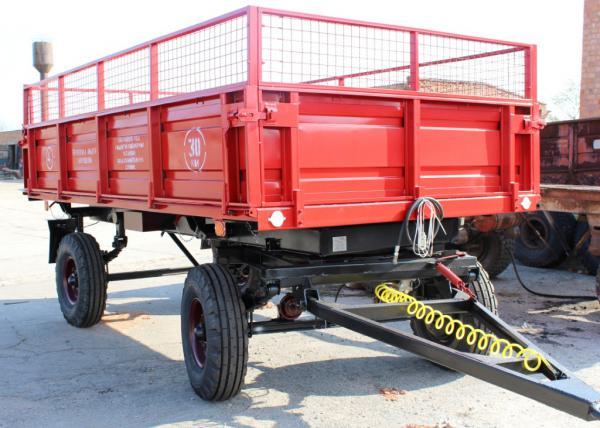

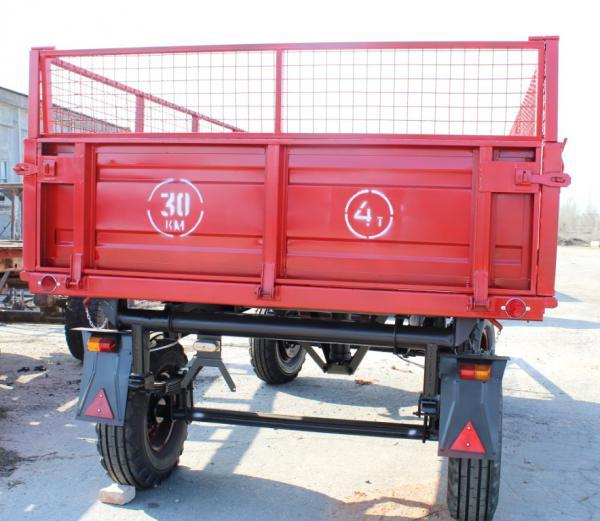

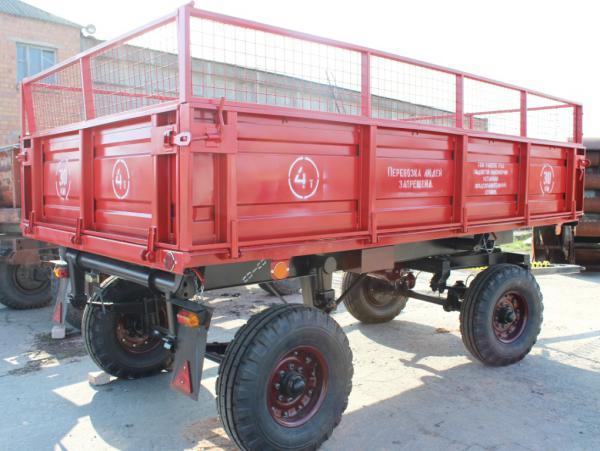

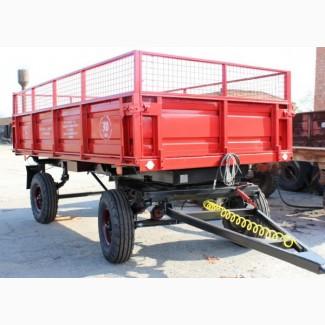

Tractor tipper trailer 2PTS-4
We are pleased to present to you the modified Dump Tractor Trailer 2PTS-4" - a reliable and versatile assistant in your agricultural and communal activities. Regardless of whether you need to transport crops or remove waste, this trailer copes with the task with ease.

Advantages of the 2PTS-4 trailer
— Capacious body with a volume of up to 15 m3.
Body modifications:
• Base board (4.1*2.3*0.65 m) - 6.1 m3
• Utility board (removable superstructure) (4.1*2.3*1.05 m) - 10 m3
• Double board (4.1*2.3*1.3 m) - 12.3 m3
• Mesh sides (4.1*2.3*1.65 m) - 15 m3

— Load capacity up to 5 tons: This trailer is designed to reliably transport various loads, be it grain, leaves, branches or construction materials.

— Трехсторонняя выгрузка: This trailer gives you the ability to unload cargo both to the right and to the left, as well as backwards, which provides maximum flexibility in operation.

— Method of opening the sides: top-down / bottom-up

— Turning mechanism - turning ring: This feature of the trailer ensures maximum maneuverability when moving in limited spaces.

— Reinforced construction with 2-3 mm thick sides

— The reliable suspension of 9 leaf springs is designed with intensive use in mind, ensures a long service life.

— Reliable pneumatic brakes: The pneumatic braking system ensures safe and reliable braking in all conditions.

— Galvanized pivots (fingers), lubricated assemblies, first-class discs and tires 9.00-16: Guarantee additional protection against corrosion and ensure reliability in difficult conditions.

— Powder anti-corrosion polymer paint: Increases the durability of the trailer and protects it from the influence of external factors.

— The package includes: anti-rollback supports, pneumatic cable for the tractor, hydraulic hoses for the tractor, stop, position, and turning lights.

— We provide a full warranty for the trailer for 1 year and guarantee professional service and technical support on all issues.(//tractor-service.com)

As a progressive manufacturing plant, we are flexible and ready to manufacture trailers to order, taking into account your individual needs - any volume, height of sides, load capacity, method of opening the sides and method of unloading!

Technical characteristics of the trailer:
Body dimensions (L*W*H): 4.1*2.3*1.05 m (Main side - 65 cm, Removable extra side - 40 cm)
Body volume: 10 m3
Trailer dimensions (L*W*H): 6*2.3*2.2 m
Own weight: 2 t
Load capacity: 4.5 t
Tractor power: from 50 hp.
Axle: 2 pcs.
Braking system: Pneumatic on 1 axle / on 2 axles (Optional)
Electrical system: 12 V; Side, stop and turn lights.
Turning mechanism: turning circle
Maximum speed: 40 km/h
Unloading method: Right-Left-Back
Unloading angle: back - 50 degrees, right-left - 45 degrees
On-board system: Top-Down (Utility) / Bottom-Up (Grain truck)
Complete set:
Spiral hose with quick-acting pneumatic coupling
High-pressure hose with quick-release coupling
Electrical outlet 7-pin
Fixing body spacer
Reflective stickers
Euro on-board locks with "Fast System" fuse
Anti-rollback stops 2 pcs.
Wheels: disc withtires 9.00-16
Suspension: floating type spring
Body material: bent steel profile metal 2 mm.
Lifting mechanism: 3-rod telescopic hydraulic cylinder with max. pressure 20 MPa.
Towing ring Ø40 / Ø50 / Ø90 mm
Warranty: 12 months
We deliver all over Ukraine, provide documents for registration and warranty service.
