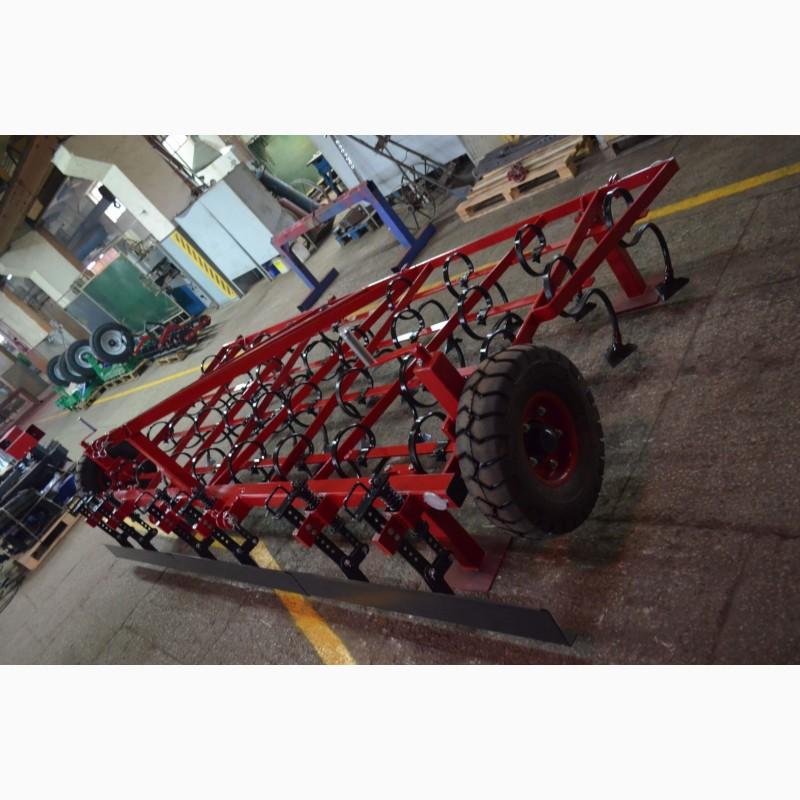

Cultivator Europak Compactor 4m mounted 4-row KPP-4, Kirovohrad region.

CultivatorEuropak Compactor 4m mounted 4-row gearbox-4

Light mounted 4-meter cultivator KPP-4 with spring S-shaped racks Bellota is designed for pre-sowing soil cultivation and steam treatment for the purpose of destroying weeds with simultaneous harrowing at a speed of up to 20 km/h.

The cultivator can be used in all soil and climatic zones, except for mountain farming areas and fields littered with stones.

Complete with reliable spring S-shaped racks Bellota (Spain), which have proven themselves from the best side.

In the basic configuration, tandem rollers and additional supportingwheels on jacks are installed.

In addition, the cultivator can be equipped with a slat leveler (slat).

Basic technical data and characteristics:
cultivator type – mounted;(//tractor-service.com)
The working speed of movement is 20 km/h.
The width of capture is 4 m;
Rack type – S-shaped (Bellota) 32x10 :
Width - 32 mm;
Height - 490 mm;
Thickness - 10 mm.
Working body (paw) – 150x4mm;
The number of rows is 4;
The number of working bodies is 35; 170
Кількість котків – 2 (тандемні планчасті);
The diameters of the rollers are 200mm and 300mm;
The depth of tillage with paws is 160 mm;
Quality of soil crushing (lump size up to 25 mm), not less than 80%;
Ground clearance of at least 260 mm.
