Automatic meat injector STvega Meat Injector H300, Kyiv

Automatic injector for meat products STvega Meat Injector H300 is designed for uniform injection of brine and auxiliary ingredients into meat raw materials to achieve optimal the effect of preparing the product for further processing, which can reduce the time of pickling and significantly improve the taste of products.

The injector directly injects a pre-configured concentration of brine (pickling liquid) through a special needle. According to the technological needs, the saline injection machine can adjust the step speed, step distance and injection pressure.

This brine injector can be used to process pork, beef, lamb, fish, chicken and other meat products.

Features of the machine:

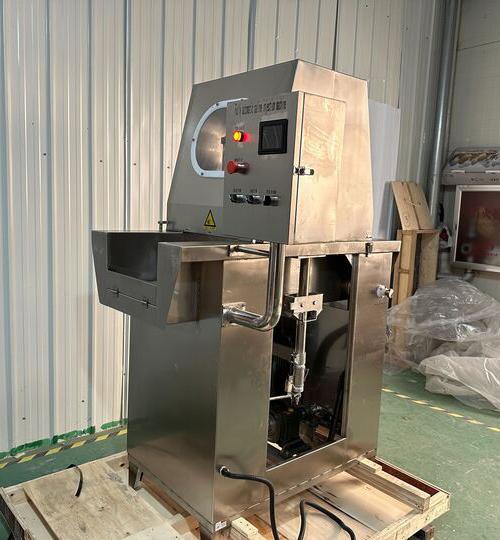

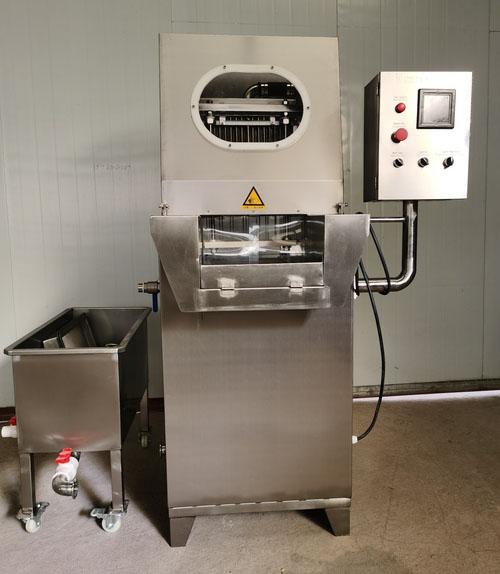

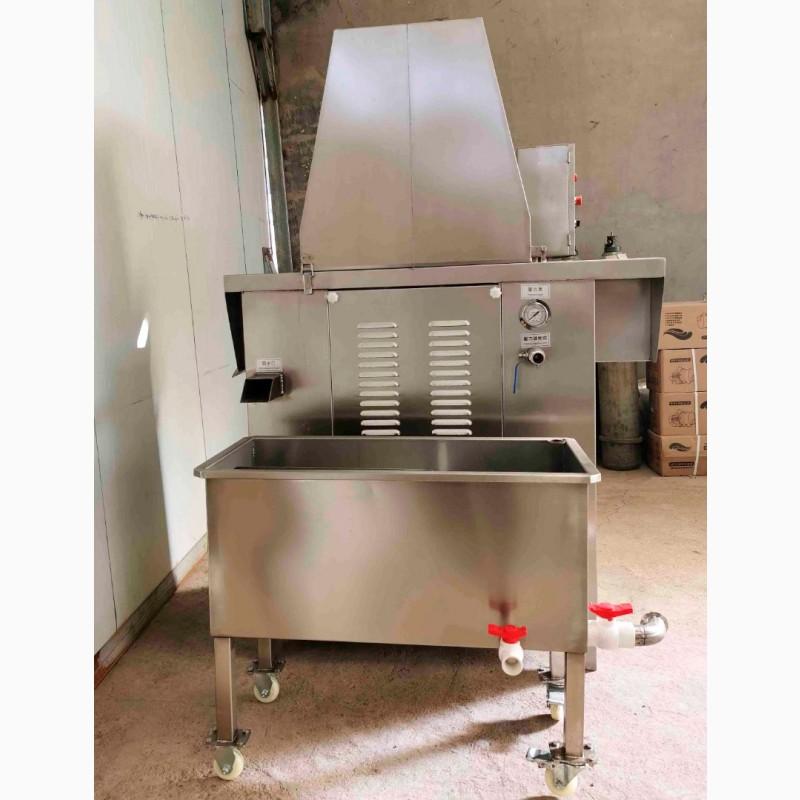

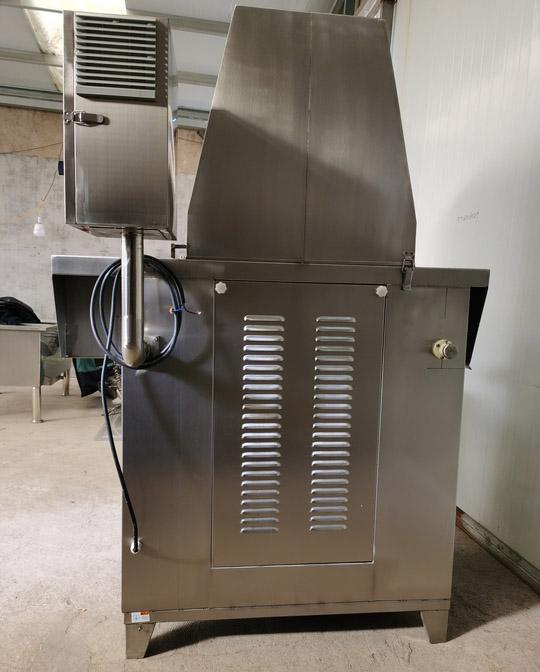

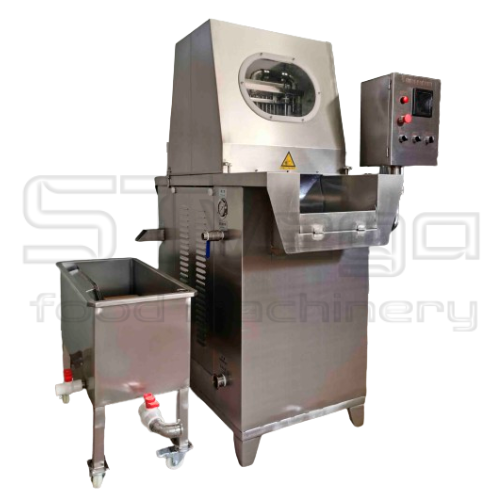

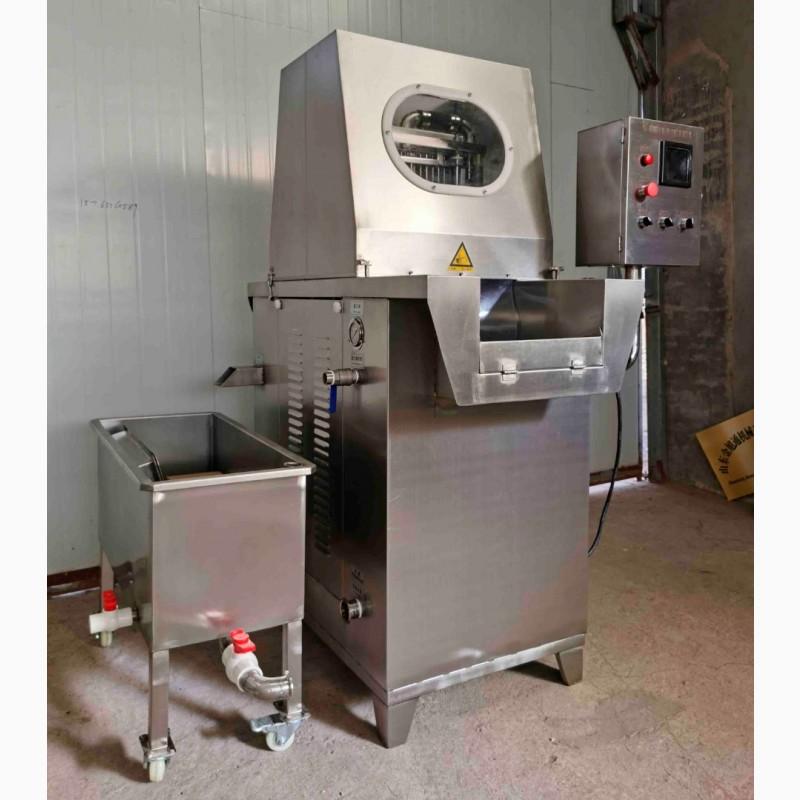

The automatic injector for meat products is made in the form of a floor unit, which is connected to the electrical network with the help of a cable and consists of two units connected to each other - an injector and atank with a filter.

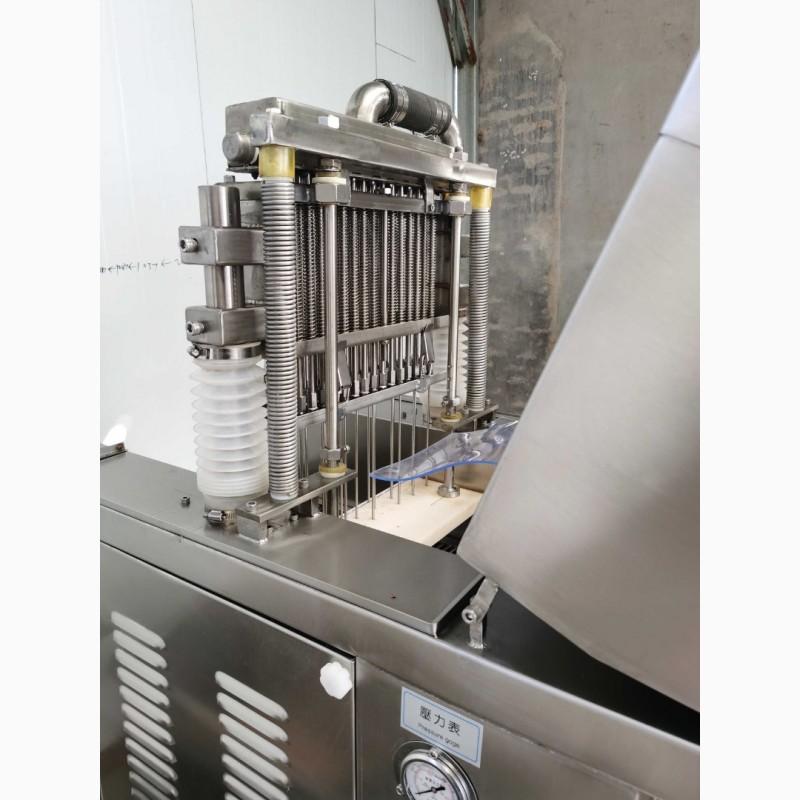

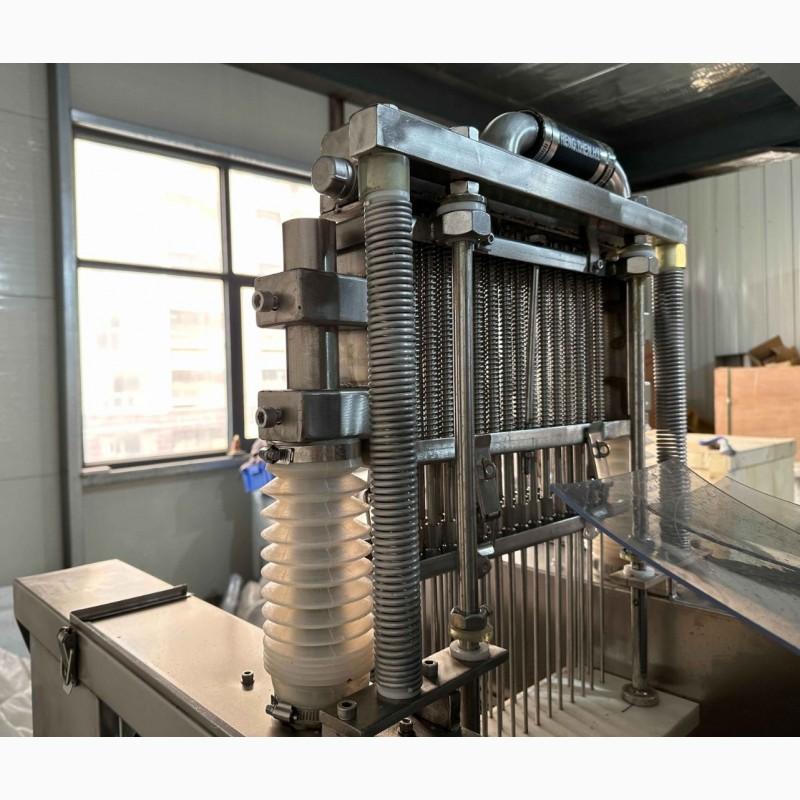

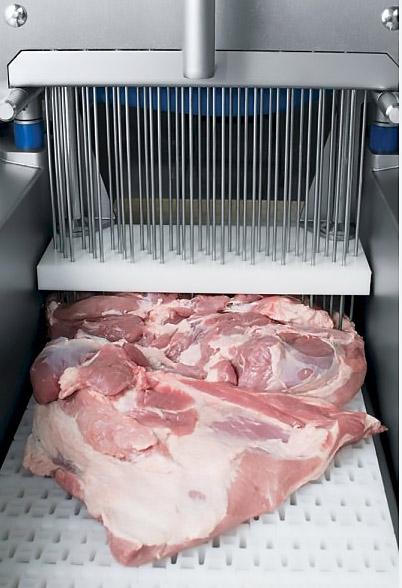

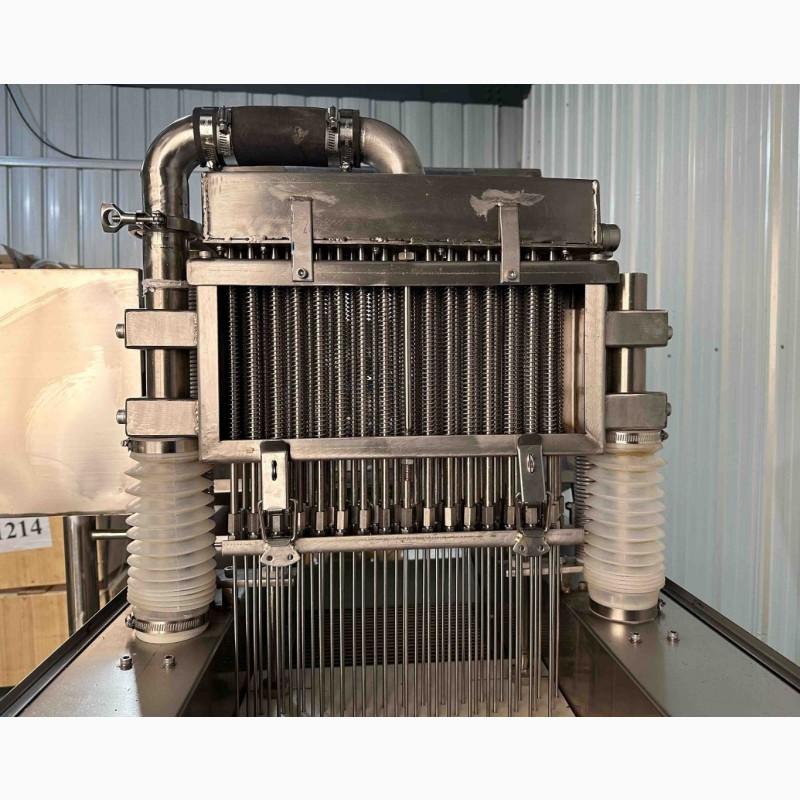

The injector uses four-stage filtration to prevent clogging of the needle. It is easy to operate and maintain. It has a high injection speed. The entire process of serving meat and introducing salt solution is performed automatically. The injection needle has an independent spring design, it can automatically bounce back if it encounters a bone or hard object, thus preventing the needle from being damaged. The drive of the conveyor is synchronized with the drive of the injection head, which ensures the achievement of various combinations of injection grids.

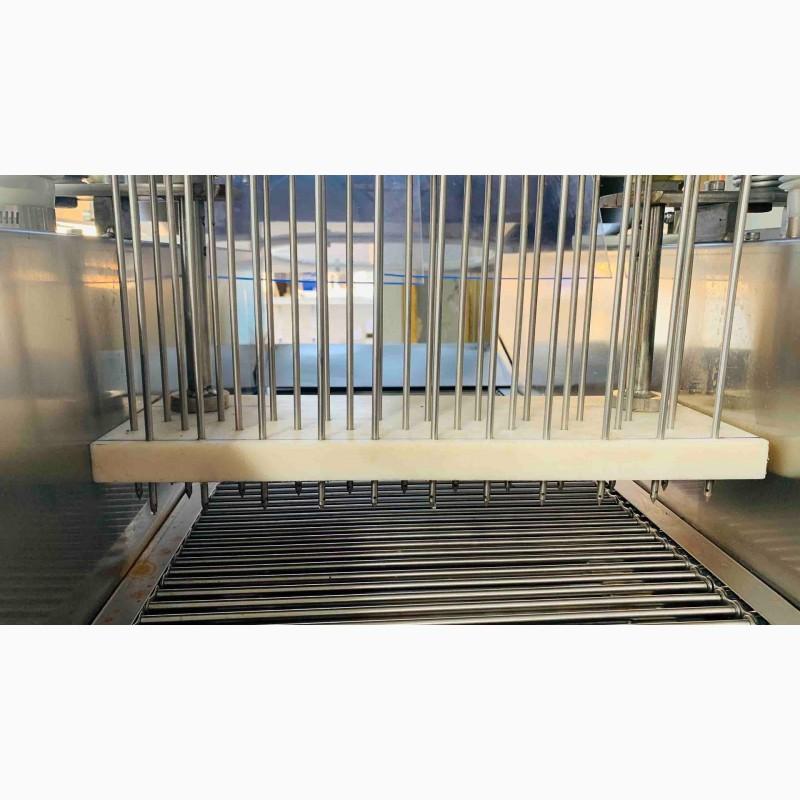

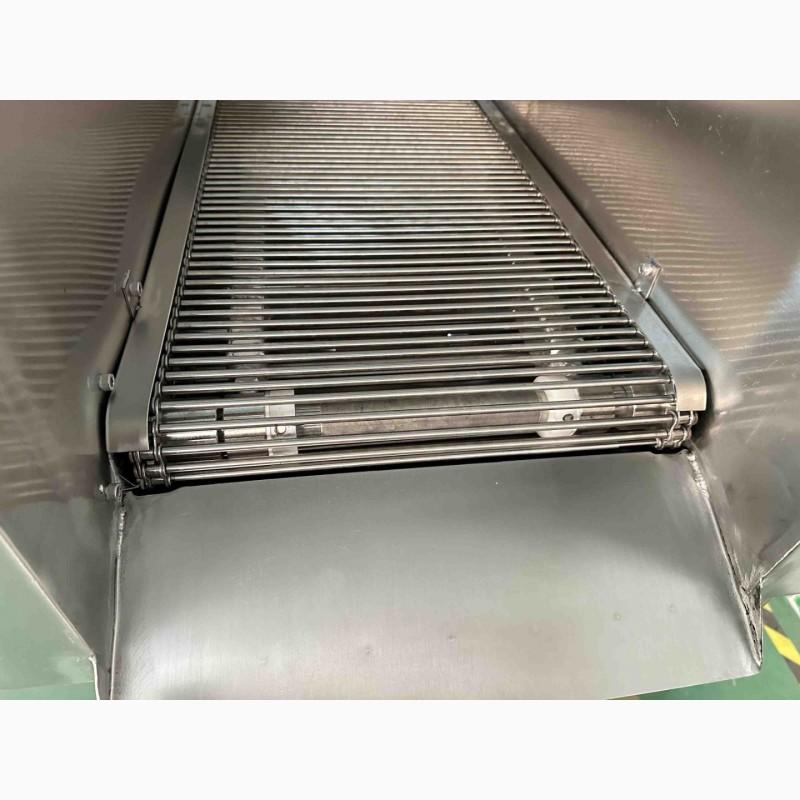

For transportation, a conveyor with electronic adjustment of step speed is used, the belt of which is made of stainless steel, it delicately moves raw materials for injection, is reliable in use, meets food safety standards and has a long service life.

Principle of operation:

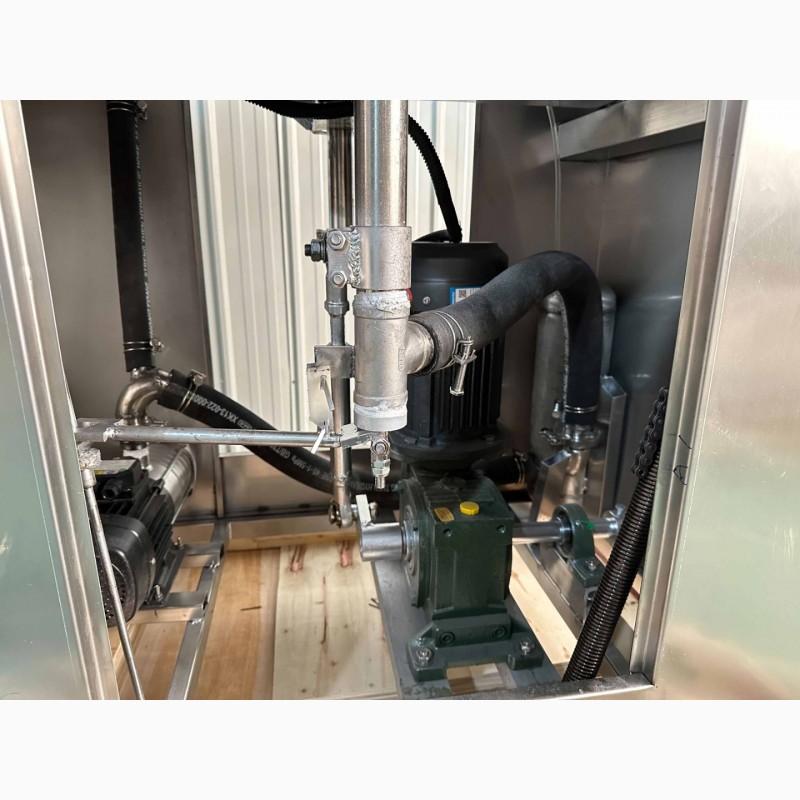

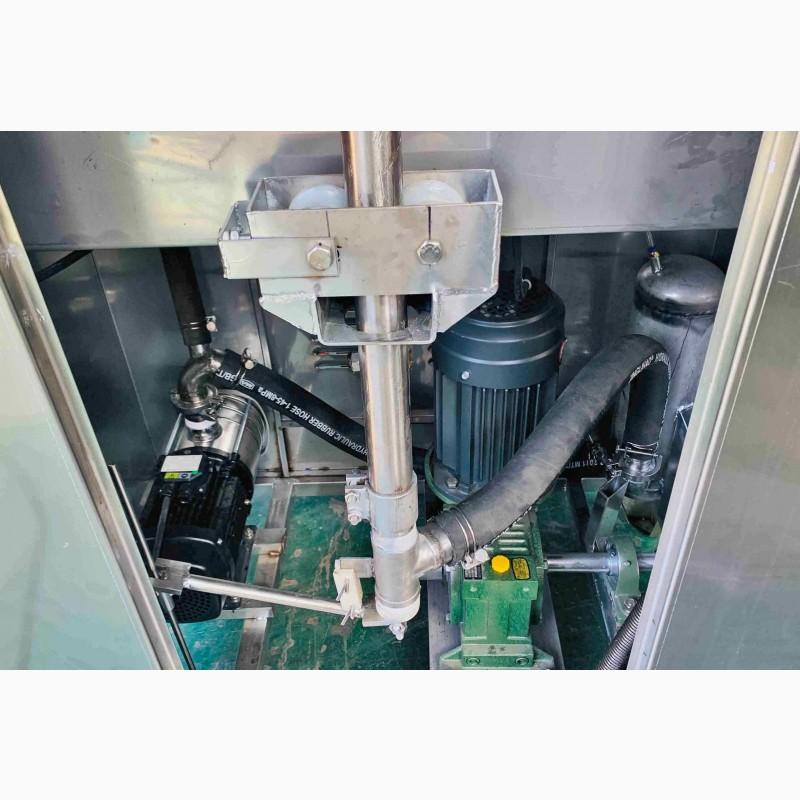

The liquid for injections is fed into the bath, from which it enters the head for injections with the help of apump supply channel. The pressure gauge located on the side panel shows the pressure in the system. With the help of a combination of measuring pressure and supply, as well as the speed of the conveyor, the process of introducing liquid into the product is controlled.

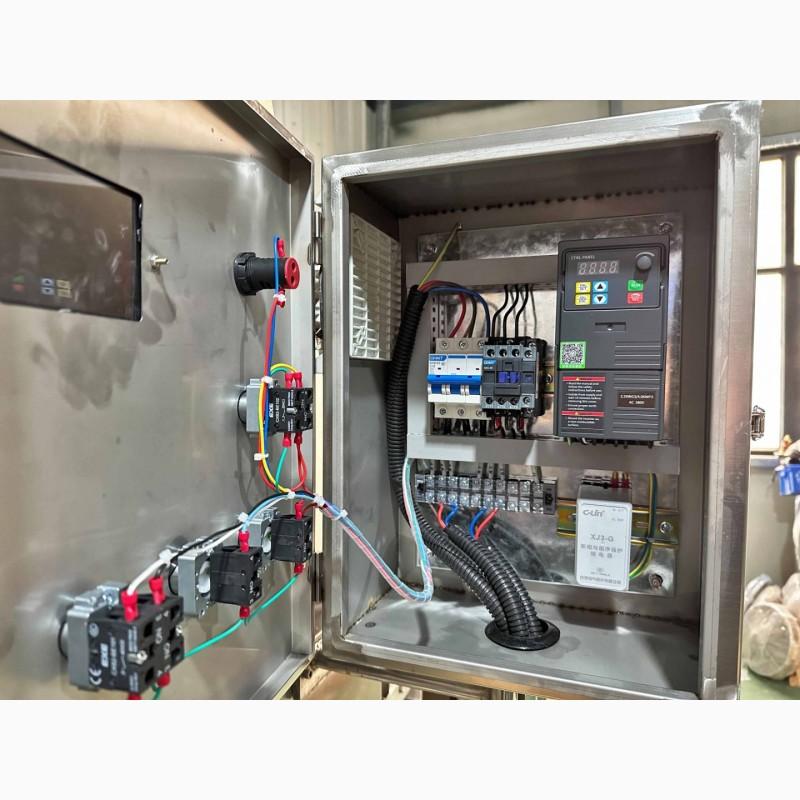

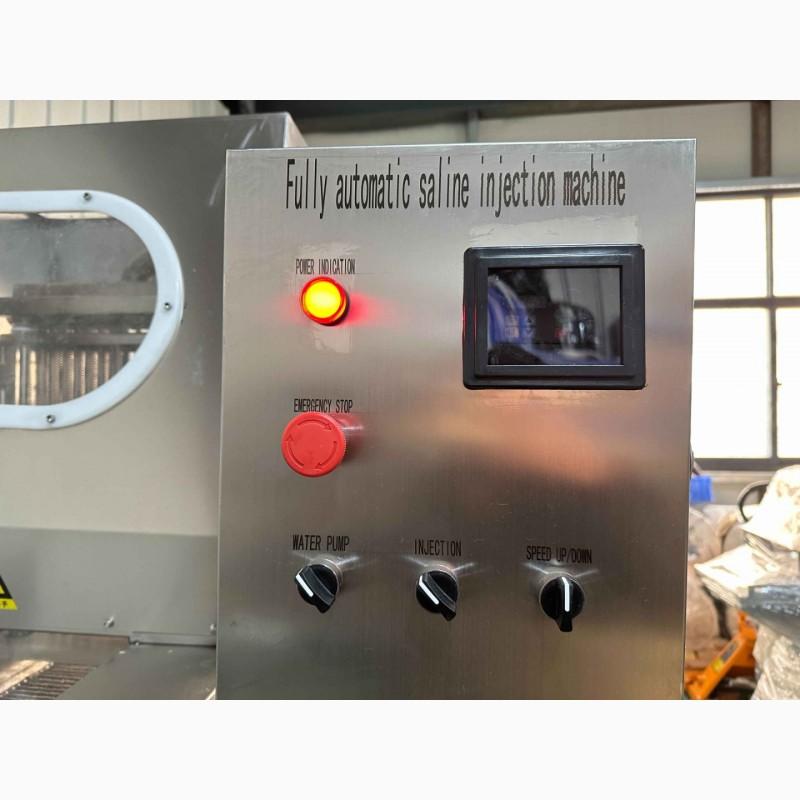

With the help of a frequency converter, the operator regulates and adjusts the required speed of the conveyor, as well as controls the volume of liquid in the filtration and supply tank.

Features:(//tractor-service.com)
Productivity: 300 kg/h
Dimensions: 1350*750*1650 mm
The width of the supply conveyor: 380 mm
Injection pressure: 0.45 - 0.9 MPa
Injection frequency: 40 - 70 m/min
Number of needles: 20 pcs.
Needle diameter: 3/4 mm.
Power: 4.1 kW
Voltage: 380 V
Material: stainless steel SUS 304
Weight: 250 kg
