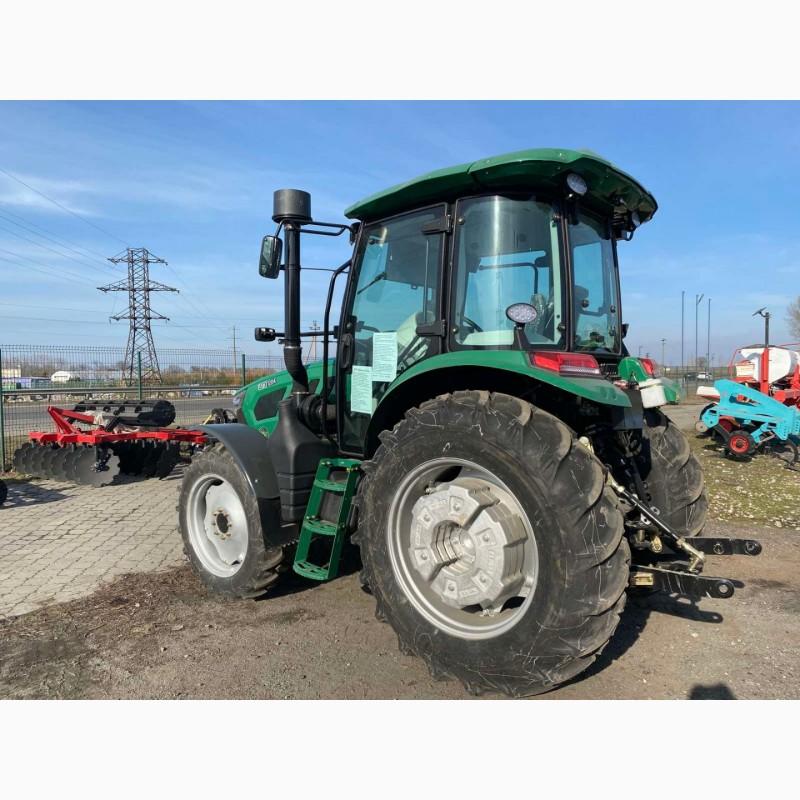

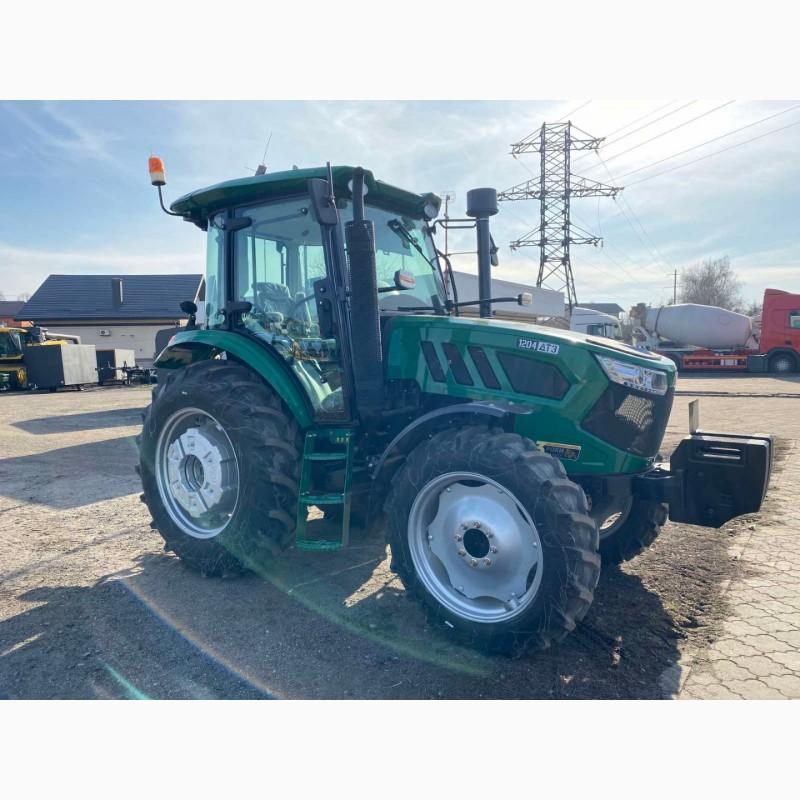

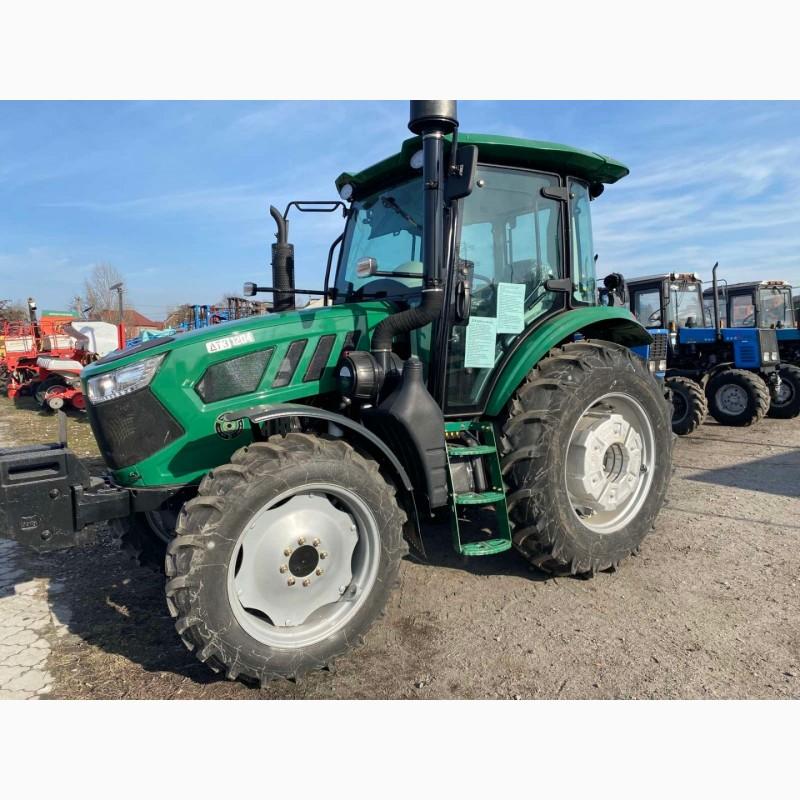

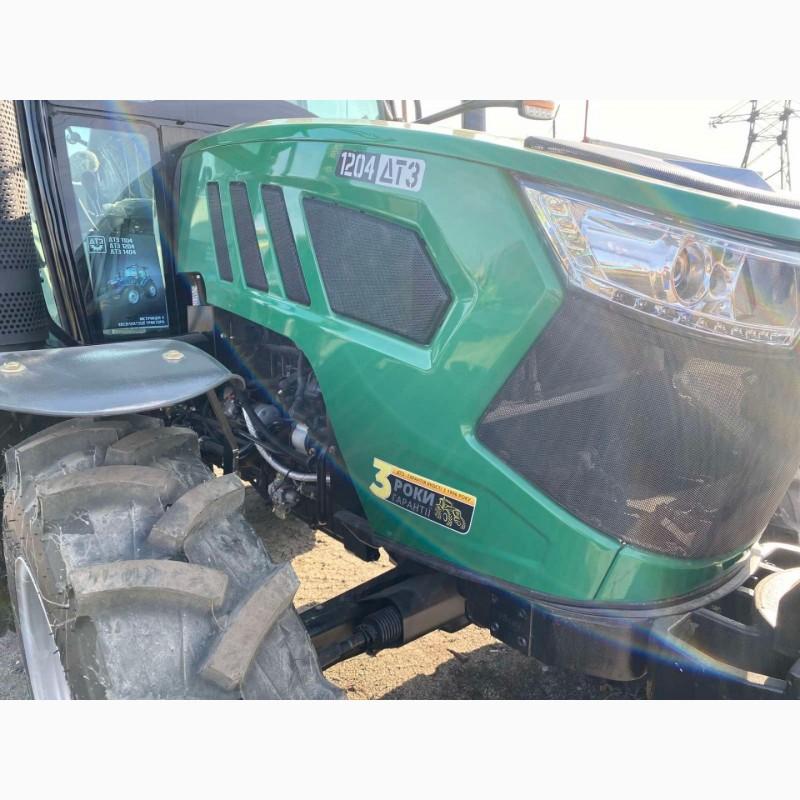

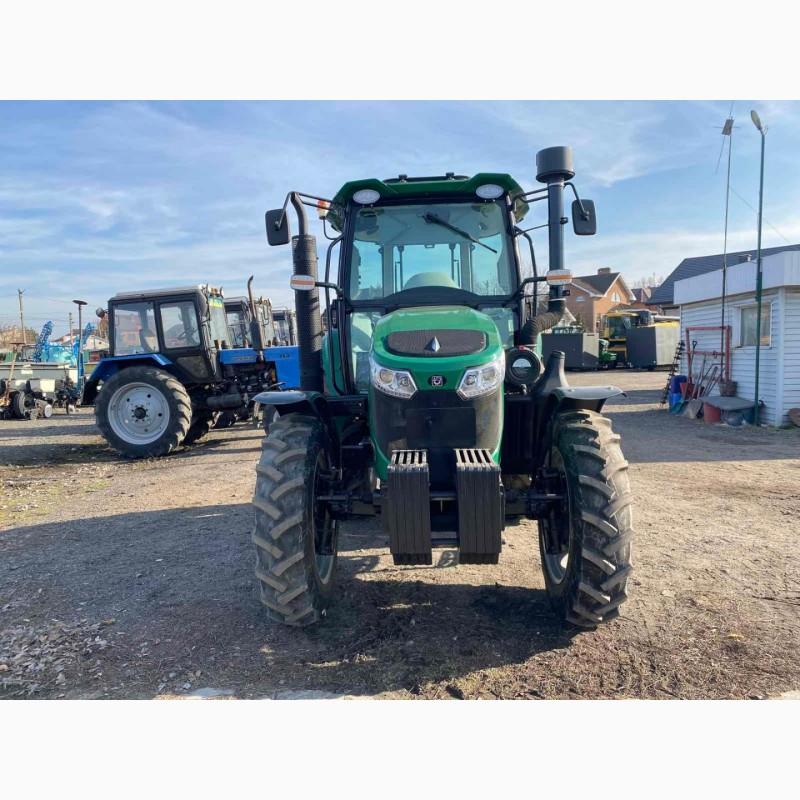

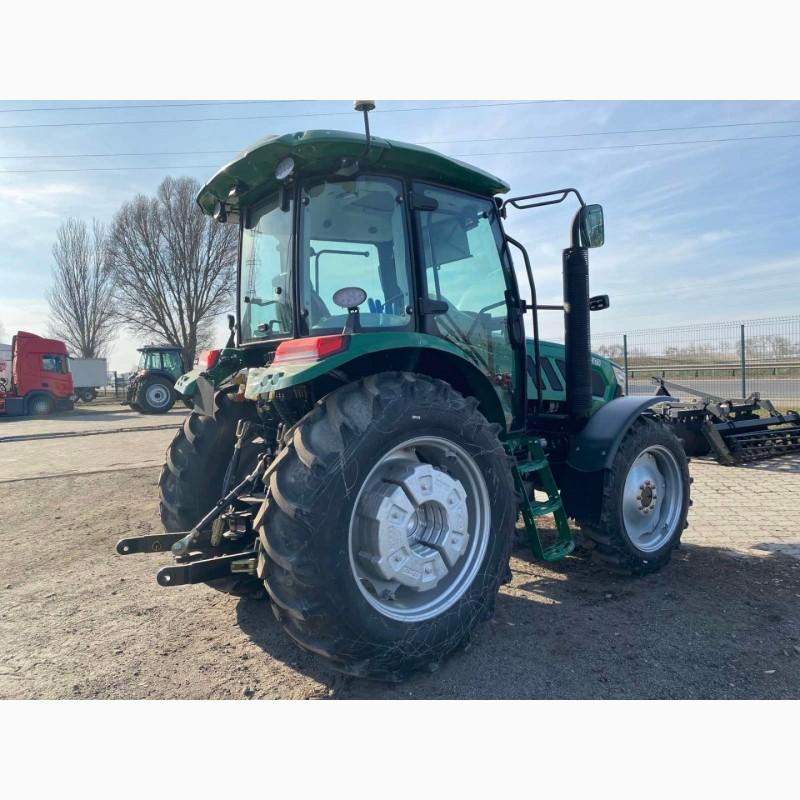

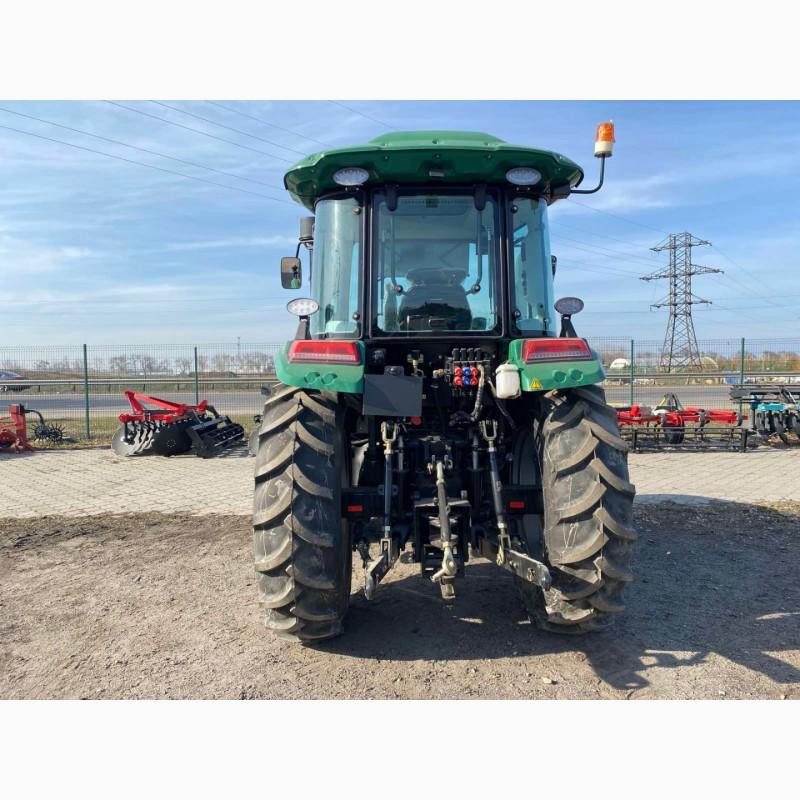

I will sell a tractor DTZ 1204 with 120 hp.
Tratora DTZ 1204 new, warranty 3 years or 1600 m.g.. Possible sale in Leasing. There is VAT.
Assembled in Dnipro, All spare parts available.
DTZ-1204 for 120 forces, Nominal power, k.s. 120
Wheel formula 4×4
The number of downshifts (12+12) × 2
Clutch Dry, two-disc, 12''
Nominal traction force, kN 23
Dimensions: L×W×H, mm 4325 × 1970 × 2938

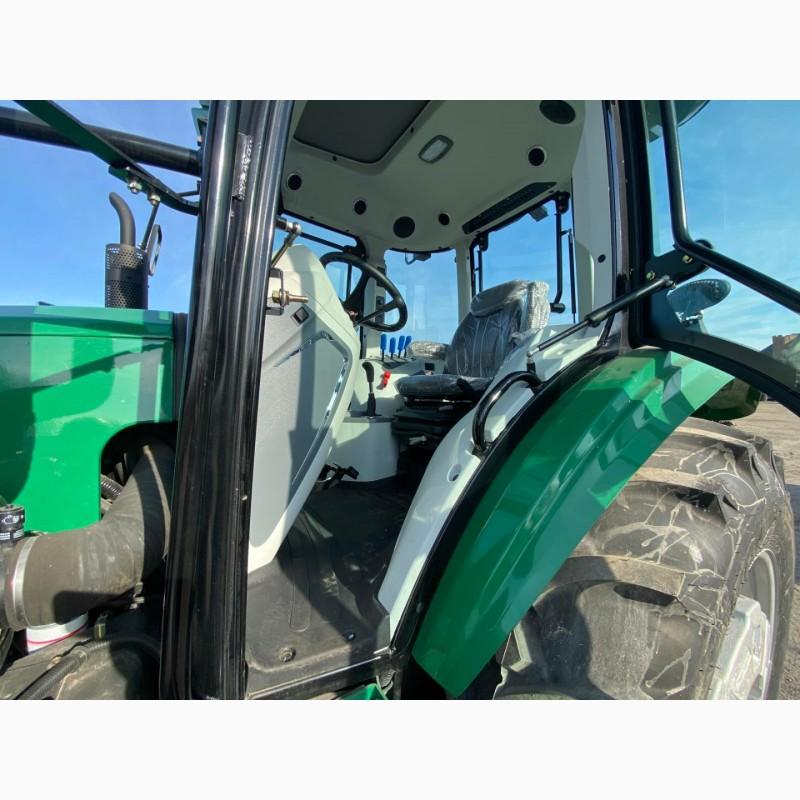

There is a cabin
Steering Hydraulic steering
Operating mass, kg 4650
*ENGINE
Engine model CF5F120-T-Q01F
Engine type 4-cylinder diesel engine, with water cooling, turbine and intercooler
Working volume, l 4.83
Nominal operating frequency of rotation, rpm 2300
Maximum torque, Nm 450
Cylinder diameter × piston stroke, mm 108×132
Specific fuel consumption, g/kW * h 235
Electronic power control System for controlling the multi-operation mode of engine operation
Fuel cleaning system Pre-cleaning filter and fine cleaning filter
Air filter 3-stage filter
Fuel tank volume, l 170
*TRANSMISSION, CHASSIS
Clutch Dry, two-disc, 12''
Gearbox Mechanical, reversible
The number of downshifts is (12+12) × 2
Synchronization of gear shifting IS
Front / rear
tires 11.2-28/16.9-34
(//tractor-service.com)
Wheel base / ground clearance, mm 1550/507
Working brakes Oil bath with hydraulic drive
Parking brake Mechanical
Trailer brake pneumatic drive with compressor E
Turning radius, m 4.3/4.8
Front counterweights, kg 300
Rear counterweights, kg 540

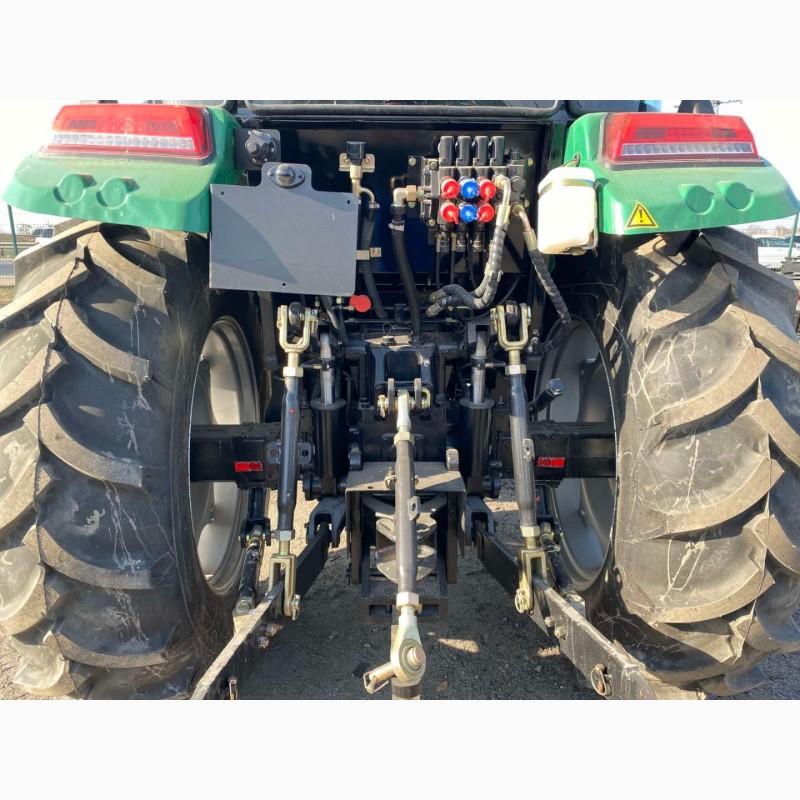

*HINGED SYSTEM
Attachment: type / category Class II, 3-point
Lifting force of the attachment, kg 2200
Number of hydraulic cylinders 2
Modes of operation of the hinge With forced lowering
Type of hydraulic system Separate
Hydraulic system productivity, l/min 33.49
Number of pairs of hydraulic outlets 3
GDP shanks 8 slots
Turn the power take-off shaft, rpm 540/1000
GDP power, kW 79
The type of towing device is
Pendulum traction bar E

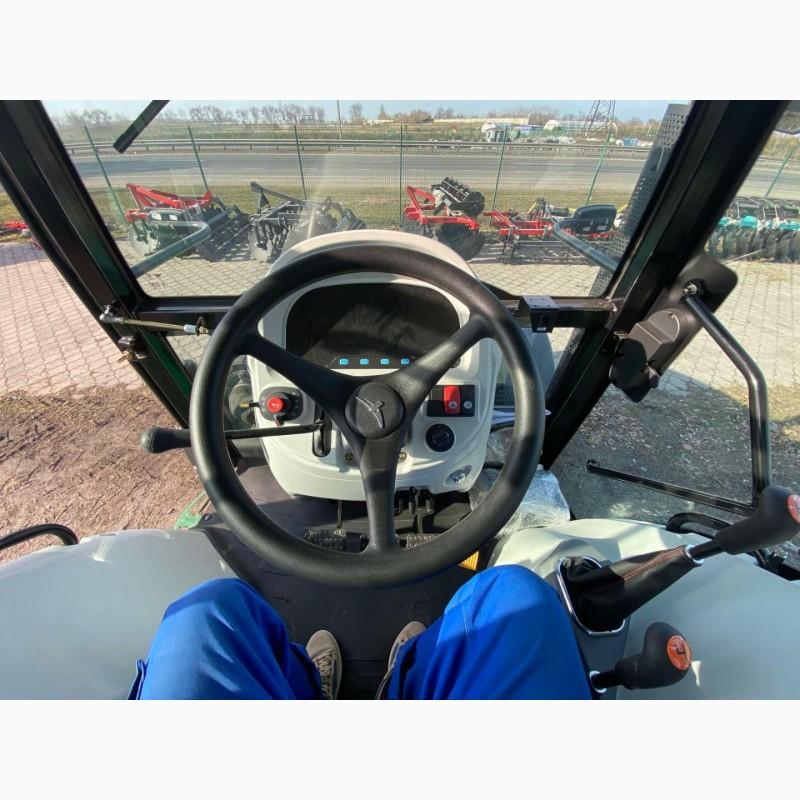

.ERGONOMICS, ELECTRICAL EQUIPMENT.
Noise level in the cabin, dB 73
Air filtration in the cabin Paper filters
There is an air conditioner and a heater.
There is a hatch in the roof.
Sun protection canopy E
There is a stereo system
Socket 12 V E
Lighting equipment Main headlights, taillights, taillights, front and rear turn signals
Other electrical equipment
