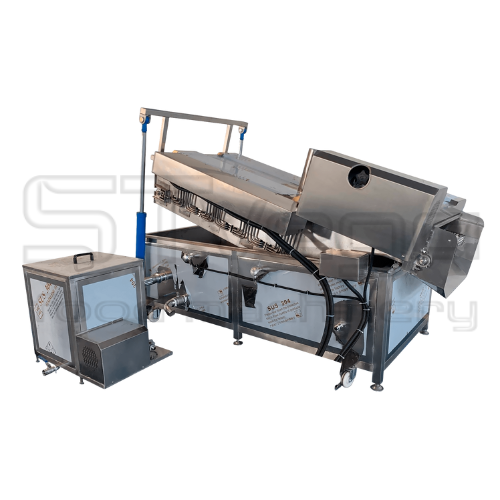

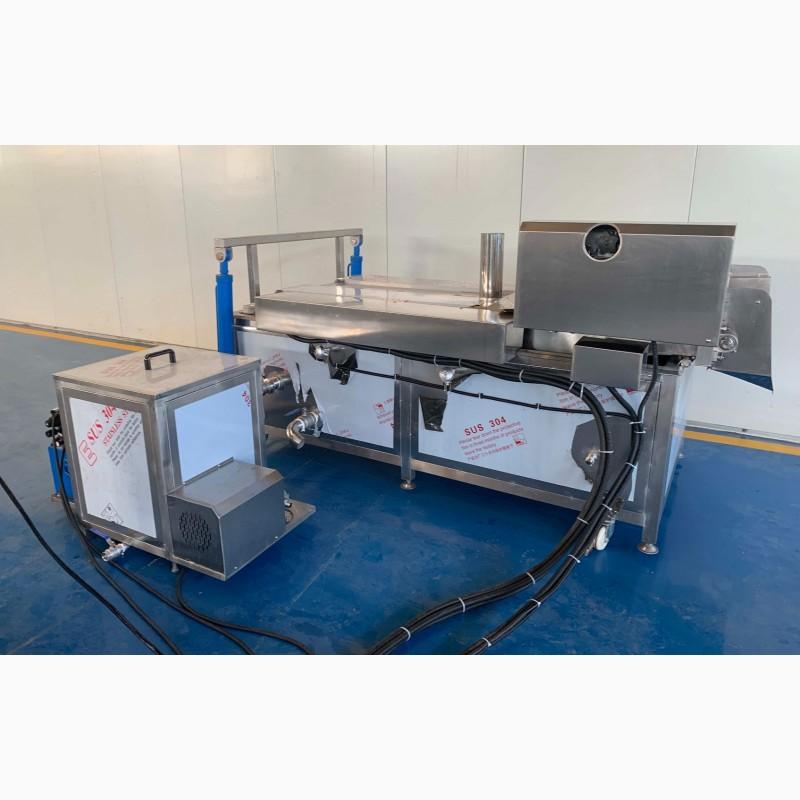

STvega DP H1700 industrial electric fryer with a lift, Kyiv

The STvega DP H1700 industrial fryer is designed for continuous frying of food products, performance depends on heat treatment time and bath length. Electricity is used as a heater (energy source for heatingoil). The equipment has a heat-insulating structure made of sandwich panels, and the length of the tub is made according to the required performance.

The speed of the transport belt, heat treatment time and oil temperature are controlled automatically, and the frying process is extremely simple and safe. Products fried on this equipment have a bright color, excellent taste and attractive aroma.

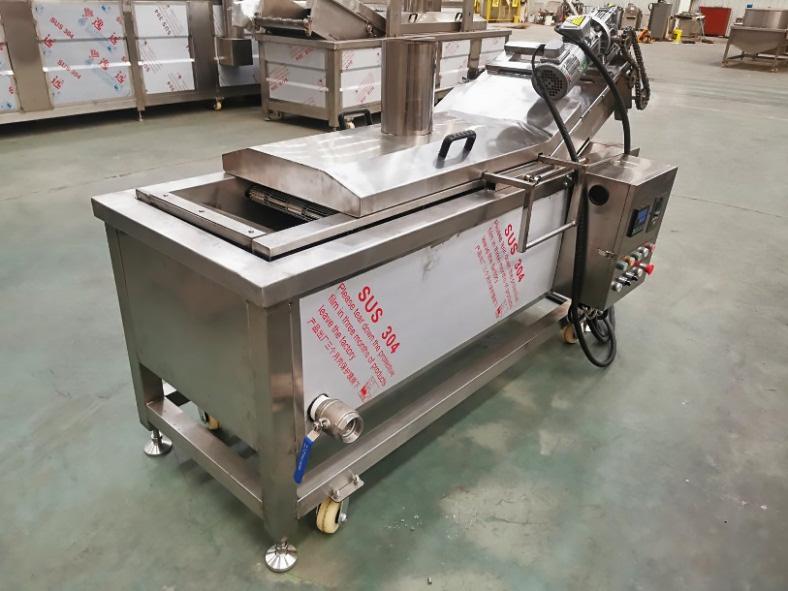

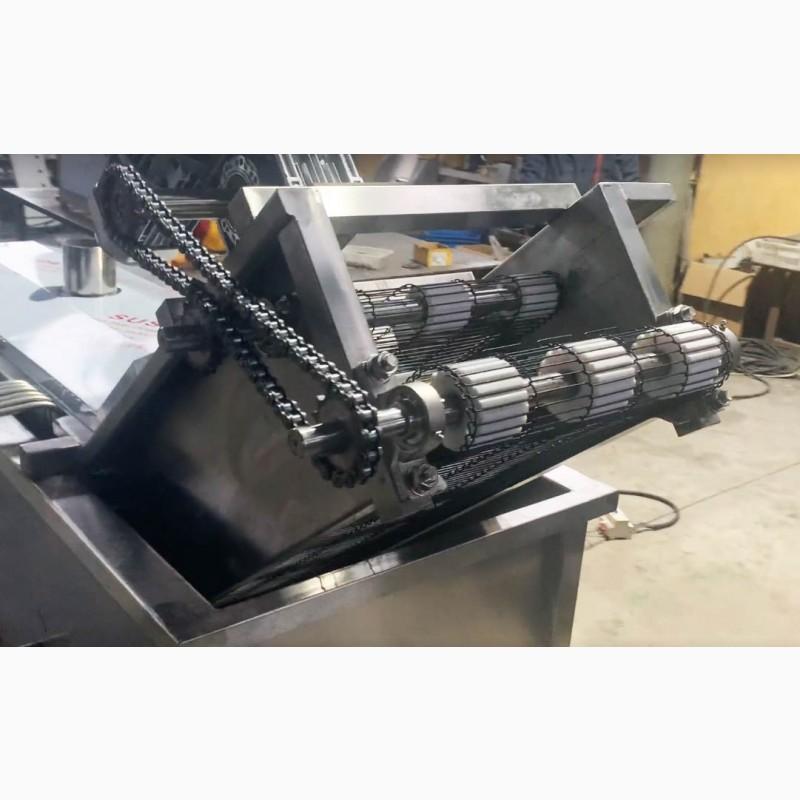

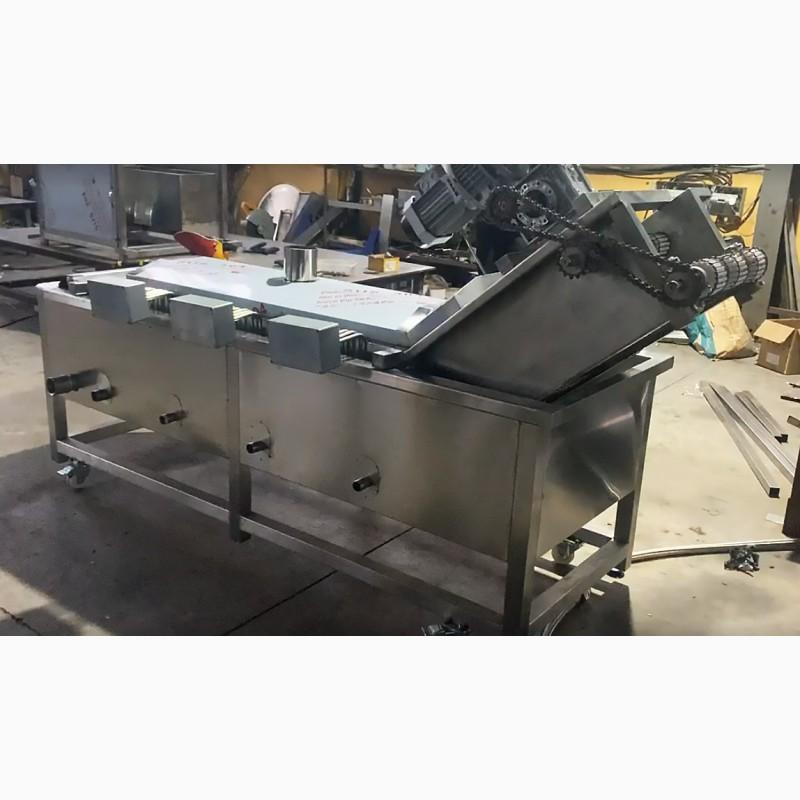

The machine consists of a transport mesh belt moving horizontally, a mesh belt lifting device, automatic oil temperature control systems, oil filtration, an electric heating system and other elements and units.

Principle of operation:

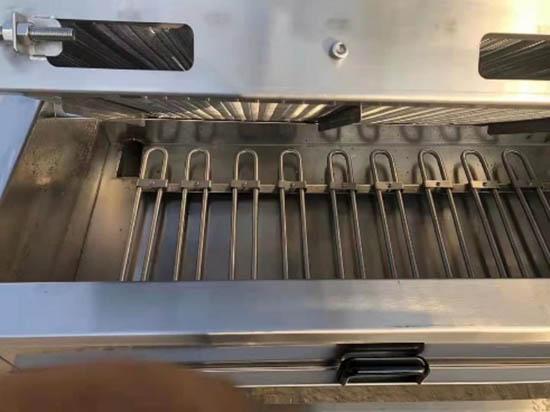

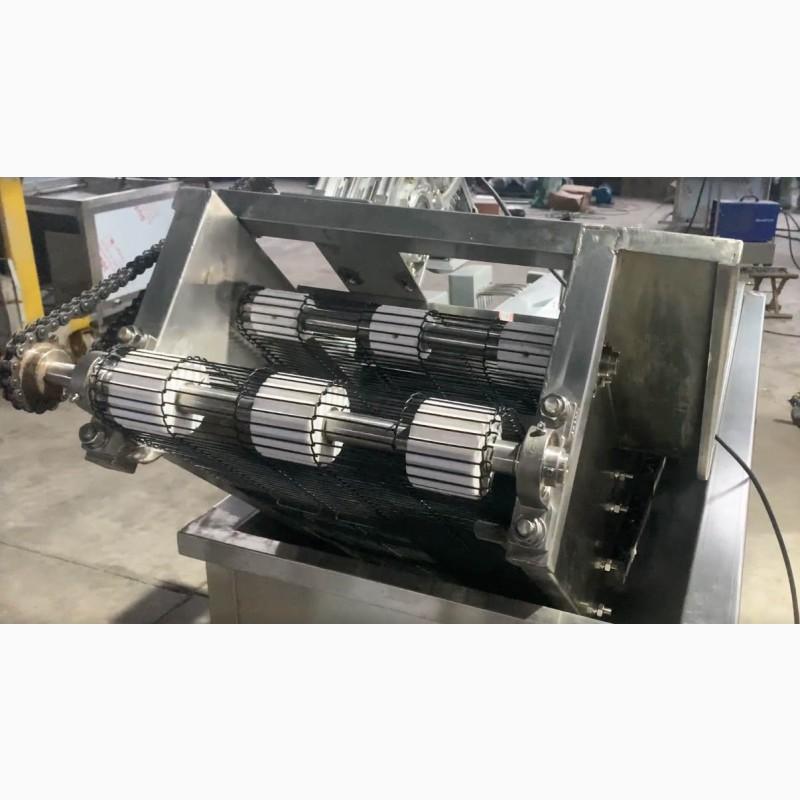

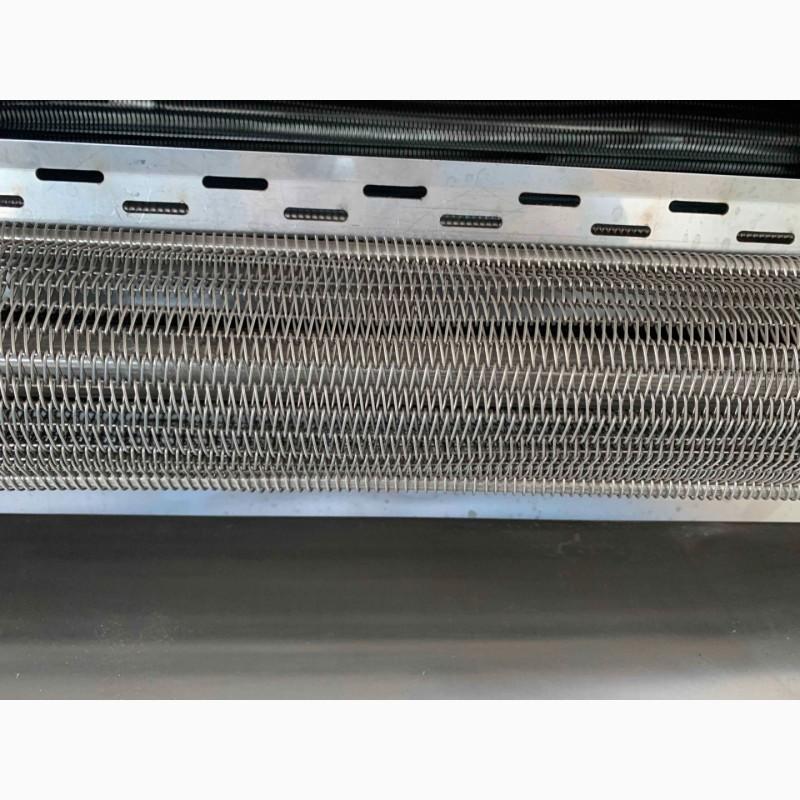

This machine uses the principle of continuous frying. After product is manually or automatically fed into the loading window, the roasting process begins as a conveyor belt of product passes through hotoil and then rises and discharges the finished product outside. The oil is heated in the main bath with the help of electric heating elements, then an automatic mesh belt conveyor system continuously moves the product through the bath of heated oil, in the process of which food products are thermally treated. The product is fried in oil very carefully, and the product does not float to the surface thanks to the clamping between the upper and lower two-layer mesh tapes.

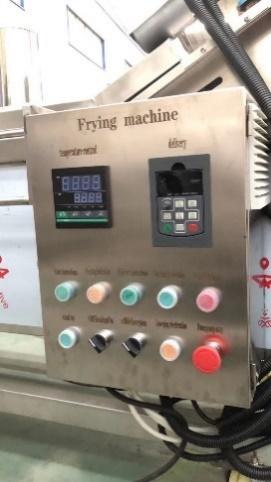

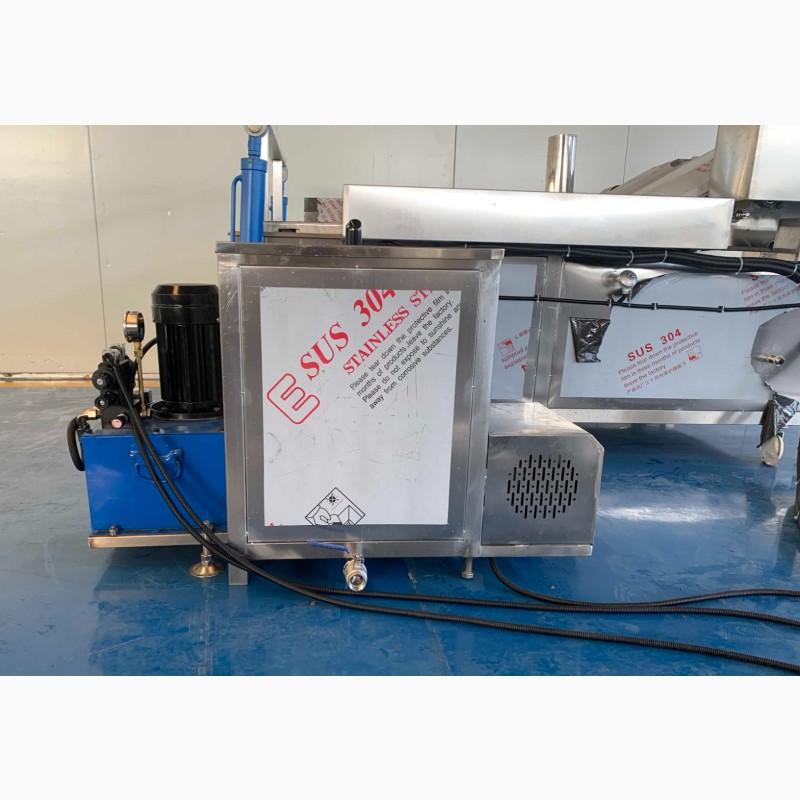

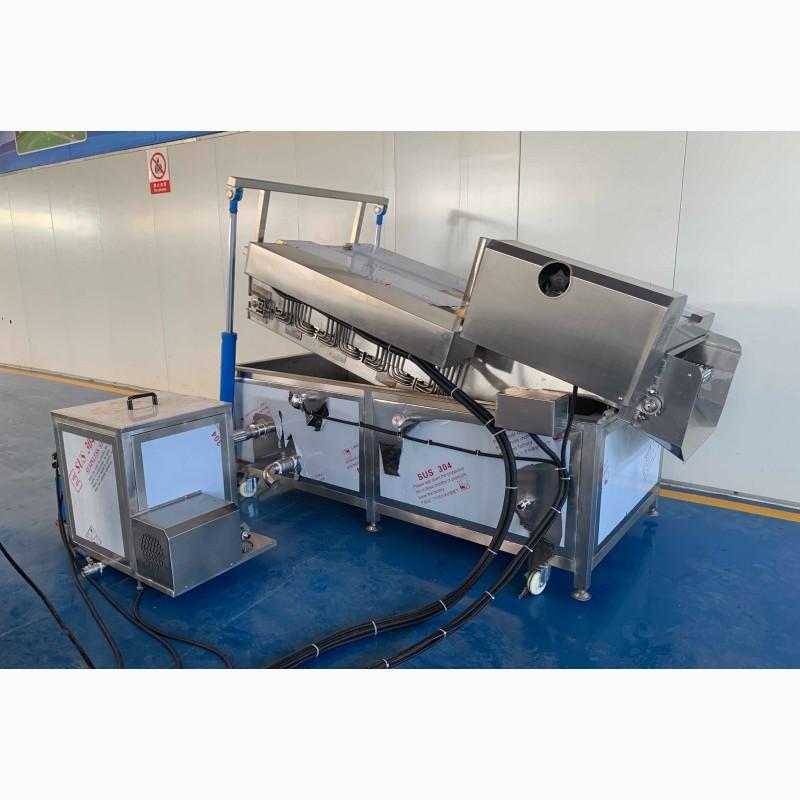

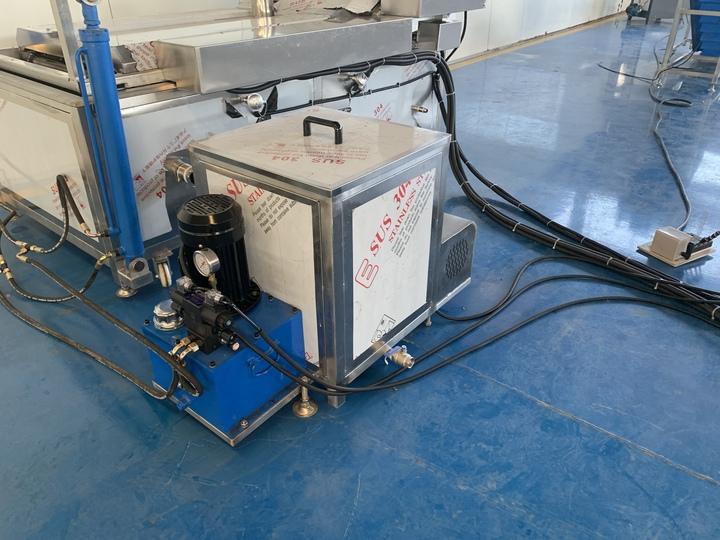

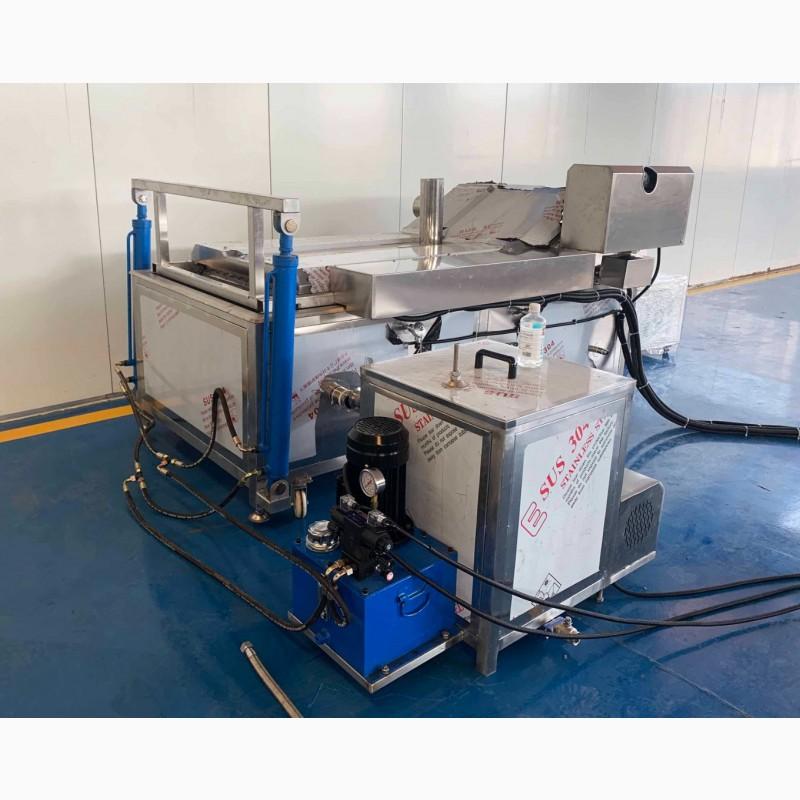

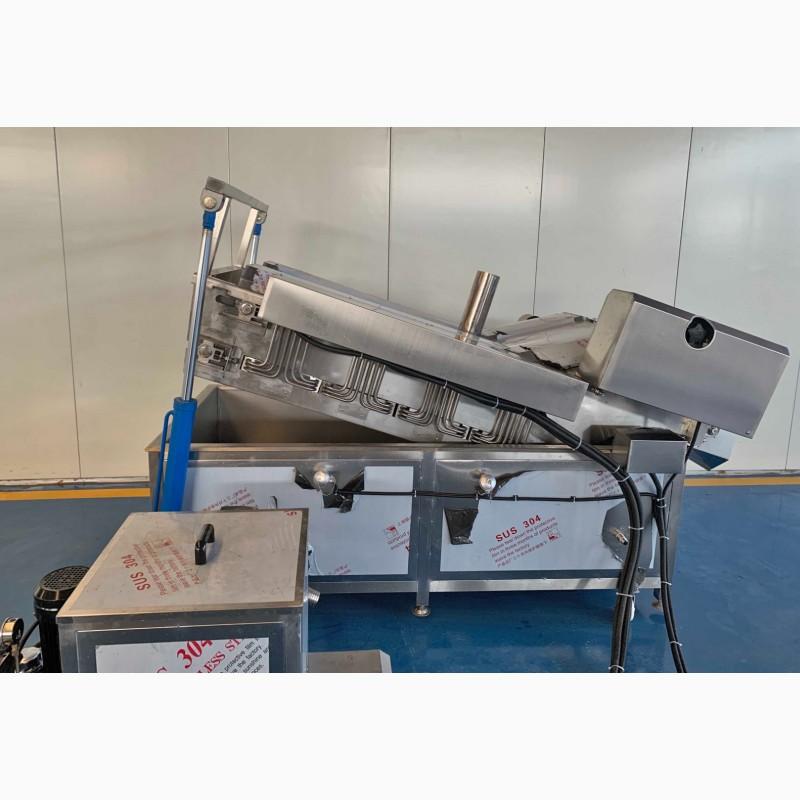

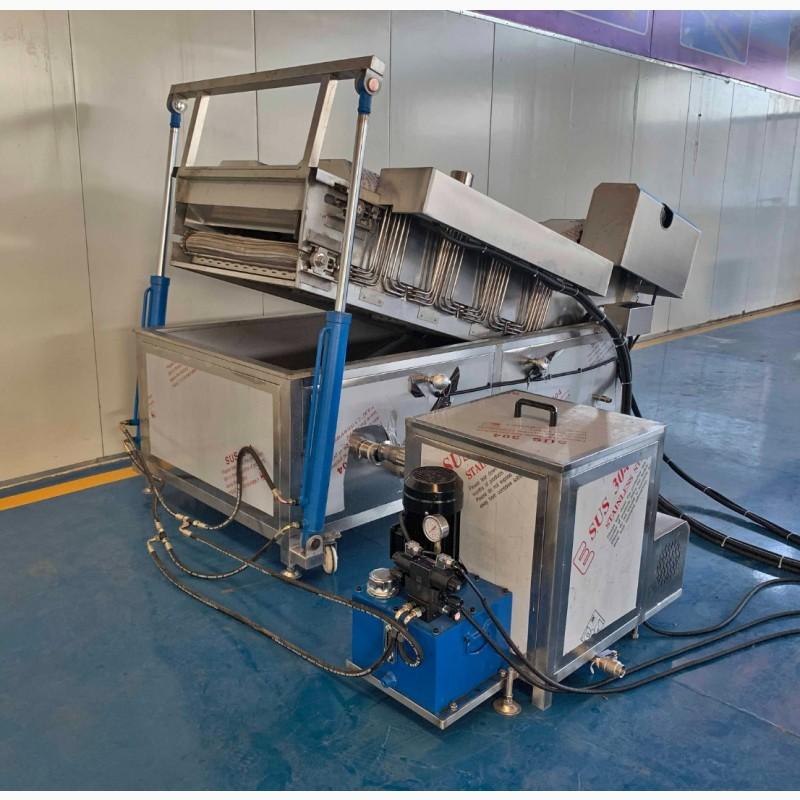

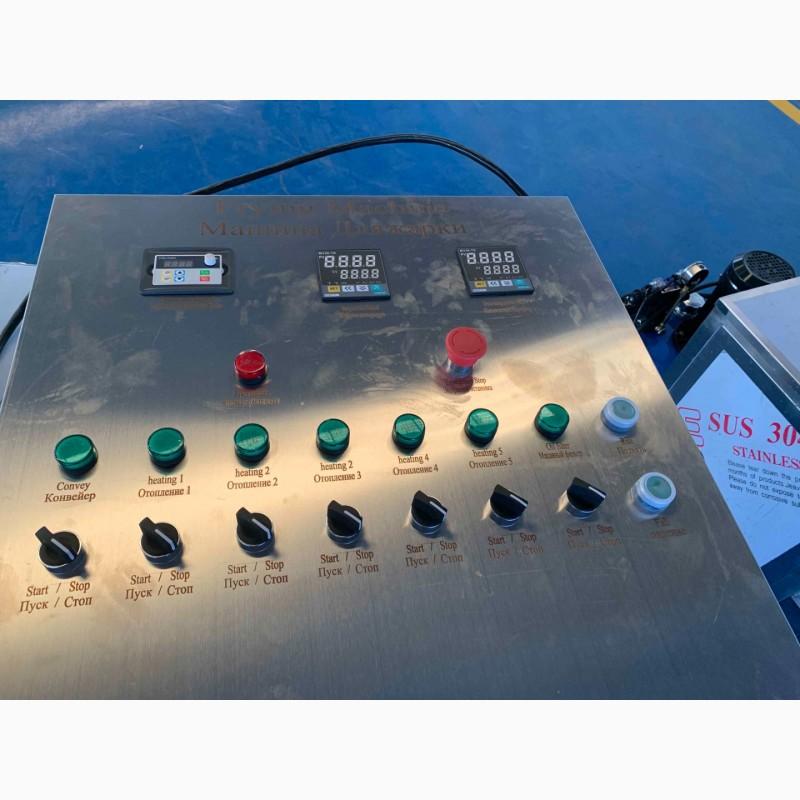

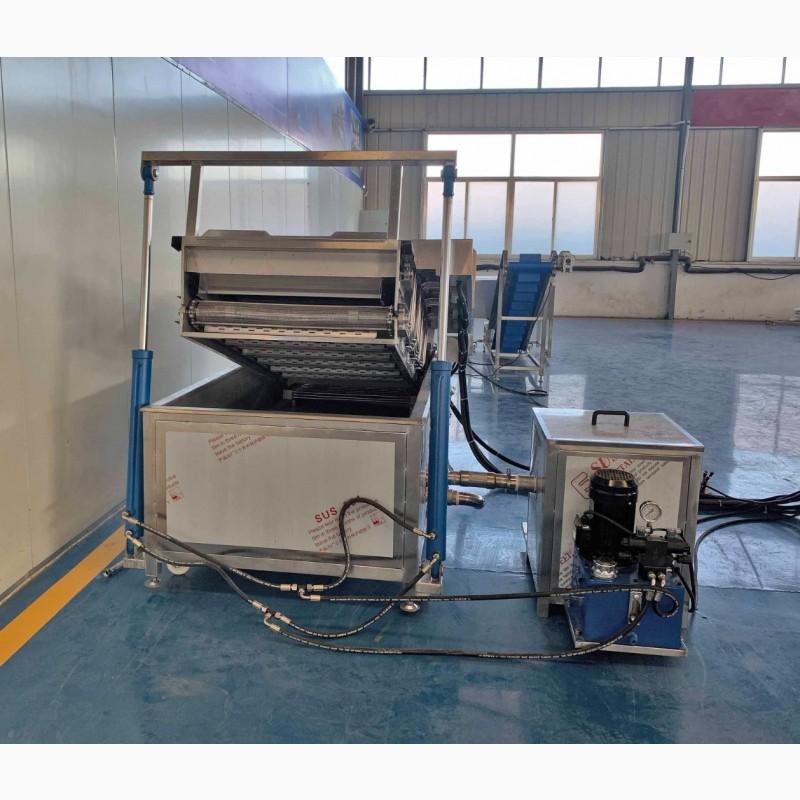

The operator adjusts the required oil temperature and frying time by adjusting the speed of the conveyor belt using a frequency converter. The mesh belt lifting system uses a pneumatic lifting method. The conveyor belt moves and lifts the product towards the discharge to the next stages of technological processing.

Note: A compressor is required for models with a lifting mechanism, it is not included in the price!

Features:
Dimensions: 1700*1050*1420 mm(//tractor-service.com)
Dimensions of the internal bath: 1700*800*560 mm
Heating temperature: 25 - 200 °С
Time of passage of the product: 2 - 15 min (adjustable)
Type of heating: electric
Power: 60 kW
Voltage: 400 V
Weight: 290 kg

Note: There are also fryers with other bath length dimensions - 2000 and 2500 mm.
