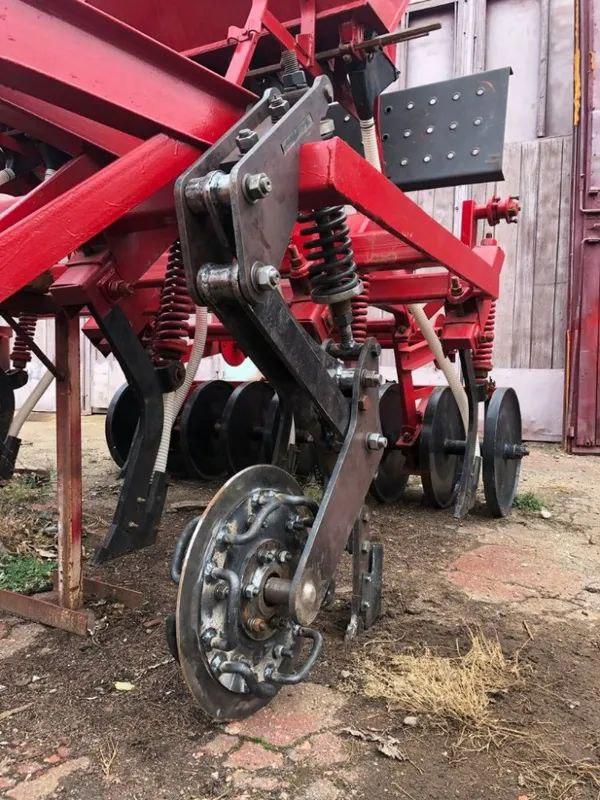

Висіваюча секція А-03А власного виробництва. (Сошник анкерний А-03), Днепропетровская обл.

sell the sowing sections A-03A of our own production. (A-03 coulter) on a parallelogram suspension.
It is assigned to install the SPS-2,1 (STS-2) and SKP-2,1 and their modifications instead of racks with shooting paws and anchor coulters A-04, directly on the frame with a pipe with a cross section of 80x80 mm. Section A-03 has its own mounting bracket and parallelogram suspension equipped with highly resource polymer bearings that do not require lubrication throughout the life. The axes of the hinge of the suspension are made of structural steel of Article 45, which increases the life of the life. The sowing section of the 60C2A spring steel is designed to ensure the rowing effort is not more than 30 to 150 kgf and has a mechanism for regulating effort.
= The coulter suspension is equipped with a disk knife made of steel Article 65g, which cuts the crop residues and roots of plants located in the surface layer of soil. The suspension rod consists of a two -row ball closed non -servicing bearing, a locking ring, a shaft, etc. On one hub with a disk, the fasteners are fixed, which perform three functions: the first - by rolled on the soil surface, provide copying of the microrelief of the field, the second - pressing the crop residues, facilitating their cutting and the third - creates compression stresses in the surface layer of the soil. The rebounds are made in the form of brackets that prevents the soil on them.
The anchor coulter, which is mounted on the A-03 Sections, is intended for living spaces with an external diameter of 32 mm. The seeds are clamped by the fastener between the two stamped plates that form the socket for the exit of the seeds into the soil, the distance between these plates at the output is 12 mm. The working nozzle part of the anchor coulter is protected by a plate made of solid alloy on the basis of carbide tungsten and cobalt, the width of the plate 18 mm. The plate has a much higher durability than hardened steel and a rooted solid alloy type "Soil".
Following the seeding section, it is possible to install= wheel of finger 305x80 mm. The wheel is completely steel. Periphery wheels its working part resembles a "Christmas tree", and a trail of it - a chicken footprint (some imported analogues are called Chiken Tracker). The peculiarity of the wheel is that the supporting surfaces of the wheel have a small spot of contact with the soil, although in aggregate the wheel has a good support area. The "ripe" soil on the wheel practically does not stick. When working on high humidity soils, it is recommended to install a wheel clean. With the help of cleaning the wheel is well cleaned unlike wheels with a rubber bandage, in which cleaning is often observed jamming of soil with plant residues between cleaning and tire, and braking the wheel.
= In this case, the individual wheel performs both the function of copying the microrelief of the field, ensuring the uniform course of the coulter at the established depth, and the function of rolling with the given effort laid by the coulter seeds in the row.
= You can also change the rolling efforts at the same time at all sections by lifting or lowering the seed drill frame.
The depth of seed wrapping is adjustable in the range of 1 to 10 cm changes in the position of the wheel, which is rolled up with the arches of the anchor coulter in the vertical plane. You can adjust the depth of seed wrapping by moving the wheel into one of ten holes located in 1 cm
Features and Benefits A-03:
Set on the seed drill.
Polymer hinge bearings.
High durability of the working part of the coulter. High uniformity of seeding in depth.
Висока рівномірність закладення насіння по глибині.
Narrow working part allows less to open the groove.
Ступиця колеса, що прикочує на радіальних закритих підшипниках, захищених від попадання пилу і бруду подвійним манжетним ущільненням. (// tractor-service.com)
Не потребує обслуговування.
Specifications A-03A:
The coulter is mounted on a frame from a focker 80x80 mm.
The depth of sowing seeds is regulated in the range of 0 ... 10 cm - 10 provisions (after 1 cm)
= Course Course when copying in a vertical plane 180 mm.
The anchorage width is 16 mm.
The diameter of the hole under the colecide 32 mm.
Exit width for seeds from the coulter 12 mm.
Disk knife 406x5 mm
The Red of Disk Knife 320x60 mm
Copy mechanism effort (on a disc knife) up to 270 kgf
The finger wheel is 305x80 mm.
Stone Protection: Cut Bolt
Зусилля прикочування (на колесі, що прикочує) до 90 кГс
A rod of a wheel, whol rolls on Radial Closed Bearings, Protected from Dust and Dirt with a Double Cuff. The price is negotiable, the form of payment is possible, including from VAT on non -cash account.цільнолита гума) 305х25 мм
Ціна договірна,форма оплати можлива люба,в тому числі з ПДВ по безготівковому рахунку.
