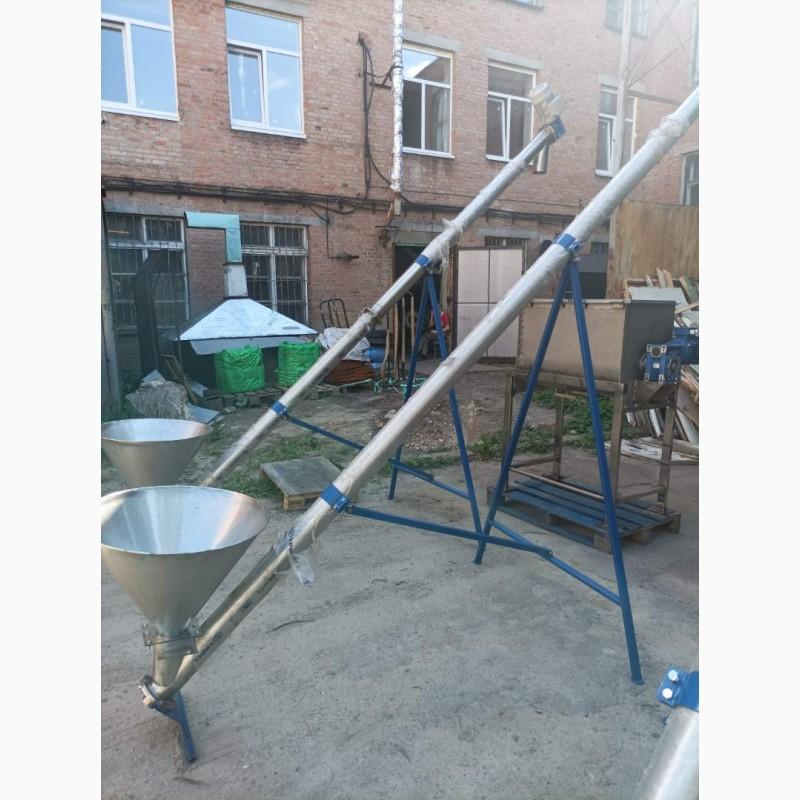

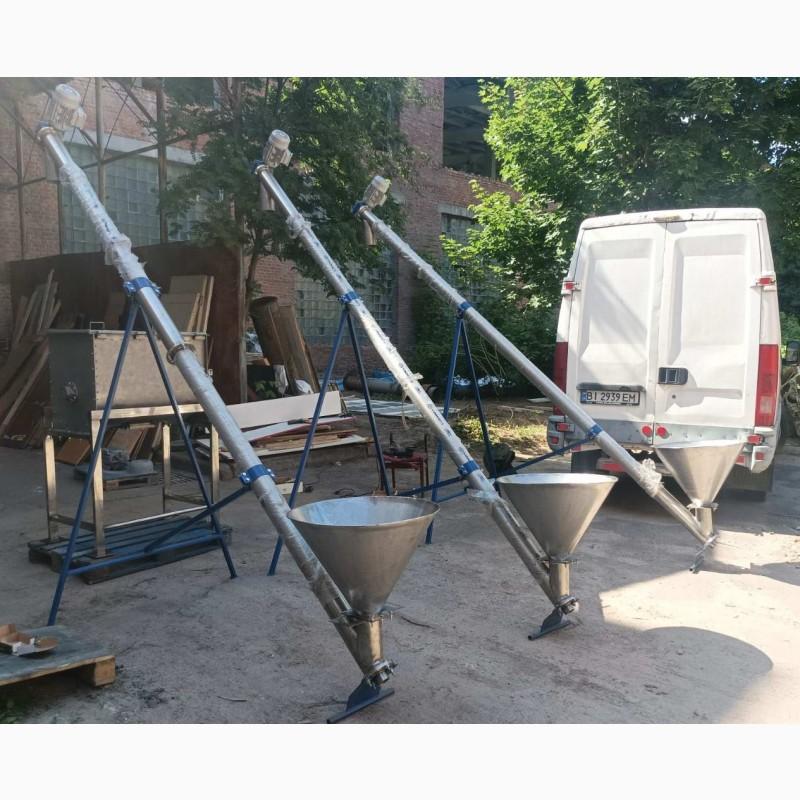

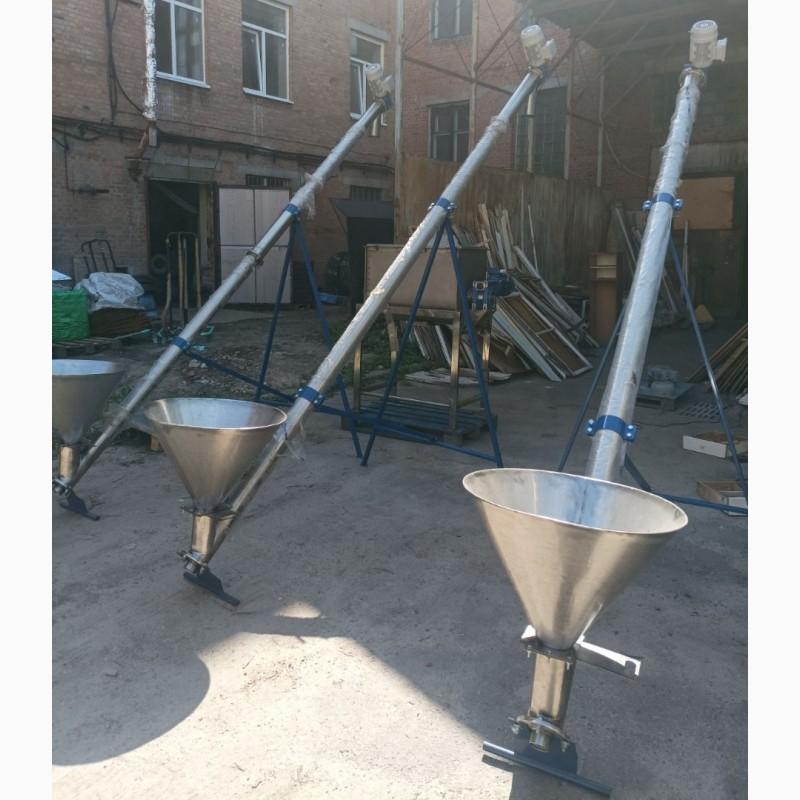

Промислові гвинтові шнекові конвеєри в трубі з нержавіючої сталі D200 L8000. 15т.год, Закарпатская обл.

= Bioecope of the GC represents the tubular conveyor D200 L8000, designed for efficient and reliable transportation of various bulk materials in food, chemical, pharmaceutical and other industries. Specifications:

Технічні характеристики:

Purpose, type of auger: in the pipe
Length: 8 meters
Productivity: +/- 15 t/h
Diameter No a screw conveyor: 200 мм
= The power of the motor-reduction motor, kW, NMRV: +/- 5.5 kW, 380V
= Auger rotation per minute: 95 rpm
Material: stainless steel AISI 304
Pipe wall thickness: 3 mm
The thickness of the coil: 3 mm
Main pipe, wall: 48 mm, wall 4 mm
Dimensional hopper: 400*400 mm
Auger slope: partially adjustable
Removable screw cover with retainers: no
Frame (frame, rack): carbon painted steel
Drainage crane: no
Protective mesh: yes
Starting machine: Yes
Protective casing of AISI 304 Motor Reductor: Yes
Supporting Base: Optional (// tractor-service.com)
= Tilt and Tilting Control System: Additionally
Washing System: Additionally
Three work screw screws
Bearings, manufacturer: EU
Reductor motor, manufacturer: China
The bearing bush with seal: own production
Advantages:

High performance: up to 15 tons per hour.
Reliability and durability: made of high quality stainless steel AISI 304.
= Efficiency: Provides rapid and continuous transportation of bulk materials.
Versatility: Suitable for a wide range of materials in different industries.
Security: Protective mesh and start -up machine guarantee safe operation.
= Hygienic: Stainless steel is easily washed and disinfected.
Adaptability: the possibility of additional equipment with a support base, the system of assembly and adjustment of inclination, the system of washing.
= Actually production of bearing bushings with seal: quality guarantee and reliability.
= Bioecope of the HA is:

Ukrainian manufacturer with many years of experience.
Individual approach to each order.
High product quality and competitive prices.
Warranty and post -warranty service.
Contact us for the advice and order of a tubular auger conveyor!
