Connecting Rod Armored Master 10/14 Ø 8, 6 Mm, Kharkiv region.

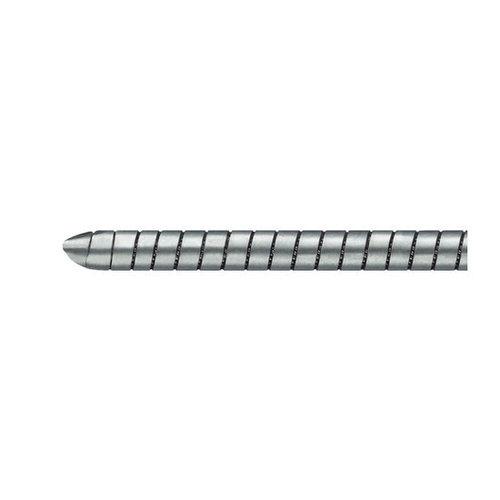

!!!!The Master 10/14 rod (rope) is a piece of special rope Ø 8.6 mm with or without a separate end cap, the length of which depends on the width of the connected conveyor belt tapes.

Connecting rod Master 10/14 - very responsible element of the butt connection. The strength and design of the original connecting rods provide the best operational performance.

​(//tractor-service.com)
Master 10/14 connectors are supplied without rods or in sets with a K20 connecting rod for the width of the conveyor belt 1000 mm, 1200 mm, 1400, 1600 mm. They are pressed into the ends of the joined tapes with the help of a special impact device Master 130.PS, after which both parts of the joint are connected according to the "zipper lock" principle, i.e. the staples of one end of the tape are placed between the staples of the other, and a connecting rod is inserted into the loops.
Please note that the length of the Master 10/14 connecting rod with welded ends is always less than the width of the connecting tape.

We supply Master 10/14 connecting cable both for the width of the conveyor belt and in multiples of 1 meter - 10 m.p. each. or 20 m.p.
We do not recommend replacing the Master 10/14 connecting rods with ordinary cables of a suitable diameter, because they may not have the same structure, strength, flexibility as spec.
