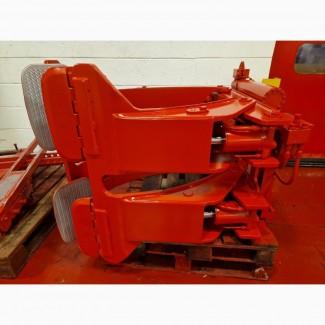

Meyer type roll gripper 5-2232G-16A 3rd class of 2017 1600 mm opening, Kyiv

In excellent working condition.
Gripper for rolls Meyer Type 5-2232G-16A 3 class 2017 year 1600 mm opening. 360-degree rotation, load capacity 2800 kg with a center of gravity of 800 mm, paw opening range / roll diameter 250-1600 mm.
The size of the contact plates is 2 x 400 mm.
The width of the contact plates is 240 mm.
Short paw - hydraulic
Carriage class ISO3А
Number of additional hydraulic functions: 2(//tractor-service.com)
incl.hoses and connections
The thickness of the device is 207 mm [V]
The center of gravity of the device is approx. 326mm [ESP]
Weight approx. 865 kg
Sale.
Warranty.
Options.
