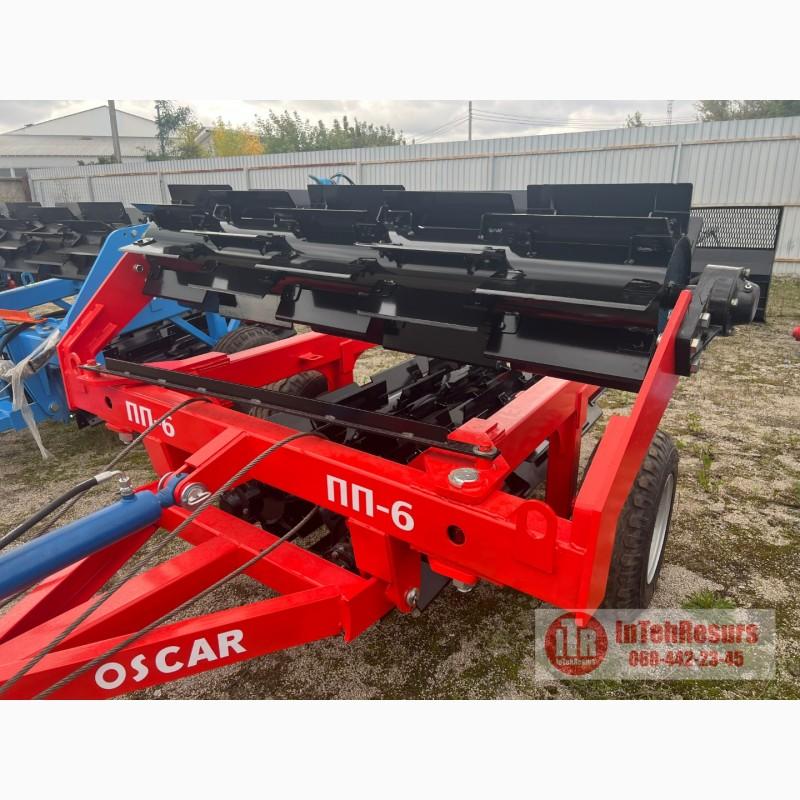

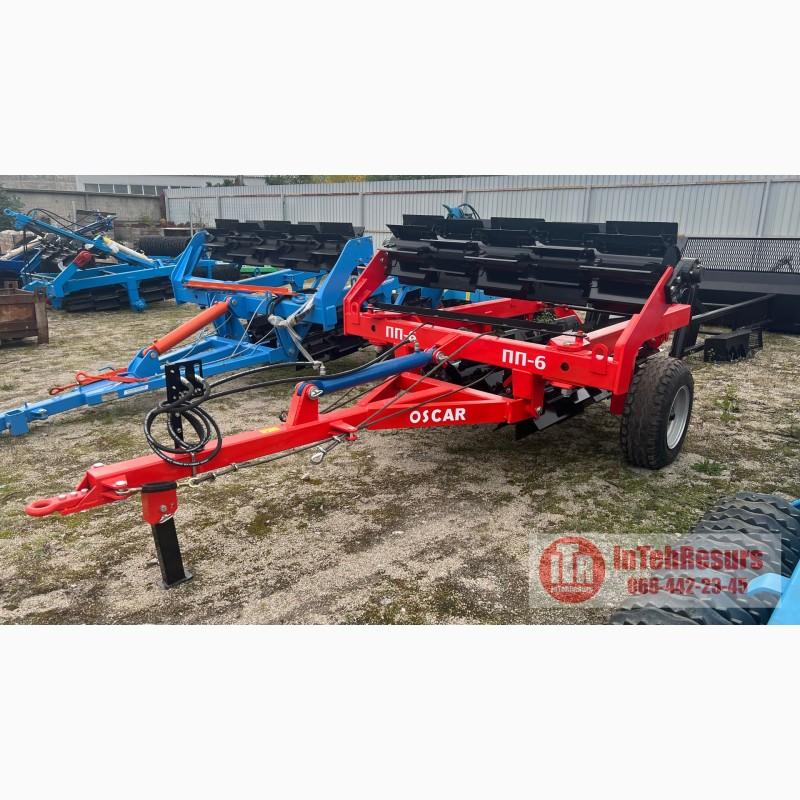

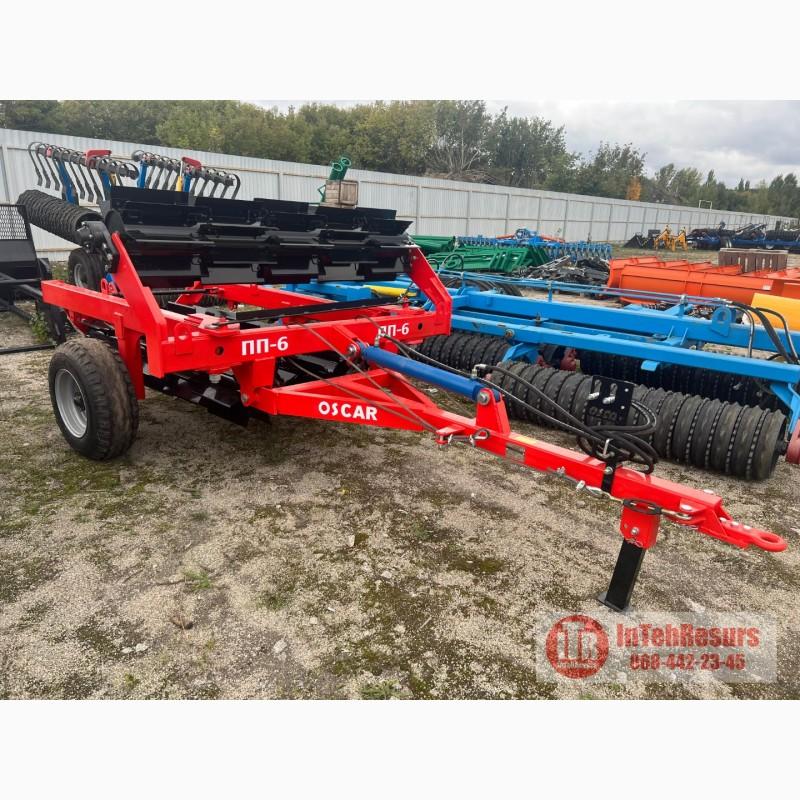

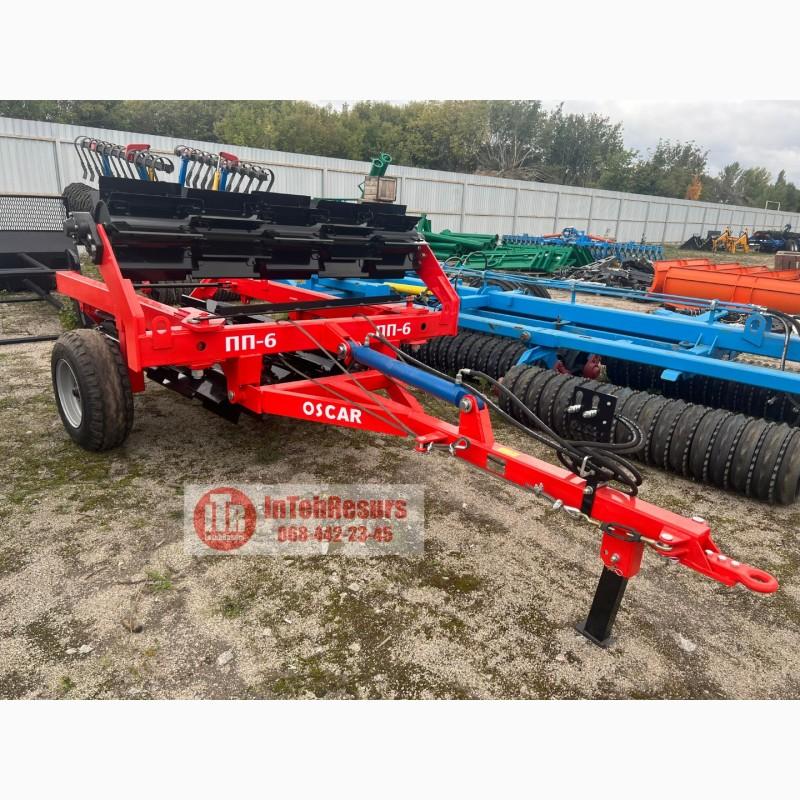

Roller chopper Oscar PP-6, Dnipropetrovsk region.

Trailed shredder OSCAR PP-6, specially designed for grinding vegetablesunflower residues,corn, stubble, leveling and partial mulching of the soil surface.
1. Type - trailer.
2. Productivity - 7.2-9.5 ha/h
3. Working speed - 10-15 km/h
4. Transport speed - 20 km/h
5. Working width of capture - 6 m
6. Processing depth - 8 cm
7. The diameter of the grinding drum with knives is 515 mm
8. Shaft diameter - 60 mm
9. The diameter of the drum tube is 273 mm (competitors use 220 or 230)(//tractor-service.com)
9. Aggregated with atractor capacity - from 80 hp.
10. Water roller (110 liters in each drum)
11. Powder coating of the frame and individual elements.
12. Knife material Steel 65G or Steel 45
13. The thickness of the knife is 8 mm.
14. Number of knives - 120 pcs.
15. The knife is located at an angle, which significantly improves the performance characteristics.
16. It is possible to perform both with equal knives and with knives in a checkerboard order.

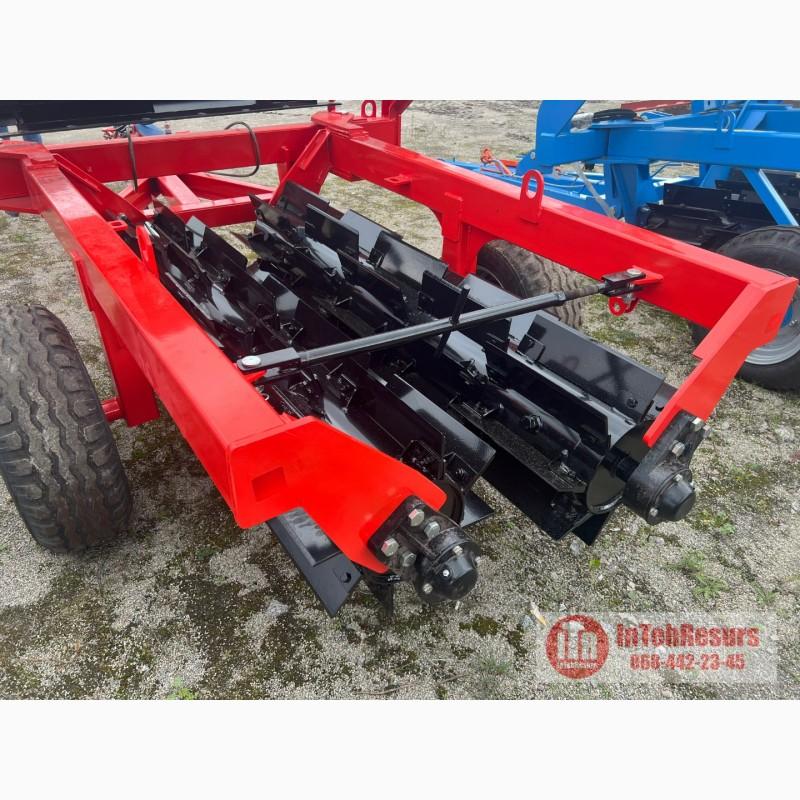

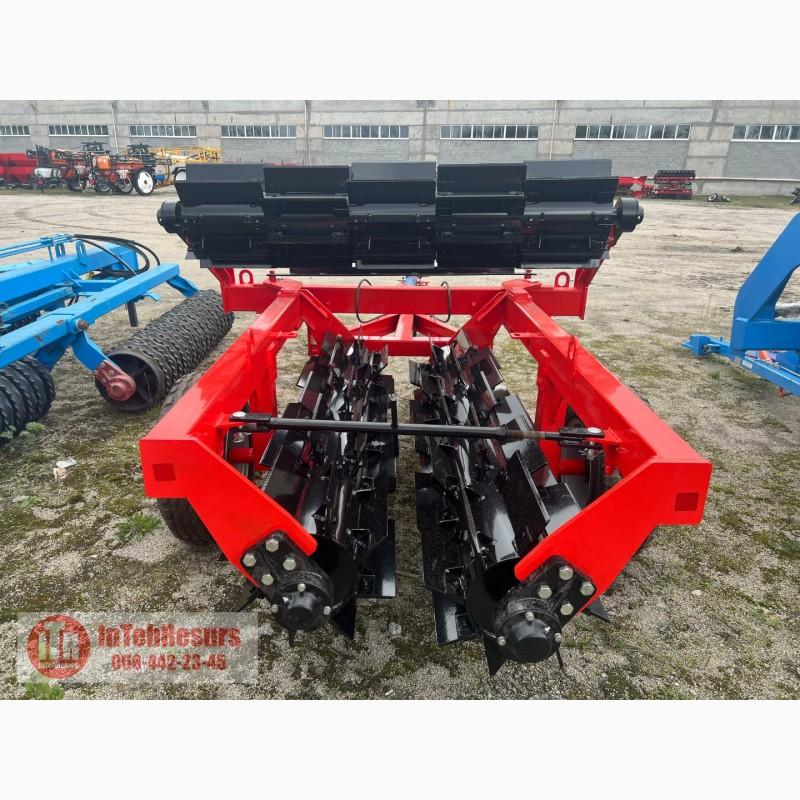

Among the main features of the roller, the mounting shaft passes through the entire drum and is made in one piece.
Thanks to this, it is easier to center the rollers, and in the future during operation, the shock loads on the bearings are much smaller than those of competitors.
