Sanden compressor solenoid: SD6C12, SD7C16, SD7V12 CITROEN PEUGEOT, Kyiv

Sanden compressor electromagnet: SD6C12, SD7C16, SD7V12 - Your reliable choice for air conditioner repair!

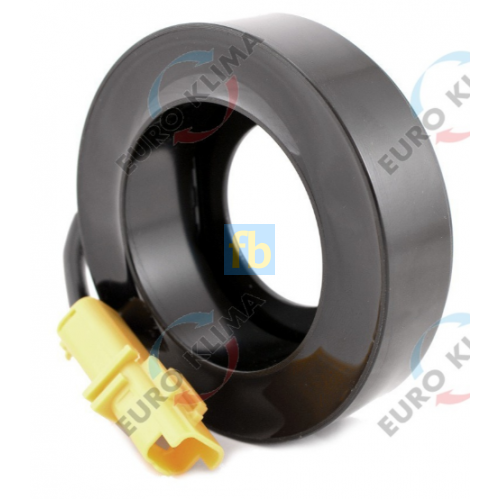

An electromagnetic coil is a device that is activated when an electrical voltage is applied to it and attracts a pressure plate connected to the compressor shaft through a splined connection. Thus, the solenoid coil controls the engagement of the pulley with the compressor shaft as it starts the car's air conditioning system.

Features:

Manufacturer: Euroklima
Inner diameter: 61 mm
Outer diameter: 96 mm
Height: 27 mm
Seat: 45 mm
Voltage: 12 V

Used on compressors:

Sanden: SD6C12, SD7C16, SD7V12

Suitable for cars:
(//tractor-service.com)
CITROEN
PEUGEOT

Original numbers of manufacturers of spare parts:
CC204, KTT030003.

The electromagnet is often the cause of the breakdown of the air conditioner, so the correct diagnosis of its operation is extremely important when detecting malfunctions in the air conditioner.

How to determine that the electromagnet does not work?

This can be done using a tester. The resistance at 12 V should be approximately 3-4 Ohms, and at 24 - much higher, about 6-12 Ohms. If the resistance does not correspond to these values or is absent at all, then the electromagnetic coil does not work and needs to be replaced.

Reasons for failure:

Overheating – caused by a worn pulley bearing, slipping of the pulley and pressure plate.

Incorrect installation by the master installer (for example, mixing up the positive and negative connections).

Do not miss the opportunity to purchase a quality and reliable spare part for your air conditioner! Order the Sanden compressor solenoid today and enjoy the coolness in your car!
