Straw shredder industrial, electric, 3500 kg/h. 45 kW. Tomahawk, Poltava region.

We offer the Tomahawk electric straw cutter 500E" from the factory (Great Britain) with a 45 kW electric motor. Productivity up to 3500 kg.h. with a fraction from 36 mm to 60 mm. For crushing into finer fractions, up to 1-10 mm, the straw cutter is equipped with pneumatic mills from GK Bioekoprom, where the crushed material can be used in various directions of production.

This straw cutter can work with different degrees of moisture and grind more raw materials than similar analogues. Perfectly grinds straw, hay, corn stalks, hemp, soybean and rapeseed straw, sunflower husk stalks, reeds, as well as many other raw materials.

Shredded material can be discharged to a different feed level, or moved up to 60 meters using an additional fan or pneumatic to the shredder that pumps it.

The straw shredder is intended for industrial use and can be used in any farms where there is a need for crushed straw of any fraction:

for poultry farms, pig farms and cattle.
production of briquettes and pellets;
mushroom production;
furniture factory for the production of chipboard;
power plants;
production of insulation blocks from straw.

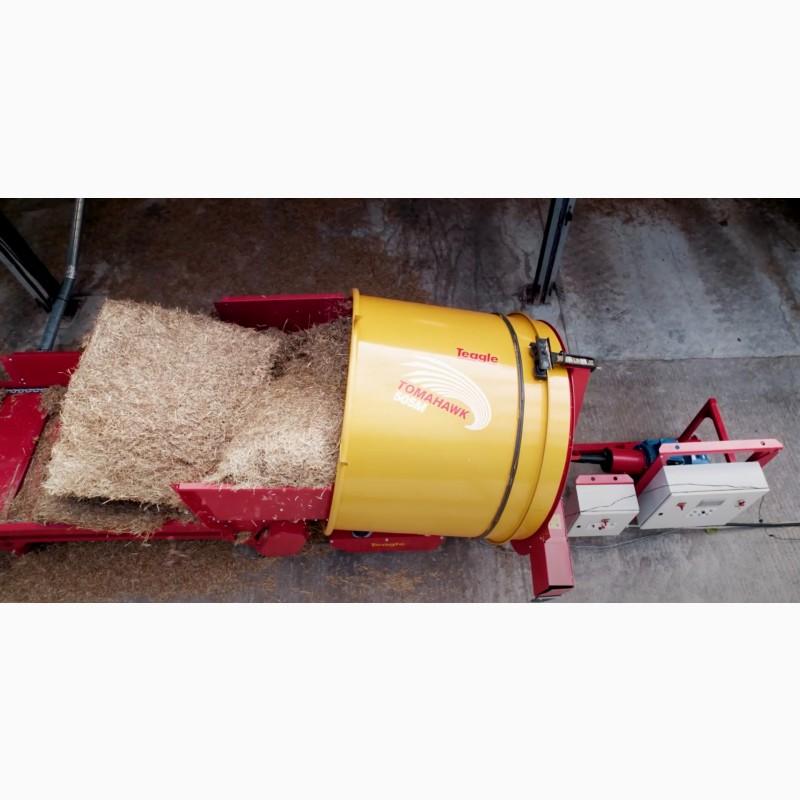

The feeding table allows you to increase the efficiency of using the shredder, ensuring continuous supply of bales to the loading hopper of the straw cutter. Up to 3 bales of straw can be placed on the table, which are then fed into the drum. This feed increases efficiency and greatly simplifies the grinding production process, because there is no need to stop the machine to load another part of the material to restart the crusher. In addition, thanks to the feed table, the operator is at a distance from the rotating drum and makes his work safer.

Tomahawk 500E Stationary Electric Straw Grinder Specification:

Tomahawk Specs/Models:

500E

Material

grass biomass, straw, hay, reeds

Humidity

Up to 35%

Drum diameter

1.83m

Productivity * from boot table:

Up to 3500 kg/h

(with a sieve cell of 36mm-60mm).

Hammer crushers are additionally used for crushing into smaller fractions.

Download:

Installed power:

Mechanical from the feeding table

45 kW

Rotor speed

1000 rpm.

Gear motor.

1.5 kW

Protection against hitting a stone

Yes

Protection against hitting metal

Yes

Energy consumption per hour:
(//tractor-service.com)
Depends on performance

Power:

3 x 400 V, 50 Hz

Dimensions L x W x H:

4000mm x 2000mm x 2680mm

Size with feed conveyor for 1 section

7550mm

Weight:

1500 kg

Operating conditions:

Open, ventilated space.

Working temperature:

From +5 to +30 ° С

Operator:

1 person

Features of the shredder "Tomahawk 500E".

Reduction of operating costs.

A much smaller one is needed. electric drive (45 kW) than when using a tractor (usually 90 kW) of the same power or analogs on the market.

Select the appropriate sieve size to adjust the length of the slice.

Interchangeable sieves are made of Hardox® plate for extended life, providing accurate calibration of straw/dry materials from 10mm to 150mm. Grids are available with holes Ø 10, 13, 15, 18, 21, 25, 28, 36, 50 mm and slots of 120 mm.

To control the peak power load and maximize performance, the control system continuously monitors the current and adjusts the drum rotation frequency.

A conveyor feed is then connected to ensure a continuous supply of material.

The inverter (frequency converter) provides constant uninterrupted current to the main electric motor.

Sequential start/stop control of rotor and drum motors to avoid blocking.

Remote connection

The system is equipped with a SIM card for remote data collection.

This allows for continuous improvement in processing efficiency, as well as remote factory support and settings updates.

Nominal connection current: 125 A

Typical power requirement.

Empty: 30 A. Average power: 45 A. Peak load: 80 Amps.

Additional fan.

Can be connected to various delivery systems.

Radio remote control provides simple control of the machine during processing.

Pneumatic hammer shredders of straw into a smaller fraction (1-10 mm), 30 kW from the manufacturer GK Bioekoprom.

Productivity of one shredder +/-1000 kg/hour.
