Self-locking stainless steel cable holders CARBOMECH Sp. z o.o., Lviv region.

Self-locking stainless steel cable holders: 3-201 ÷ 3-212 produced by CARBOMECH Sp. z o.o.
Holders for mounting on brackets, the hook is screwed to the bracket, both elements of the holder are connected by a steel cable.
Self-locking stainless steel cable holders: 3-201.L ÷ 3-212.L manufactured by CARBOMECH Sp. z o.o.
The holders are attached directly to the brickwork in the mine, both elements of the holder are connected by a steel cable.

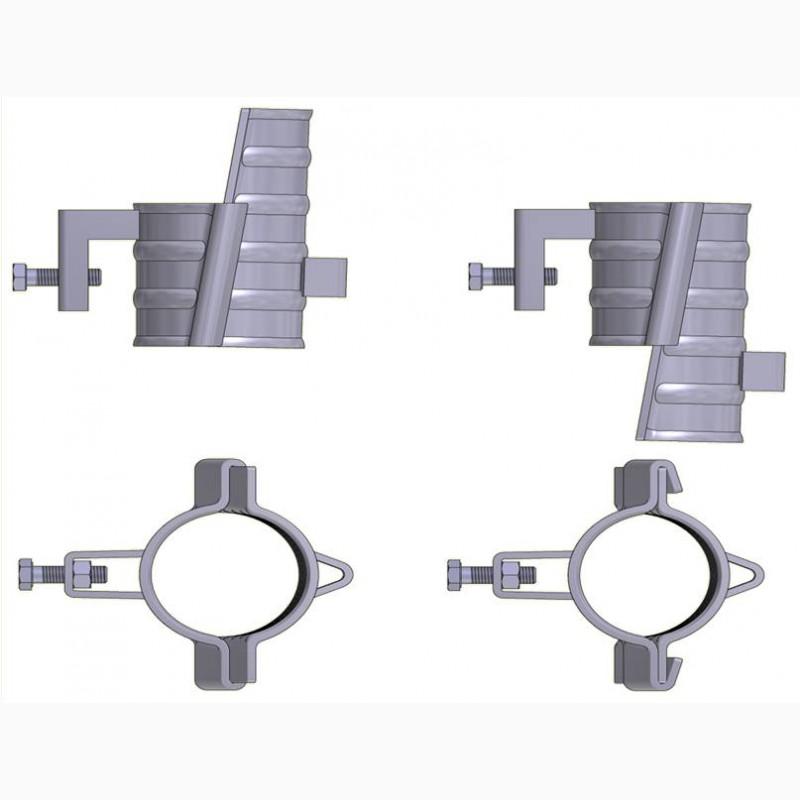

For all variants of the cable, the dimensions of the part, i.e. the fixed jaw and the movable jaw, are the same.
Holder Type:
3-201 for cables with an outer diameter of 10÷13 mm
3-202 for cables with an outer diameter of 14÷17 mm
3-203 for cables with an outer diameter of 18÷21 mm
3-204 for cables with an outer diameter of 22÷27 mm
3-205 for cables with an outer diameter of 28÷33 mm
3-206 for cables with an outer diameter of 34÷39 mm
3-207 for cables with an outer diameter of 40÷47 mm
3-208 for cables with an outer diameter of 48÷55 mm
3-209 for cables with an outer diameter of 56÷63 mm
3-210 for cables with an outer diameter of 64÷73 mm
3-211 for cables with an outer diameter of 74÷83 mm
3-212 for cables with an outer diameter of 84÷94 mm
Each cable holder (of this type) is made exactly according to the average outer diameter of the cable,
installed in the mine, with an accuracy of 1 mm, given by the mine.
The design of the bracket ensures that the cable is held within the deviation of the cable sizes.
A mandatory condition for the correct operation of the self-locking cartridge is:
correct selection of the bracket for the diameter of the cable,
the correct location of the clamping jaws of the cable,
Pre-connect the holder to the cable by hitting the protruding part of the movable part with a hammer.(//tractor-service.com)
The initial clamping of the cable in the cartridge must be achieved by a hammer blow on a movable sponge weighing 500 g.
This will set the moving part in motion, jam the cable into the chuck and create a friction clutch between the handle.
and rope An uncontrollable impact on the movable sponge (for example, with great effort) will lead to the loss of the self-tightening properties of the cable!
The worker inserting the cable into the holder relies only on feeling whether one blow is enough or if it needs to be repeated.
The effort must be high enough for the cartridge to start working as a self-locking one.
If the force is too low, the cable will move in the holder without clamping the clamp under load.
The principle of operation of the holder is based on a frictional connection, which is due to the automatic pressing of the fixed and movable ones.
sponges to the cable when applying a force emanating from the mass of the cable hanging under the handle.

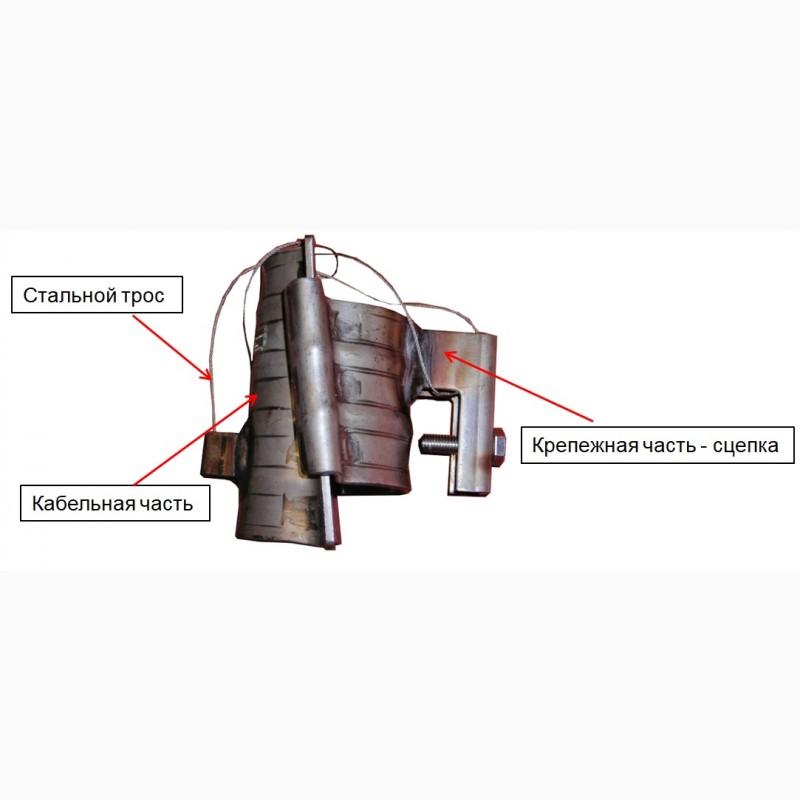

The self-locking cable holder, installed on the bracket, consists of a cable part and a fastening part,
which are connected by a steel cable.
Video:
https: / / rutube.ru / video / private / f634adc3bb2e51732e023e9452af6999 / ? r=wd&p=SirbHBkWf5D1HycoUUOCEw
The company CARBOMECH Sp. z o.o. has all permission documents, certificates for the implementation of this type of production.
