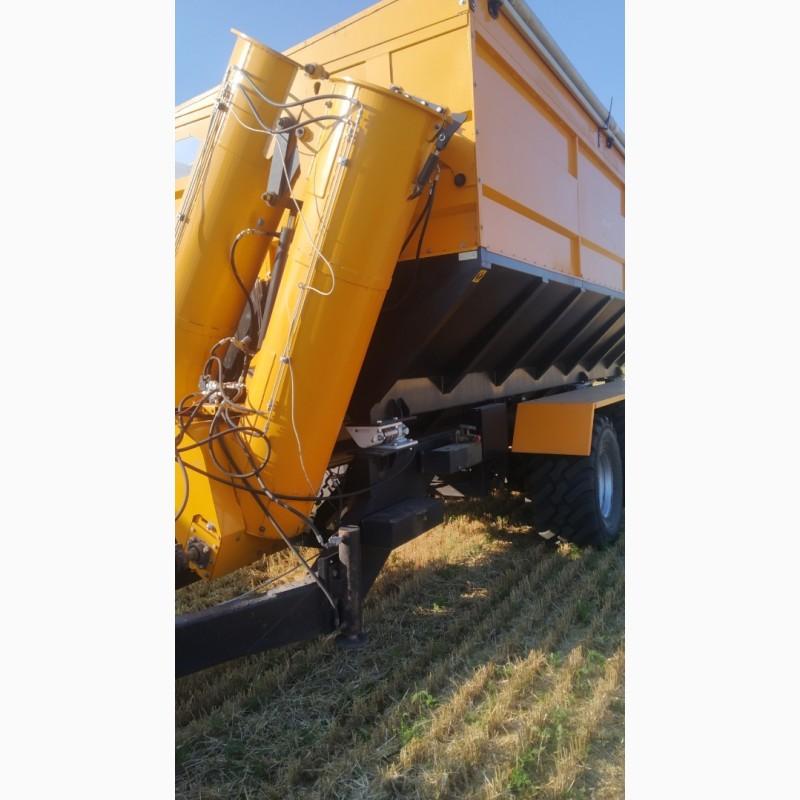

Weights for PBN-20 hopper loader, Kyiv

Weights for the hopper of the PBN-20 loader

The Loader Hopper Weighing System (HWBS) is the easiest way to control harvest and truck loading in the field. Controls loading in the field, minimizes the risks of overloading andunderloading of the grain truck in the field.

Complete set:
- Strain gauges - 4 pcs.
- Load cell assembly unit - 4 pcs.
- Weight indicator - 1 pc.
- Weighing module - 1pc.
- Junction box - 1 pc.
- Printer - 1 pc.
- Cable - 1 pc.
- Data transmission module - 1pc (option).
- Duplicating board - 1pc (option).
(//tractor-service.com)
Strain gauges, mounting units: Located under the hopper for measuringweight of material. They are installed instead of standard supports on the bunker.

Weight indicator, module: Displays the current weight of the material in the hopper. Located in the driver's cabin for convenient control and weight tracking. The module manages the weight measurement process, provides the ability to adjust and control the weight. It has relay outputs to control the shipment process.

Junction box: Designed to connect all strain gauges into one system.

Printer: Allows you to print the data of each operation.

Cable: Connects all components of the system into one whole reliable system.

Buying equipment from the official importer "Keli Ukraine" you get a number of advantages:
original equipment;
official guarantee;
professional consultation;
specialist technical support.
