Screbkovy quick heat exchanger TERLOTHERM / TERLET, Kiev region.

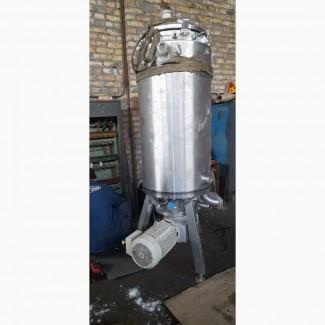

Scraper quick heat exchanger TERLOTHERM / TERLET
Internal condition is close to new. Most likely, they were not in use. Outside, there are dents on the lining of the heater (it was stored in a warehouse, on a pallet) - they do not affect operation.
Two pieces are available. One is missing a gear motor.
The price of a bu in Europe is from 20,000 to 40,000 euros per unit.
Our price is UAH 650,000 for both.
Working principle:
https://www.youtube.com/watch?v=QiQFz2ckmQM

Terlotherm scraper heat exchanger for heating or cooling ground meat,fruits, sauces, salsa, hummus or any other viscous products at temperatures from 200F to 38F using a water-glycol cooling medium.
Each unit can cool approximately 2000-3000 pounds per hour depending on viscosity and desired final temperature.
Размеры:
* Height - 2450mm;
* Width – 1320mm; 174
*Диаметр - 730мм (//tractor-service.com)

Technical data:
* Manufacturer –Terlet, Zuthen, Netherlands;
* The diameter of the product inlet is 85 mm;
* Product diameterplum - 85mm;
* The diameter of the entrance to the outer shell is 50 mm;
* The diameter of the exit from the outer jacket is 55 mm;
* The diameter of the entrance to the inner jacket is 50 mm;
* The diameter of the exit from the outer jacket is 50 mm;
* The maximum working pressure of the inner jacket is 5 bar;
* The maximum working pressure of the outer jacket is 4 bar;
* The maximum working temperature of the layers is 150C; 190
* 32 скребка;
* Heat exchange area - approx. 4.5 m2
