Agitator for Eurocube mixer paddle liquid mixer 1, 5kW/380V/220B, aisi-304 chastotnyk, Kyiv

The Eurocube mixer is used for mixing/mixing of different liquid products in the Eurocube, materials in contact with the mixingcomposition are allowed in food production. Folding blades that stir the liquid allow you to install a mixer inEurocube with a neck diameter of 140mm or more.
***
We are waiting for the order!
***

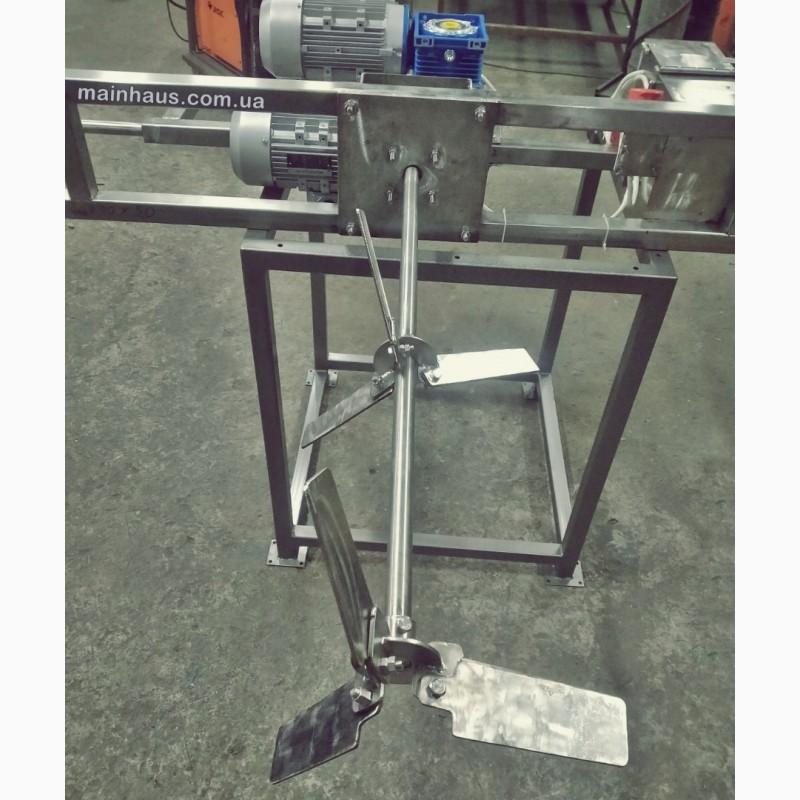

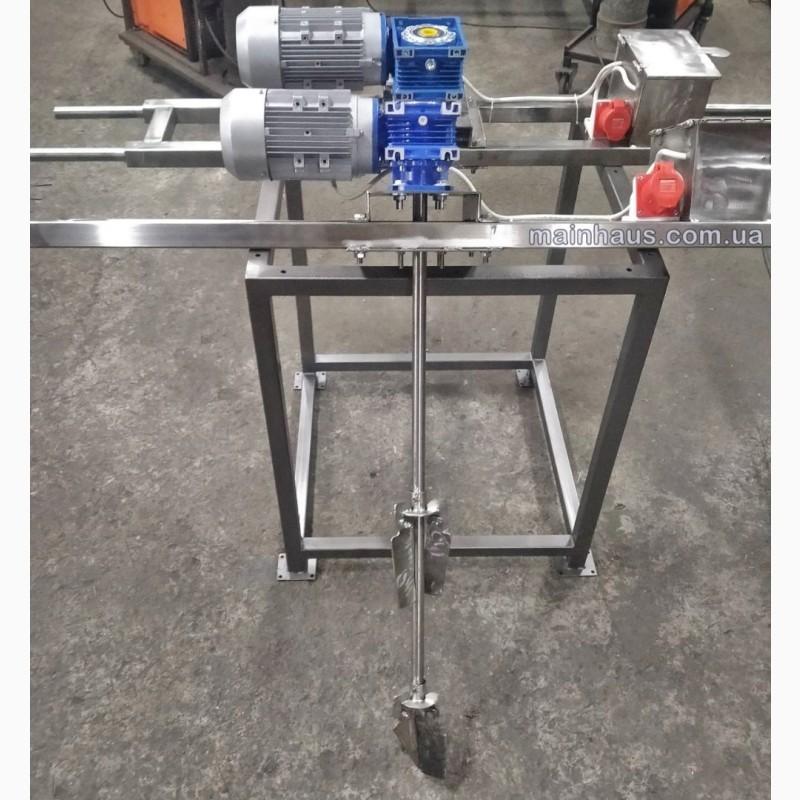

Paddle mixer for Eurocube
Mixer type - dynamic paddle
Number of rows of blades - 2
The number of blades - 3 blades at the bottom / 3 blades at the top.
The diameter of the blades in the open position, mm ~ 400(//tractor-service.com)
Shaft diameter, mm 25
The length of the shaft from the frame, mm 850
Shaft rotation speed - 145 - 186 rpm. per min.
Shaft material - aisi-304
Blade material - aisi-304
Frame material - profile pipe aisi-304

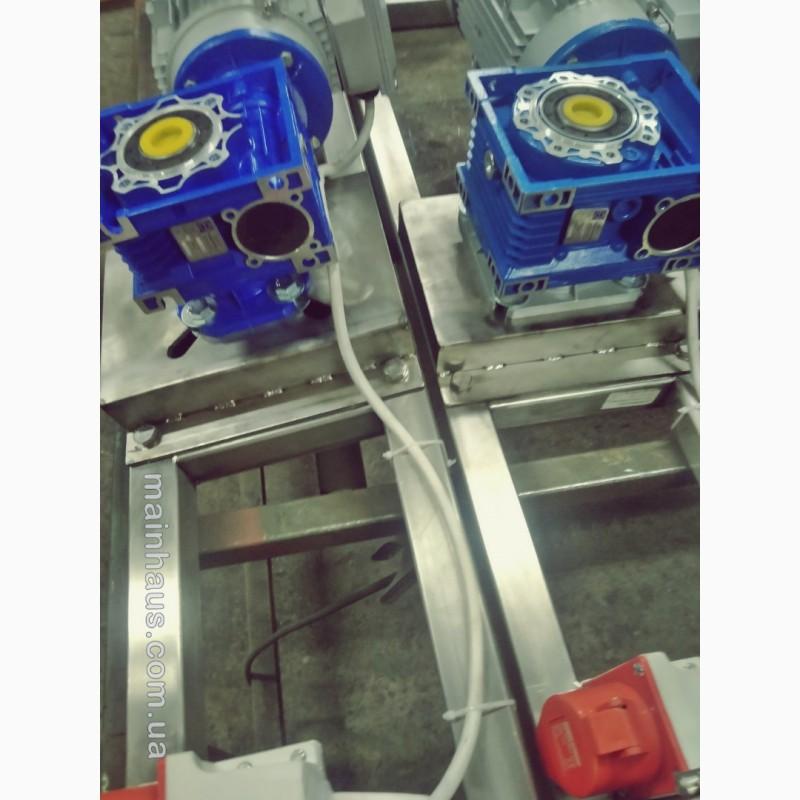

Drive NMRV 063 i=7.5 +T80B4 1.5 kW 1400 rpm B14

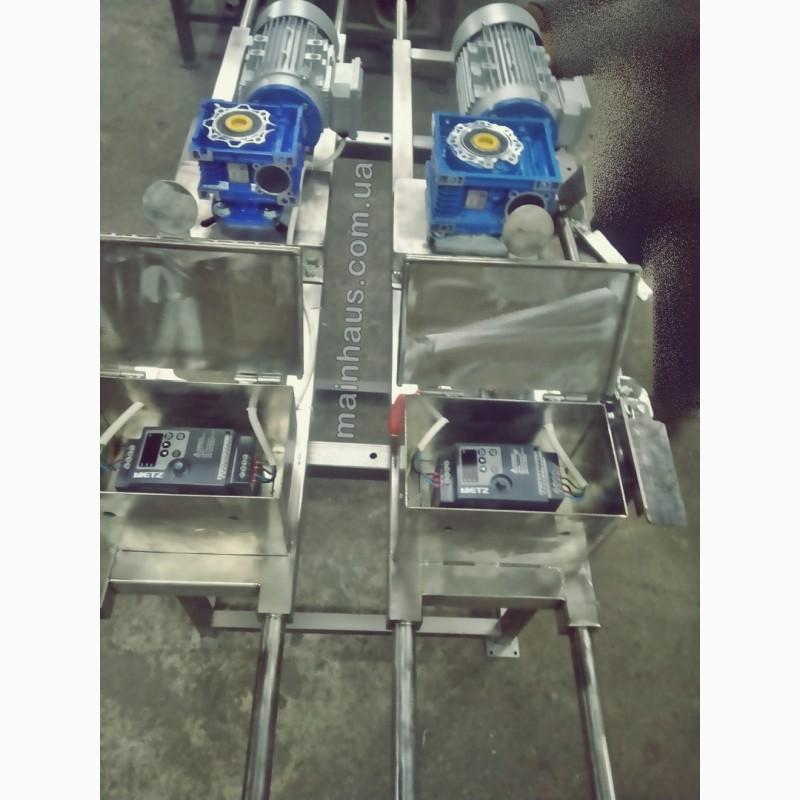

n frequency converter NLP1000-01R5G4
Gap - 12 mic.
