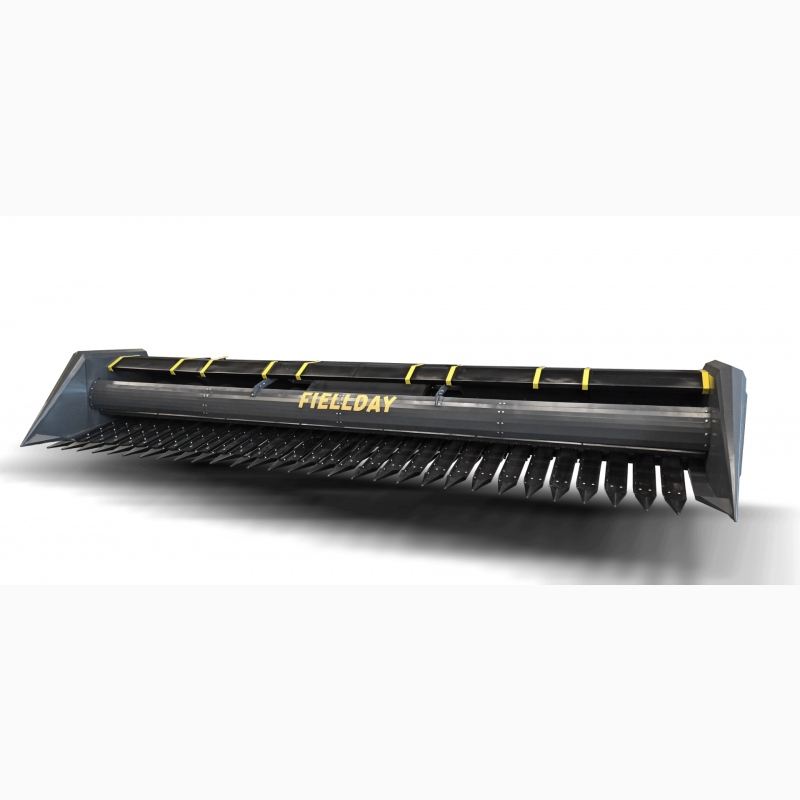

New harvester (harvester) for harvesting sunflowers, Cherkassy region.

Нова жатка (жниварка) for harvesting sunflowers

ADVANTAGES
•intended for harvesting sunflowers of ordinary and continuous sowing.
• the planetary drive reduces the load on the knife head and extends the service life.
•adjustable distance between lifters
• protective visors prevent the emission of sunflowers
• adjustment of the angle of inclination of the reaper
• the simplicity of the drive and moderate weight of the harvester allows you to significantly save fuel.

DESCRIPTION
• simple mechanism design

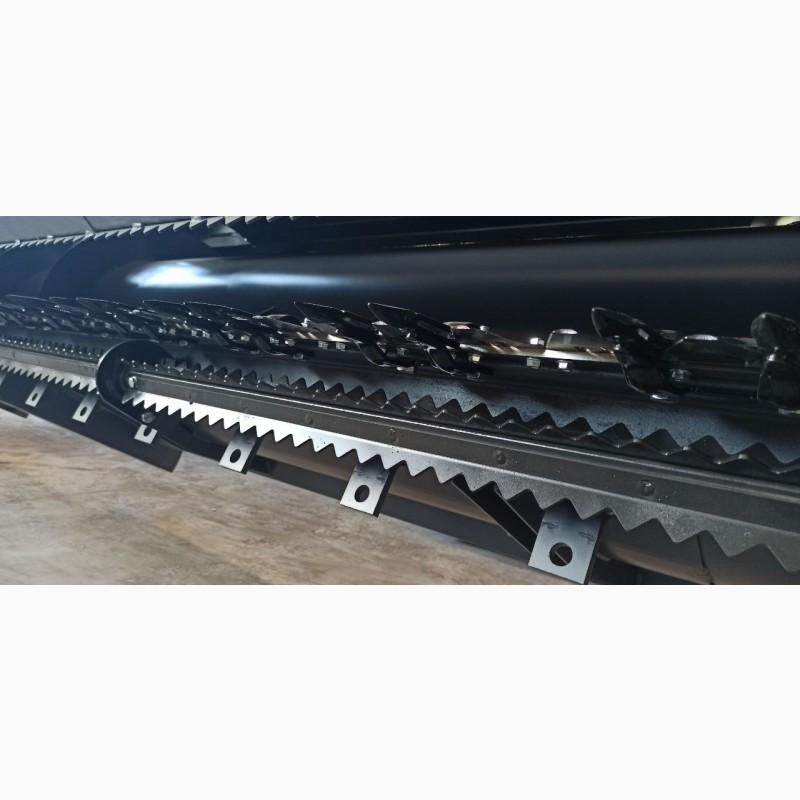

•planetary knife drive
• the possibility of equipping with an original Schumaher drive
•three-bladed winder with toothed cover
•reinforced frame
• protective cover of the feed reel
• powder coating long-term protection against corrosion(//tractor-service.com)

TECHNICAL CHARACTERISTICS

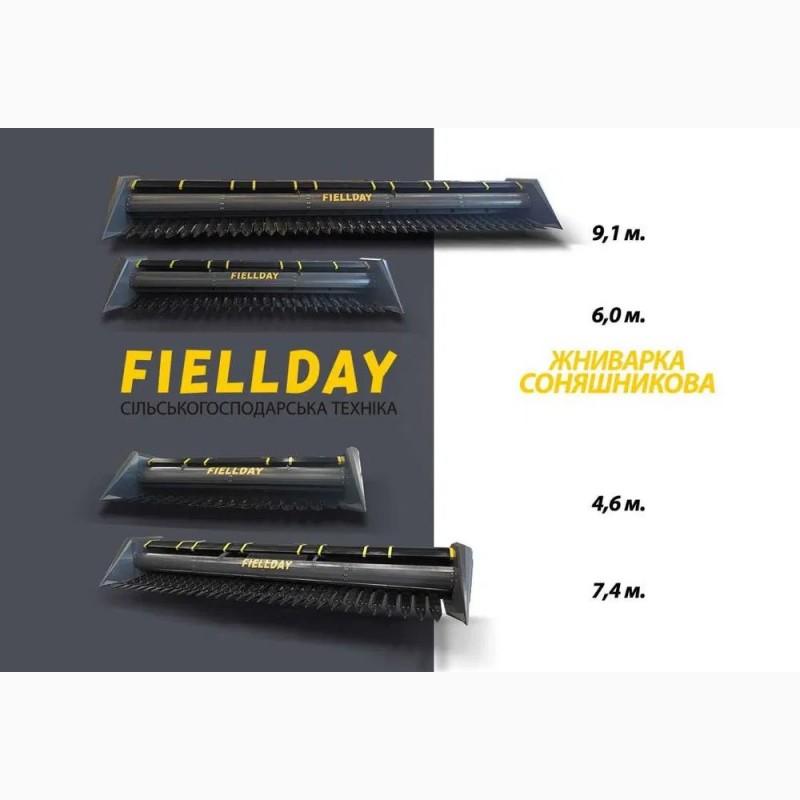

Gripping width 6 / 7.4 / 9.1 m
Working speed up to 12 km/h
Transport speed up to 40 km/h
Cutting height from 250-800 mm.
The step along the axes of stem lifters is 228.6 mm.
The number of double strokes of the knife from 600 dv.h/min.
Drive type MPH (Poland) or Schumaher (Germany)

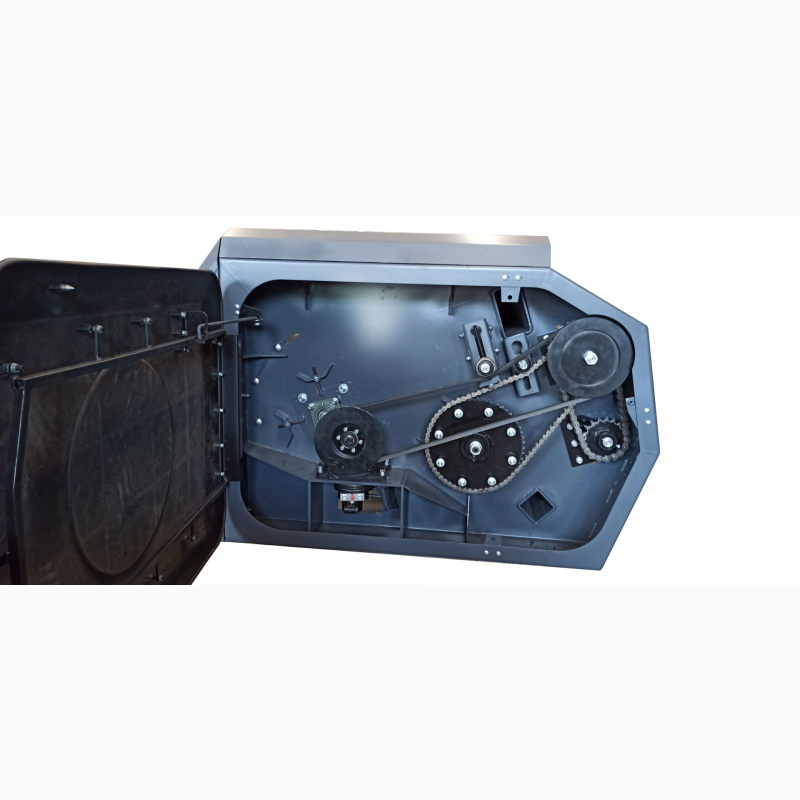

The drive of the scythe is carried out by a reliable planetary mechanism, due to which it was possible to achieve a rectilinear course of the knife, thereby making it impossible to beat and vibrate, which has a destructive effect on the harvester.

Benefits and additional options:
1. A set of spare parts (included in the price), namely: knife segments, hardware, etc.;
2. Commissioning and debugging works (included in the price); 189
3. Безкоштовна доставка;
4. Selection of cutting apparatus (Poland, Germany, Ukraine);
5. Up to two years of warranty;
6. Powder coating of the entire product;
7. Adaptation for anyharvester (included in the price);
