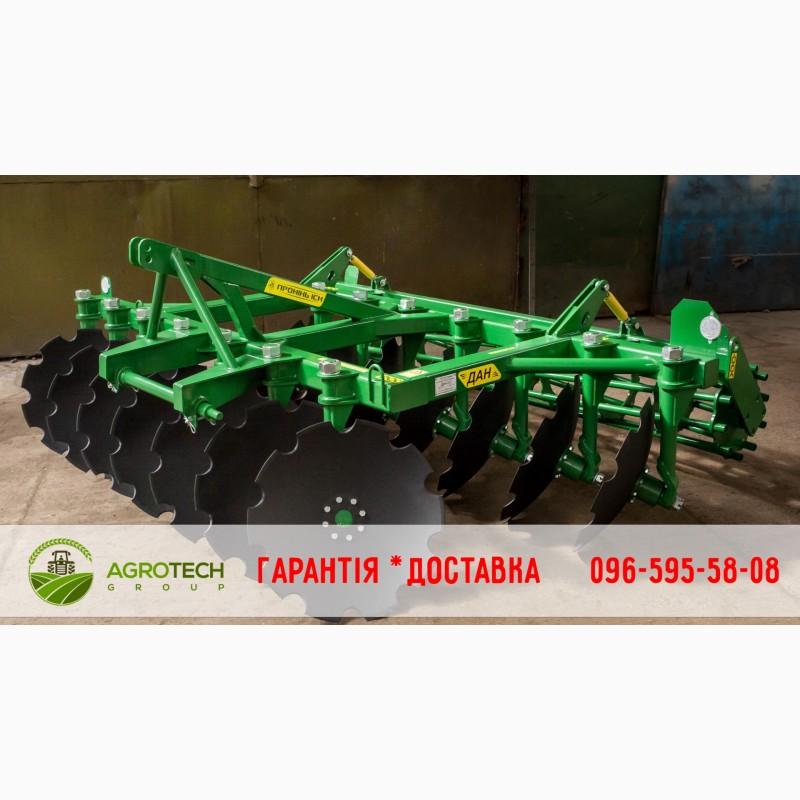

DAN mounted and trailed disc harrows 1, 8; 2, 1; 2, 5; 2, 8; 3, 1; 3, 5, Kyiv region.

DAN disc unit - designed for soil cultivation with tractors from 40 hp. This model of disc harrow can also be used as ahusker. Depending on the result you need, it provides soil cultivation to a depth of 4 to 18 cm, while at the same time evenly distributing organic fertilizers and crop residues. It is equipped with a roller, with the help of which the processing depth is regulated and at the same time grinds lumps and rolls the top layer of the soil to preserve moisture, as well as levels the topography of the field.

Characteristics
The DAN mounted disk unit has two rows of racks. Each stand is equipped with a 660 mm cam disc (10 petals, internal sharpening), which is made in Turkey from boron-containing steel 30MnB5 with a hardness of 48-52 HRC. The bearing assembly of this unit can be both serviceable and maintenance-free. At the moment, it is possible to choose a roller profile:

corner (serial production);
strip (to order);
pipe (to order).
In addition, there can be:

axial (serial production);
axisless (to order).

Characteristics
Basic(//tractor-service.com)
Manufacturer of ISM Promin
Country of manufacture Ukraine
TypeDisk harrow
Average group
Gripping width 1.8 m - 3.5 m
The maximum processing depth is 18 cm.
Number of rows 2
Number of discs/teeth 10 pcs. - 20 pcs.
Weight 690 kg - 1750 kg
The power of the tractor is 40 hp. - 180 hp.

Warranty. Delivery.

We offer you to buy a mounted/trailer DAN disc unit from the manufacturer in Bila Tserkva, exclusively at the lowest price on the agricultural market!
Warranty for the disc harrow, the warranty is valid for 12 months from the moment of purchase of the unit without limitation of working hours.
And you also have the opportunity to order DELIVERY across Ukraine of this and other agricultural machinery by our transport, to make a self-pickup or to choose shipment by a carrier.
