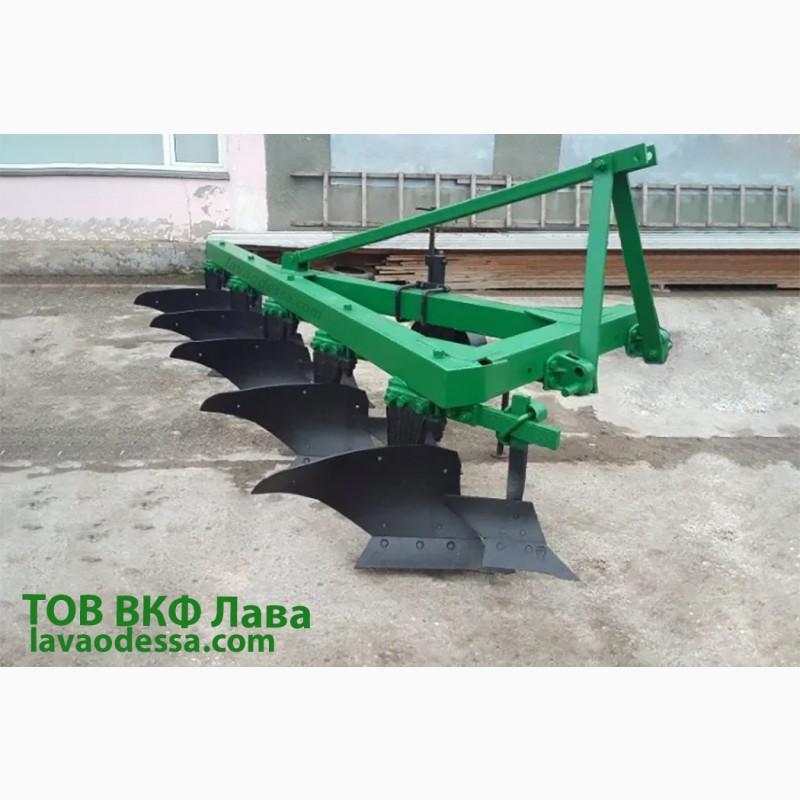

The PLN 5-35 five-body hinged plow is intended for plowing soils under
cereals and technical crops to a depth of 30 cm.
The plow is used in all soil and climatic zones, except for soil clogged with stones, slates and other obstacles, with a specific soil resistance of 0.9 kgf/cm2 (0.09 MPa) and a hardness of up to 40 kgf/cm2 (4.0 MPa) and moisture content of up to 27%.
The plow is aggregated with a
tractor with a power of 150-180 hp. (T-150, T-150K, KhTZ-170).
Technical characteristics:
1. The width of the plow - 1.75 m
2. Plowing depth - 18-30 cm
3. Mass - 935 kg
4. The distance from the support plane of the housing to the lower plane of the frame - 620 mm
5. The distance between the cases is 800 mm.
6. The number of working bodies - 5 pcs
7. Productivity in 1 hour. - 1.2-1.6 ha/h
8. The width of the front plow - 230 mm
Overall dimensions, mm:
(//tractor-service.com)
length - 4280±90
width - 2080±40
height - 1585±30
Advantages:

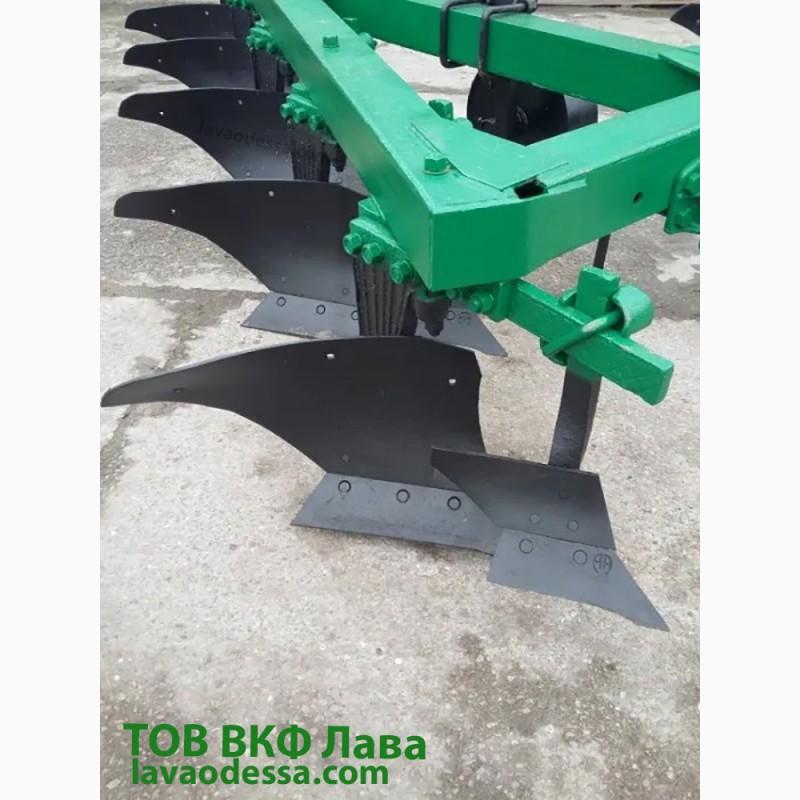

1. The front plow, installed in front of each plow body, serves to cut the top layer of the soil and wrap plant remains to a depth of up to 12 cm.
2. The plows are equipped with reinforced semi-screw piles for more efficient circulation of the layer, the field plowed with such a plow has a well loosened, even surface.
3. Visibility, simplicity and ease of adjustment.
