Industrial granulator for fodder, compound feed up to 2500 kg/h. 75 kW. Czechia, Poltava region.

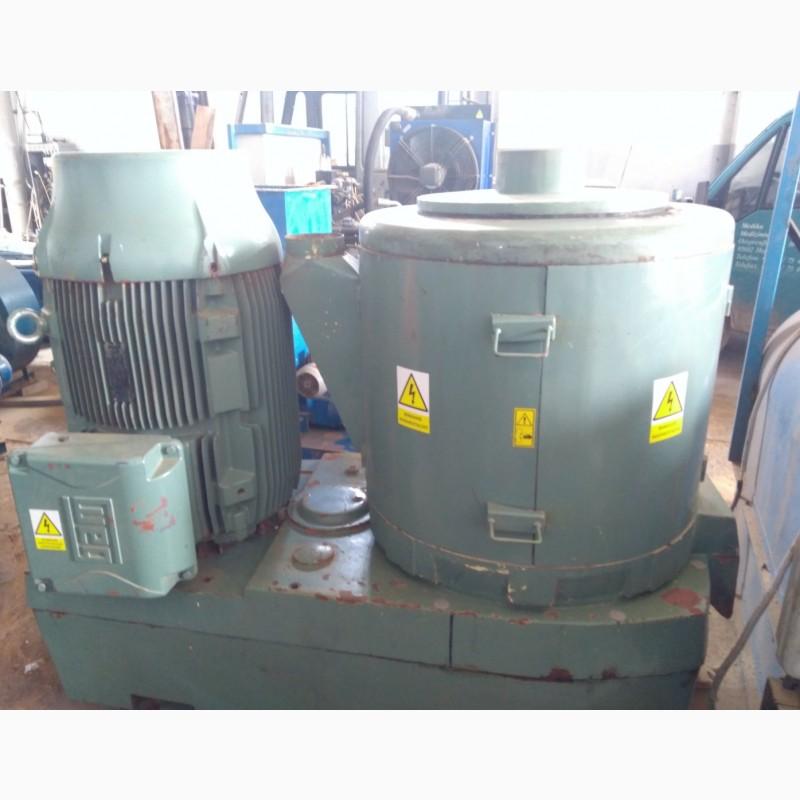

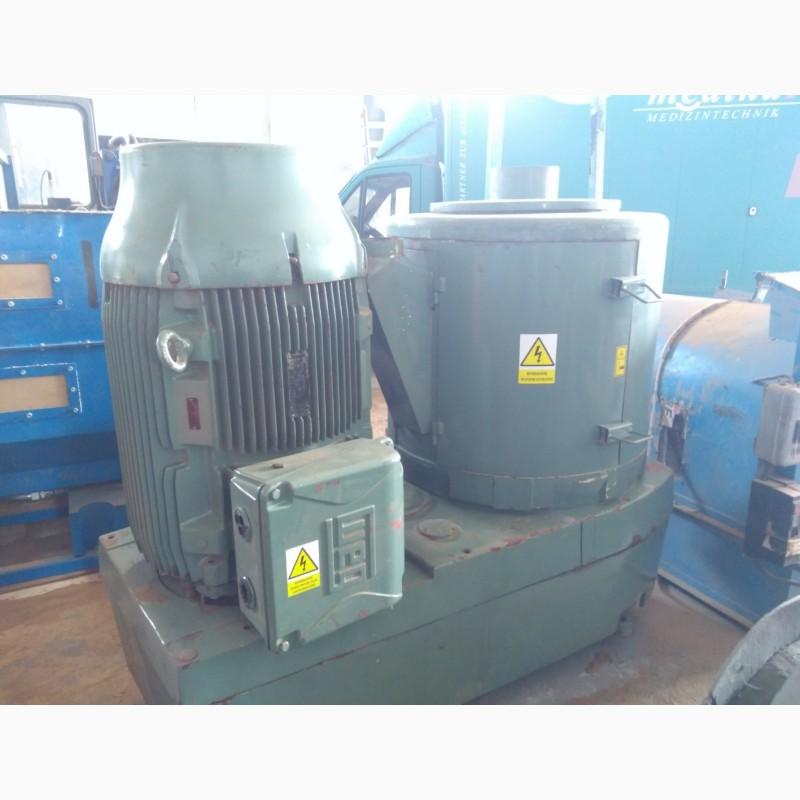

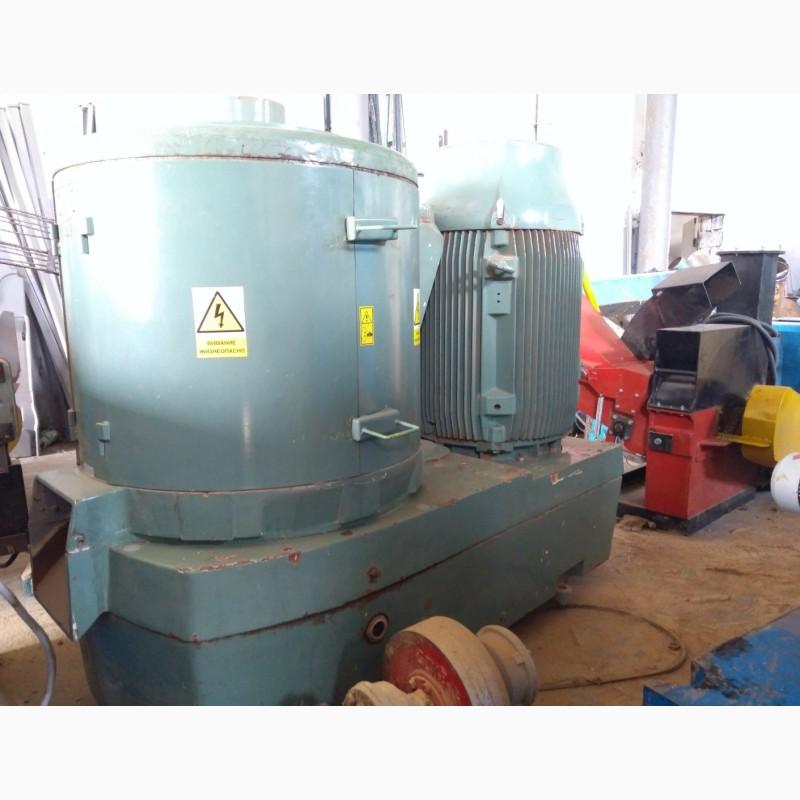

Granulator TL700: European Quality and High Productivity

Looking for a reliable and productive granulator for your business? We present the TL700 - an innovative granulator manufactured in the Czech Republic, capable of meeting the highest requirements in various industries.

Where is the TL700 granulator used?

The TL700 granulator is an ideal solution for the following industries:

Farming: It enables the production of pellets from raw materials such as agricultural waste, perennial grasses, and other biomass.

Food Industry: The TL700 granulator allows you to turn food waste and raw materials into valuable and efficiently stored pellets that can be used in animal feed.

Bioenergy: Its performance and reliability make it ideal for biofuel production.

From What Raw Materials Can You Make Granules?

The TL700 granulator is capable of processing a variety of raw materials, including wood pulp,straw, hay, food waste and other biomass. This makes it a versatile and profitable choice for many industries.

Large Assortment of European Granulators

In addition to the TL700 model, we also offer a wide range of otherEuropean-made granulators with different performance and specifications. Choose the one that suits your needs.

Launching Turnkey Granulation Lines

Our company also offers turnkey granulation line design and installation services. We will provide you with all the necessary equipment and knowledge to successfully launch your pellet production.

Choose quality, choose TL700 and other granulators from a European manufacturer. Make your business more profitable and sustainable!

Main technical parameters of TL 700/ (75)90kW.

Parameter

Unit of measurement.

Value

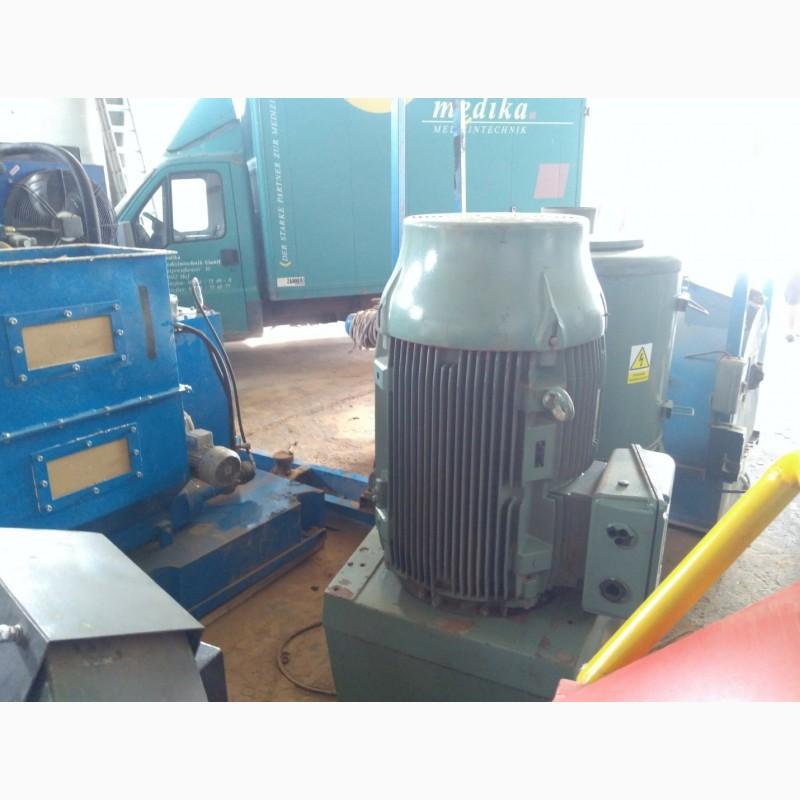

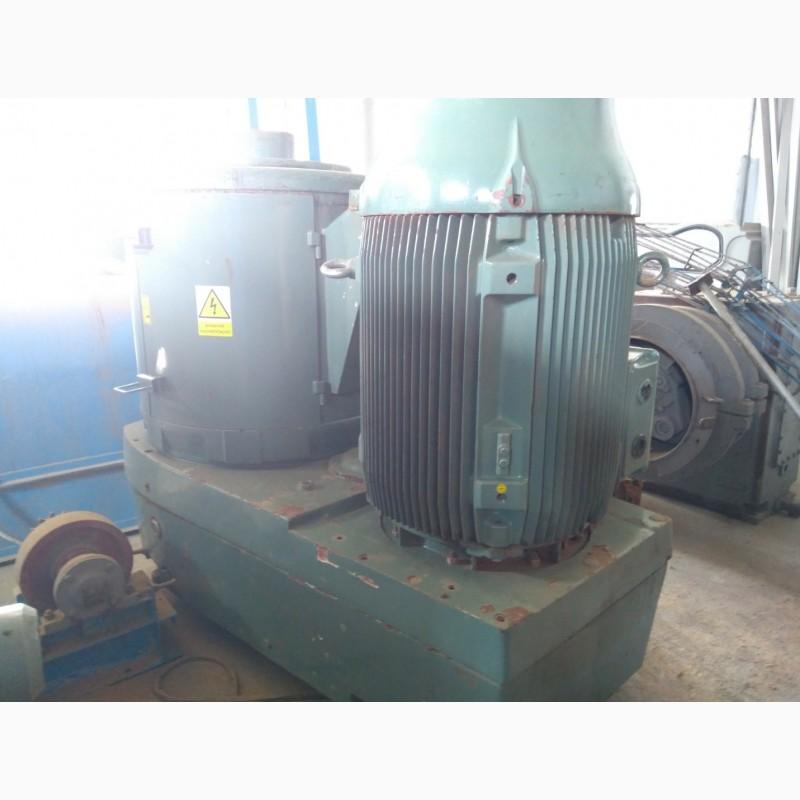

Siemens electric motor

kW

75

Electricity consumption at average loads

kW

60

Rated supply voltage

In(//tractor-service.com)

400

Nominal frequency

Hz

50

The lowest class of electrical equipment protection

IP55

Electric motor current load

A

136

Mass of the machine

kg

3800

Amount of air for aspiration

m3 min-1

15

The diameter of the holes on the matrix

mm

4-12

Productivity on compound feed and bran

kg.h.

1500-2500

The temperature of the granules at the outlet

С

75-85

* The specified performance was achieved during tests on a well-run-in matrix. The water pressure is at least 0.3 MPa. A condition for achieving high productivity is a correctly run-in matrix (at least 50 hours of operation) and compliance with the conditions regarding raw material parameters, humidity and continuity of raw material supply.

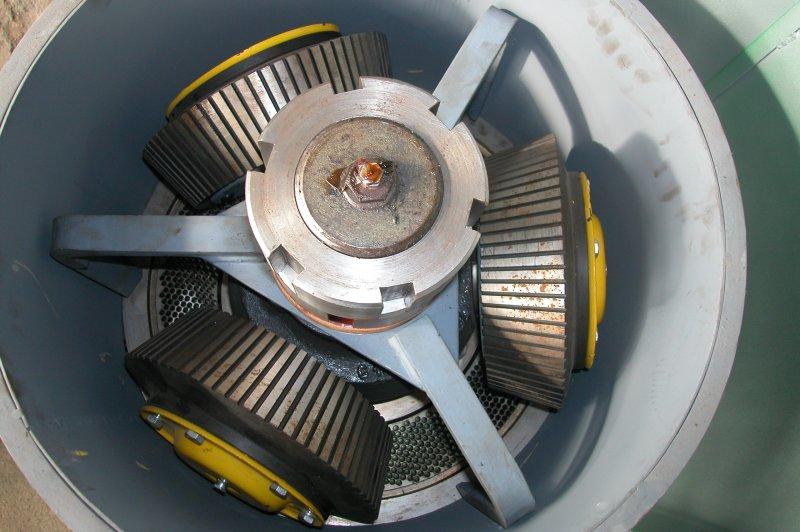

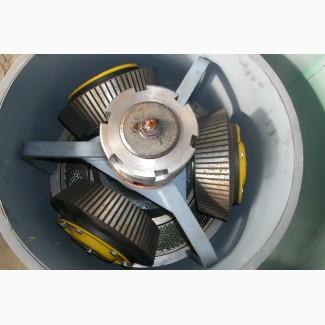

Commercial offer. The TL600/90 press granulator consists of: 1. Granulator with a casing on the frame. 2. Electric motor 75-90 kW 3. Press head with 3-4 rollers 4. Head scraper 5. Die cover 6. Die Ø 6, 8 or 10 mm 7. Tightening device 8. Press oiler 9. Softstarter.
