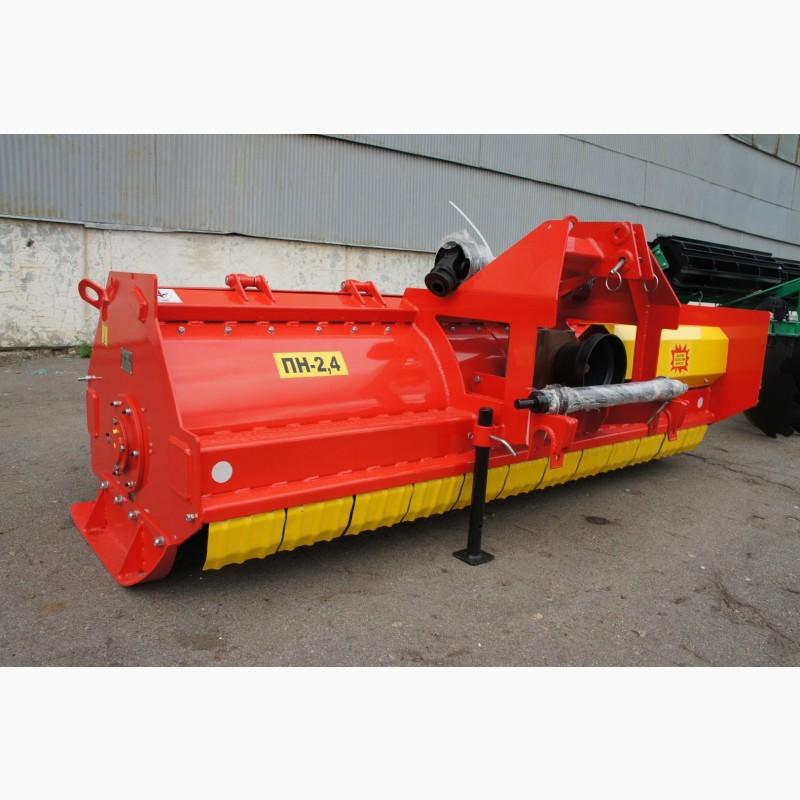

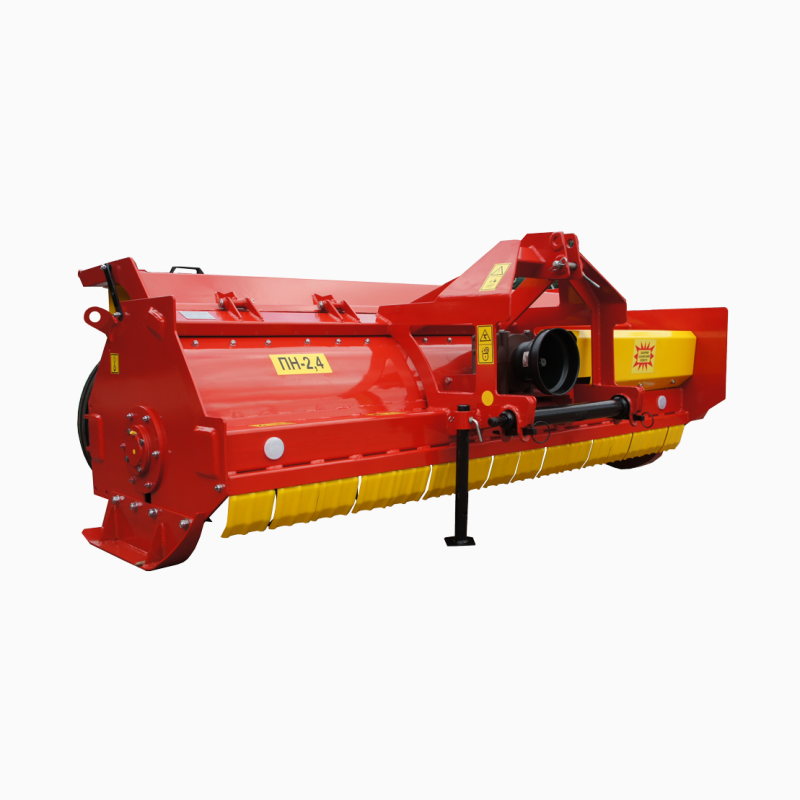

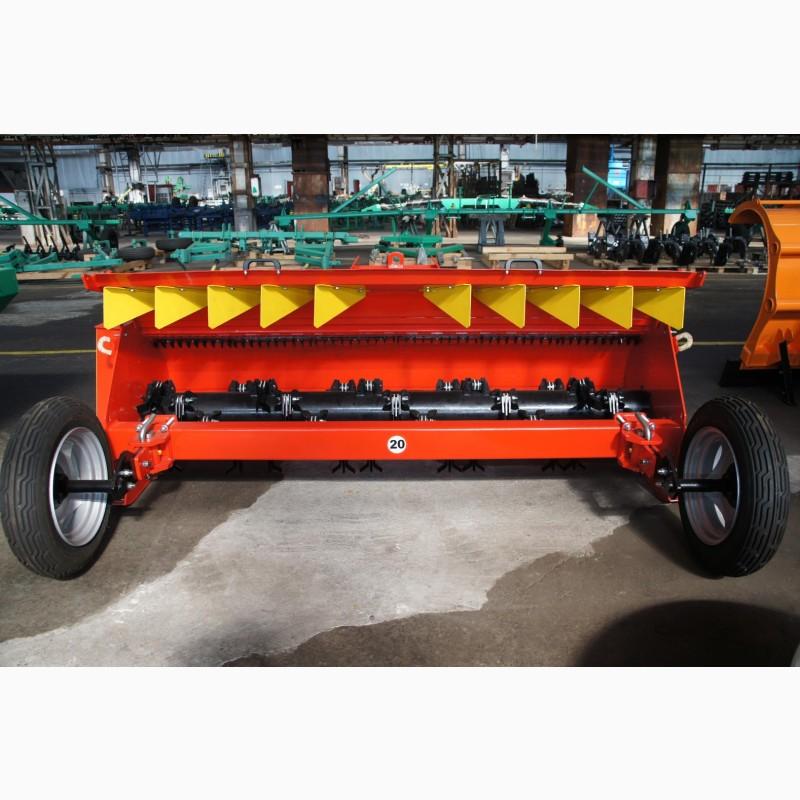

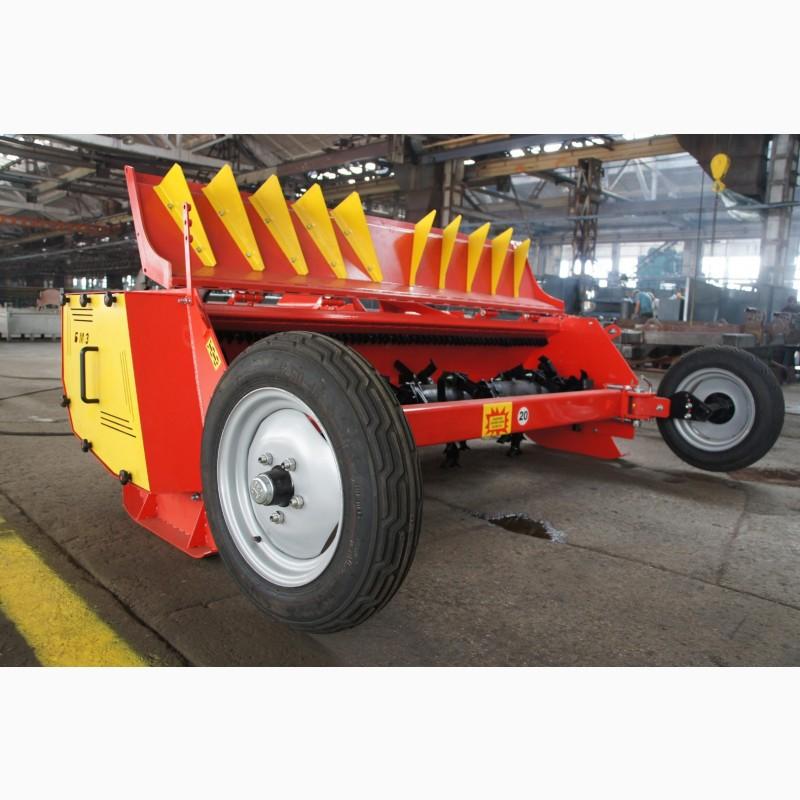

Field mulcher PN -2.4, Kiev region.

The PN-2.4 shredder has a design feature – an increase in the grip width, unlike the previous model (PN-2.0 – 2 m).
The new PN-2.4 mulcher has a number of advantages:
increase in productivity (min 0.5 ha/h);
reducer, joints, cardan shaft and overrunning clutch manufactured by BONDIOLI & PAVESI;

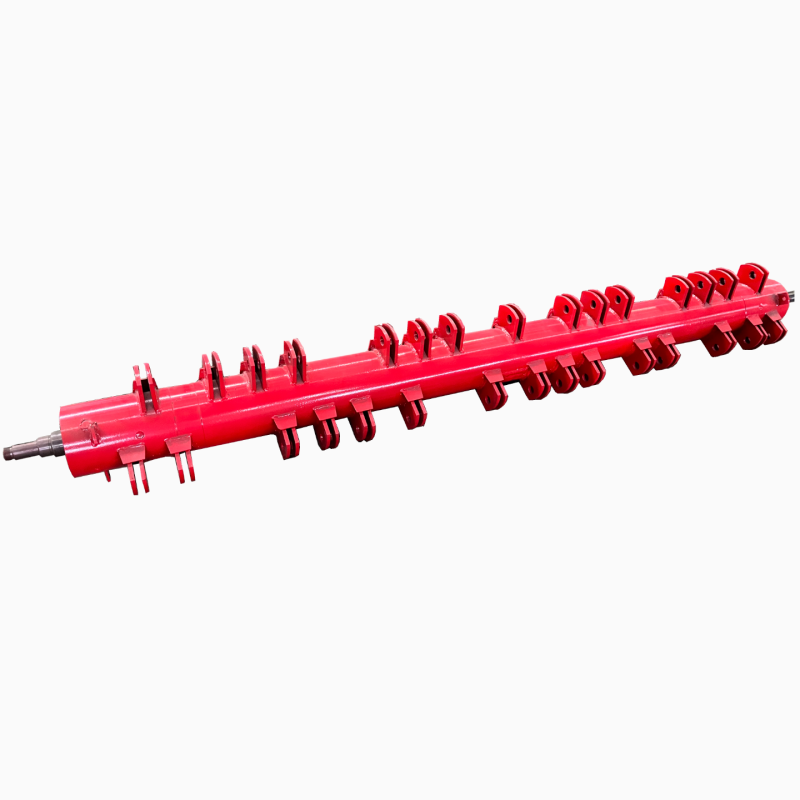

rotor with increased pipe diameter;

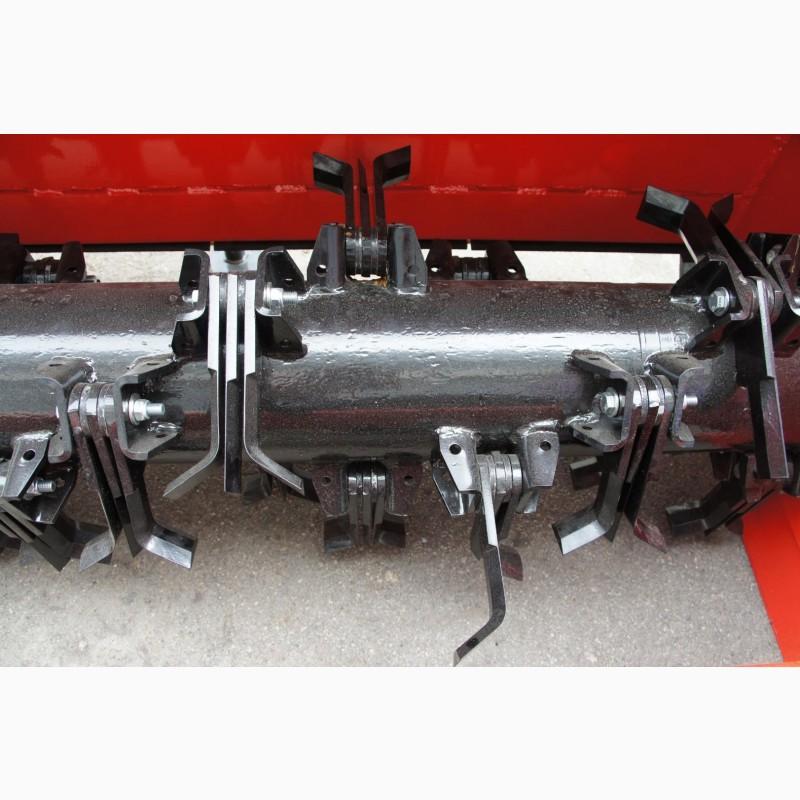

reinforced construction of brackets and their spiral arrangement on the rotor;

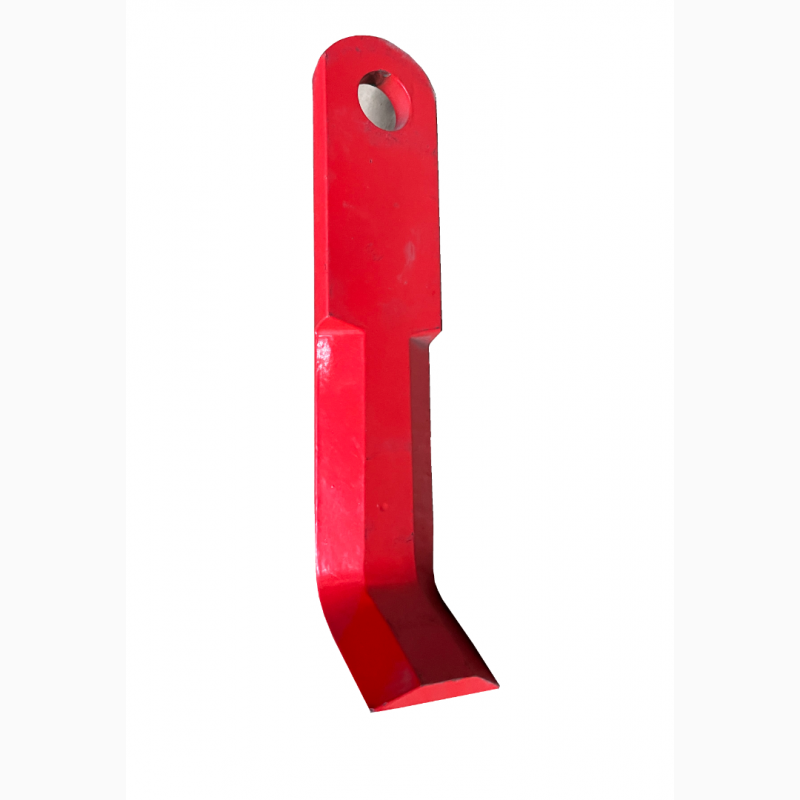

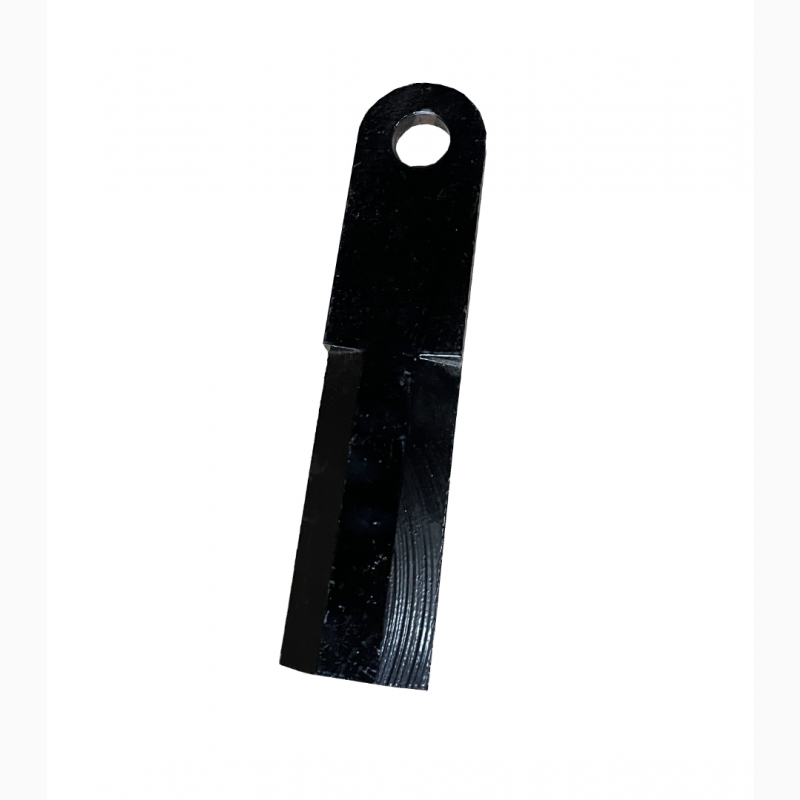

original combination of knives;

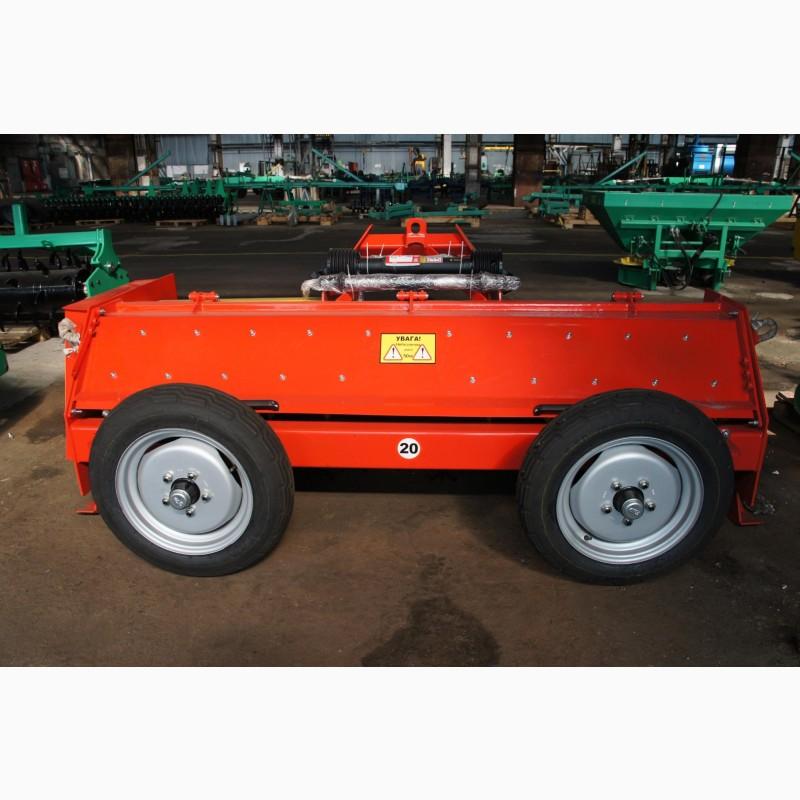

the wheel travel has been updated - the possibility of changing the track, easy transfer to the transport position;
tires with an increased radius;
hub manufactured by "FAD" (Italy);
the design of the unit provides for the possibility of equipping it with gearboxes for an input rotation frequency of 540 and 1000 rpm;

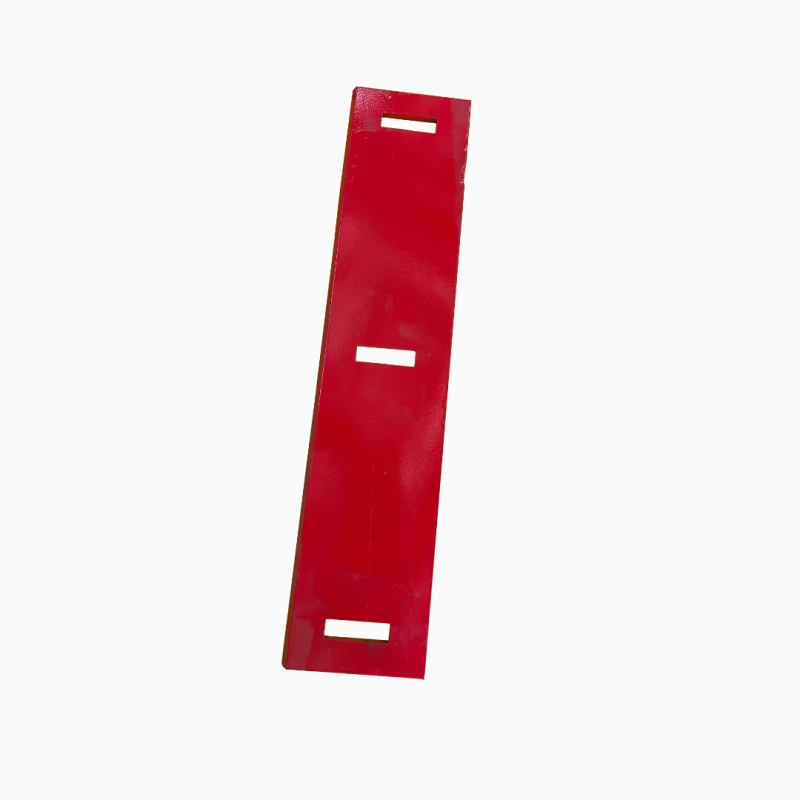

counter knives are used instead of countersunks;

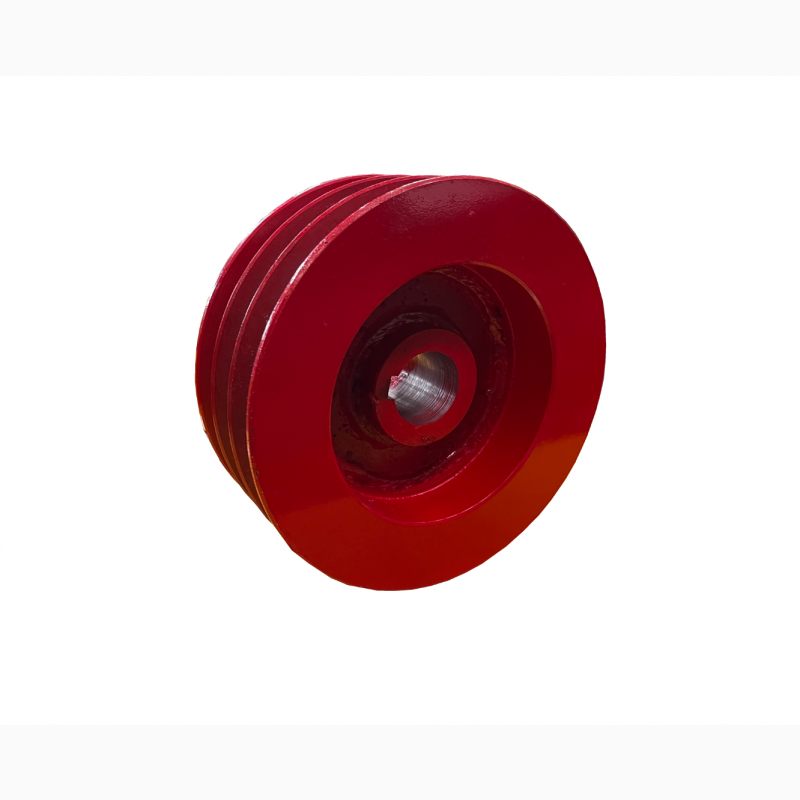

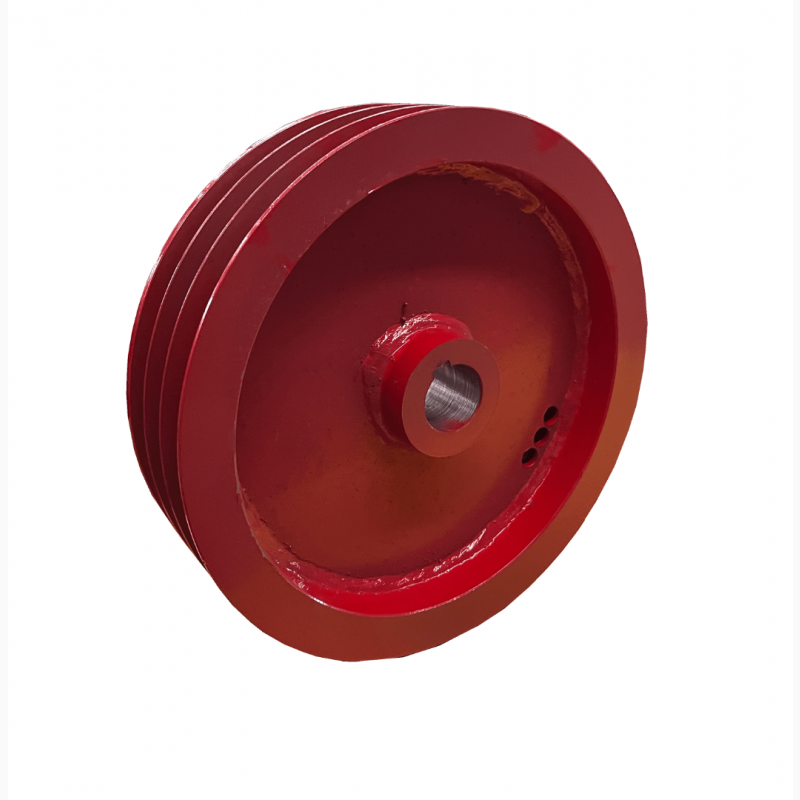

the belt tension roller is used in the drive;
the design of the protective cover on the gearbox shaft, as well as on the cover of the drive belts, has been changed.(//tractor-service.com)
Technical characteristics:
The producer is BILOTSERKIVMAZ
Type of unit-Hinged
Width of capture, m-2.4
Number of cutting knives, pcs.-114
Productivity per hour of prime time, ha/h-2.8
Productivity per hour of operating time, ha/h
2.21
Working speed, km/h-10-12
Transport speed, km/h-20
Number of working bodies, pcs.-114
Mass, kg-1100
Overall dimensions, m (length / width / height)-3.0/2.3;3.0/2.6;1.3/1.8
Powertractor, k.s.-75..100
