Forage mixer, MKZ, hammer crushers, feed mixer, Poltava region.

Production of feed mixers (MKZ) for the preparation of feed and subsequent distribution of the finished mixture to animals.

From the Manufacturer!!! Made to order!!!

12-month warranty!

Delivery throughout Ukraine (Nova Poshta, Delivery, transport companies and self-delivery from Poltava)

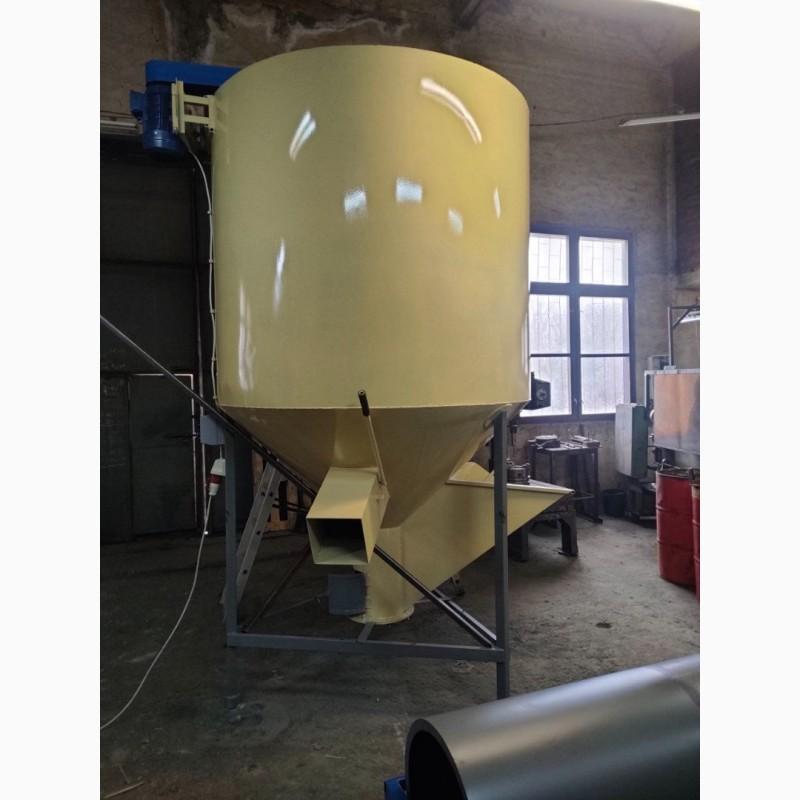

Feed mixer, MKZ (feed mixer, feed mixer) is an agricultural machine used for mixing and further distribution of fodder for cattle. There are two main types of such machines — horizontal and vertical. The machines differ in the volume of the bunker.

One of the most important elements of these machines is the weight system.

Using a feed mixer on a farm allows you to improve the quality of animal nutrition and reduce labor costs.

Features:

- effective mixing occurs with the help of a vertical auger, which creates a continuous flow of the product from the bottom up;

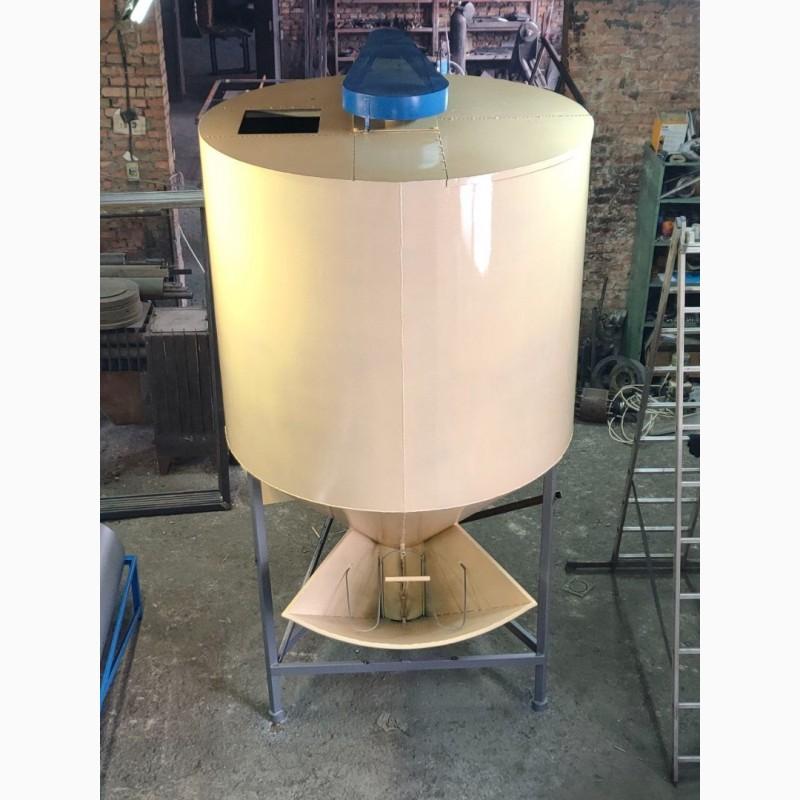

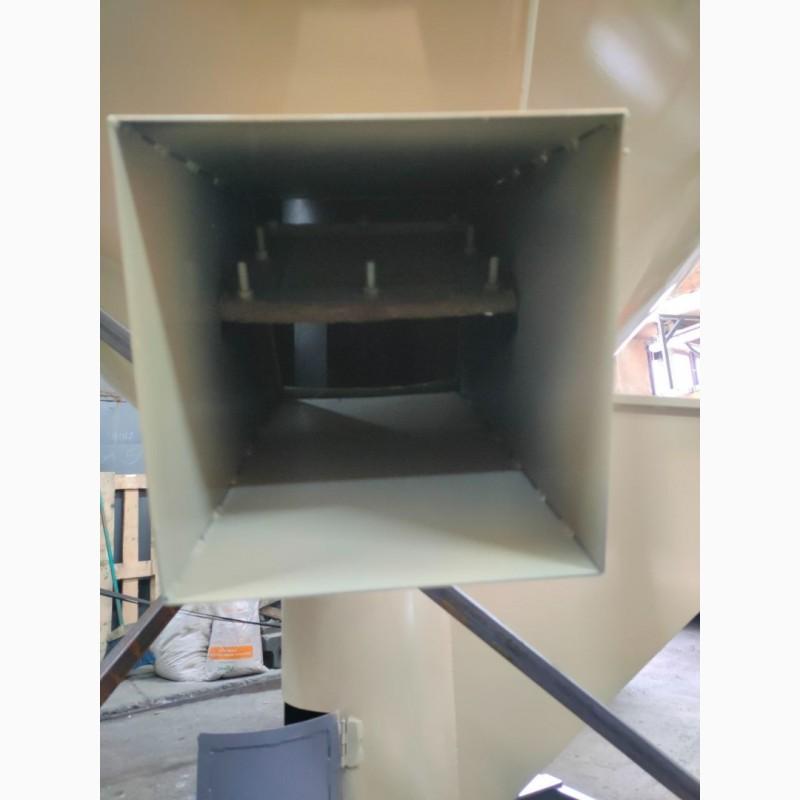

- the components are fed into the loading funnel, located at a convenient height. It is possible to supply components simultaneously with the operation of the device, which allows you to save time for mixing;

- you can additionally buy (order)weights for the feed mixer to control proportions;

- there is a window for sampling and nozzles with a valve for unloading finished products, both into bags and to the next technological equipment. There is also a service door in the lower part of the case;

Working principle:

Mixing in it takes place with the help of an auger located vertically in the center of the mixer. The product moves from bottom to top. An important advantage of screw feed mixers is reliability, simplicity and safety.

Technical data:

- the thickness of the body sheet is 1.5 mm;
- the thickness of the screw segments is 3 mm; 187
- вихід за допомогою якого можна спорожнити змішувач, як за допомогою шнека так і під дією сили тяжіння, якщо немає електрики;
- mixing accuracy 1:10000;
- mixing time 10-30 minutes, depending on the volume and power of the mixer;

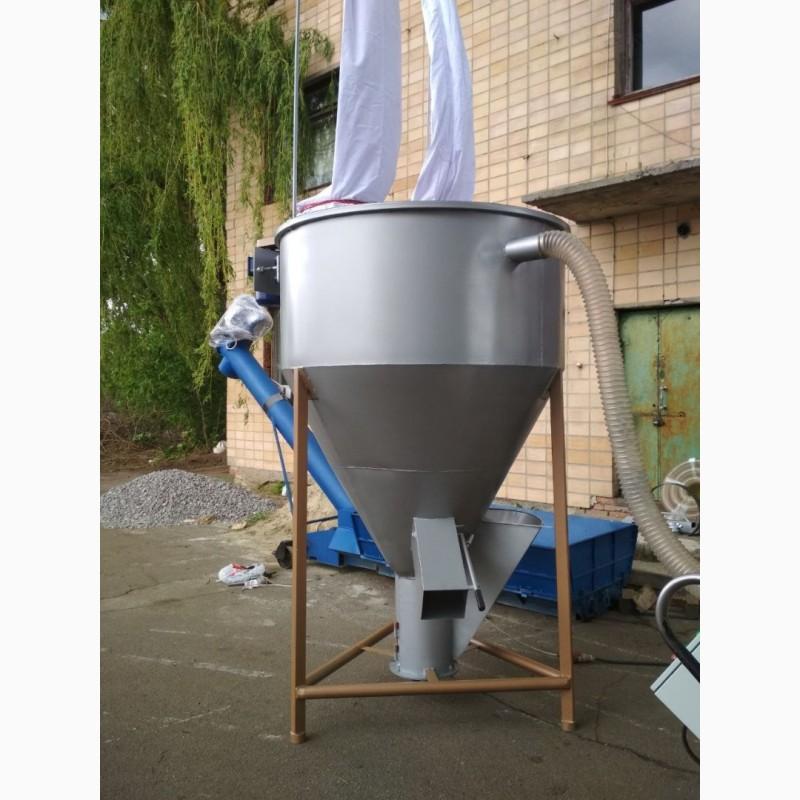

- loading nozzle for feeding products from a hammer crusher (if necessary);

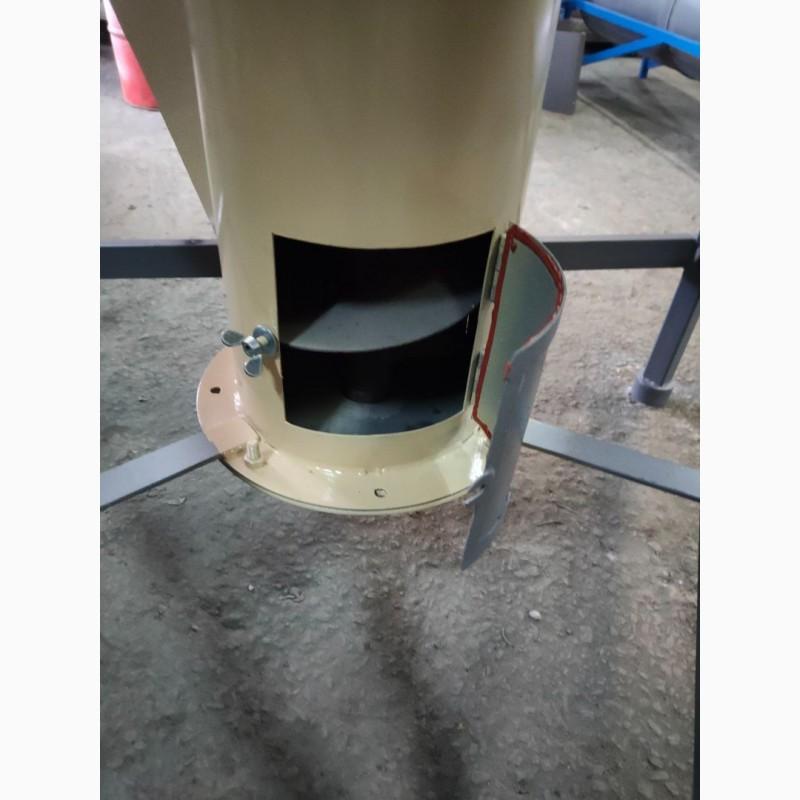

- hatch for cleaning;

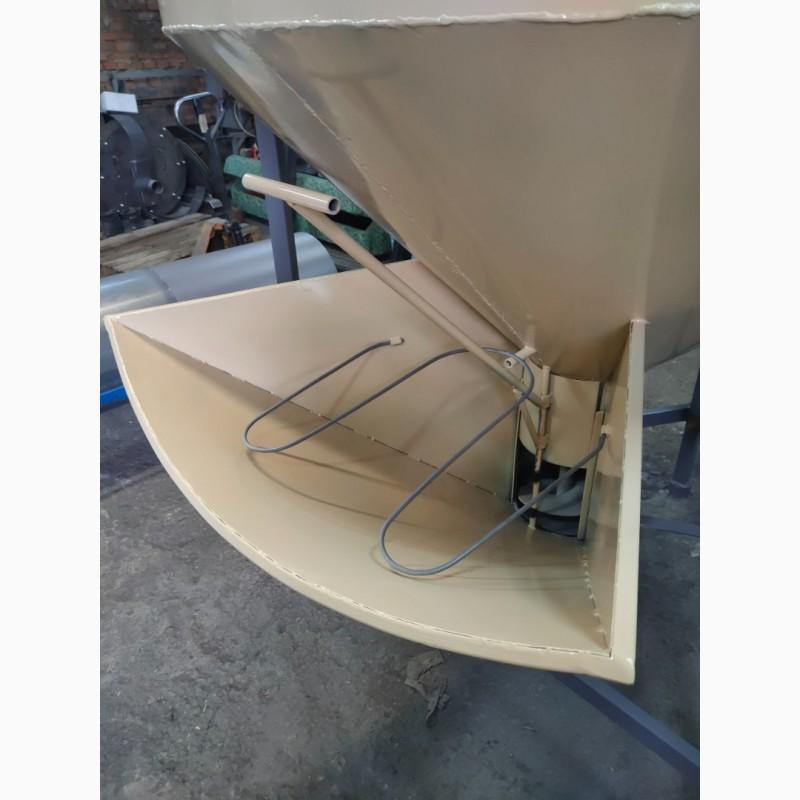

- the possibility of filling products through the loading hopper (manually or with a screw dispenser);

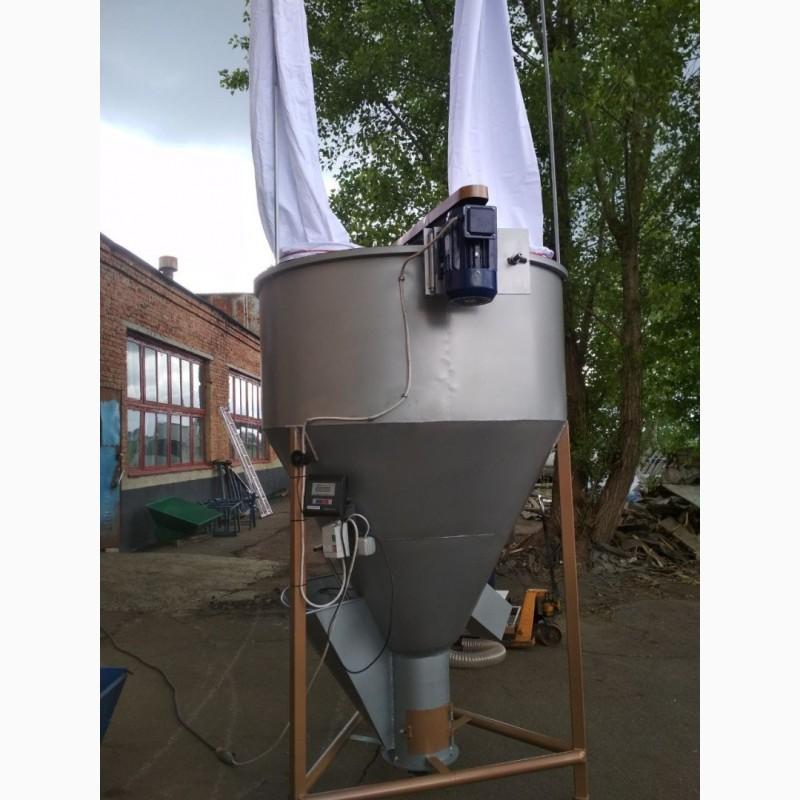

- upper dust collection (possibility of making a side one for rooms with a low ceiling;
- inspection windows;

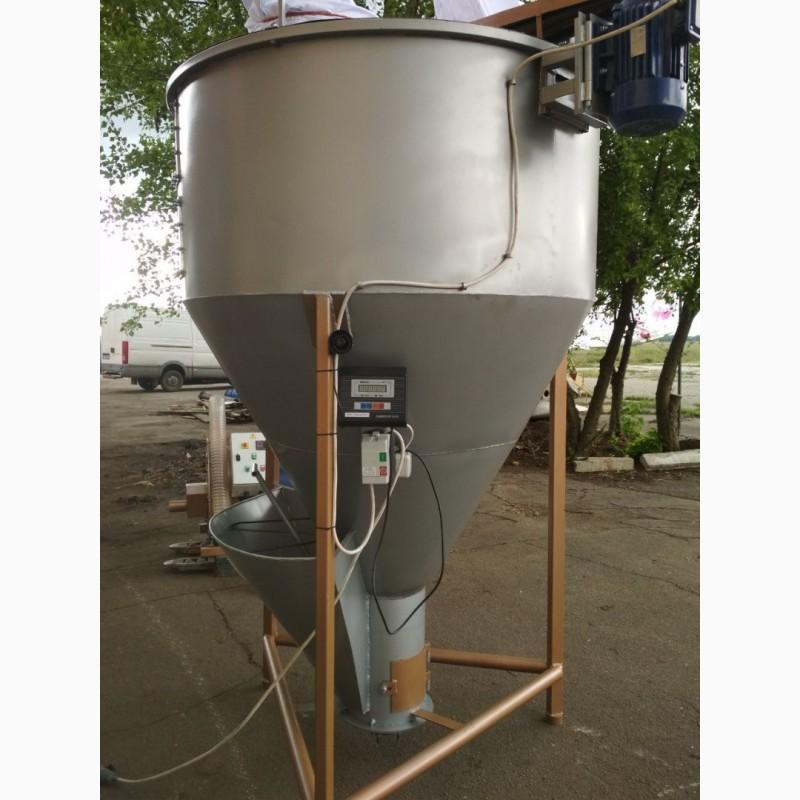

- electronic scales.(//tractor-service.com)

Areas of activity:

- poultry farming;
- animal husbandry;
- equipment for preparing fodder for agricultural animals;
- equipment for farms and individual farms.

It is possible to make it from St-3 black metal and stainless steel as needed!!!

The feed mixer can be made to order in any volume!!!

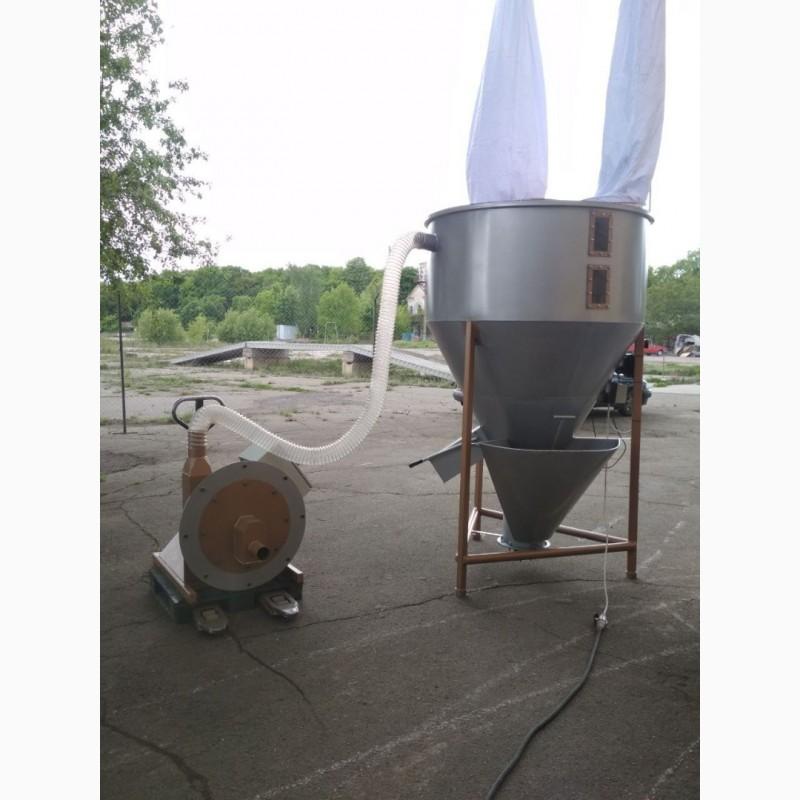

Often, MKZ are equipped with a pneumatic hammer crusher!

Shredders are designed for grinding grain, paper, straw, sawdust, plastic, etc.

The grinder mill independently collects raw materials and delivers them to the mixer. The volume of grinding and loading into the mixer depends on the raw material and the distance to the mill.

The mill is equipped with: a stone catcher, a magnet,a hose 3m for suction (it is possible to order a longer length if desired), a 3m hose for feeding into a feed mixer, a collector.

Type: suction-ejection, hammer.

Types of pneumatic crushers:

7.5 kW - 400-700 kg/h;
11 kW - 700-1000 kg/h;
15 kW - 1200-1500 kg/h;
22 kW - 1500-2000 kg/h.

Made for you to work, not repair!)

Call the specified phone number! We will consult and select the design you need!!!

Calculation (payment):

Cash (prepayment);
Cashless with VAT.

Production period from 14 working days!!!
