Mechanical counter fordiesel fuel pumping

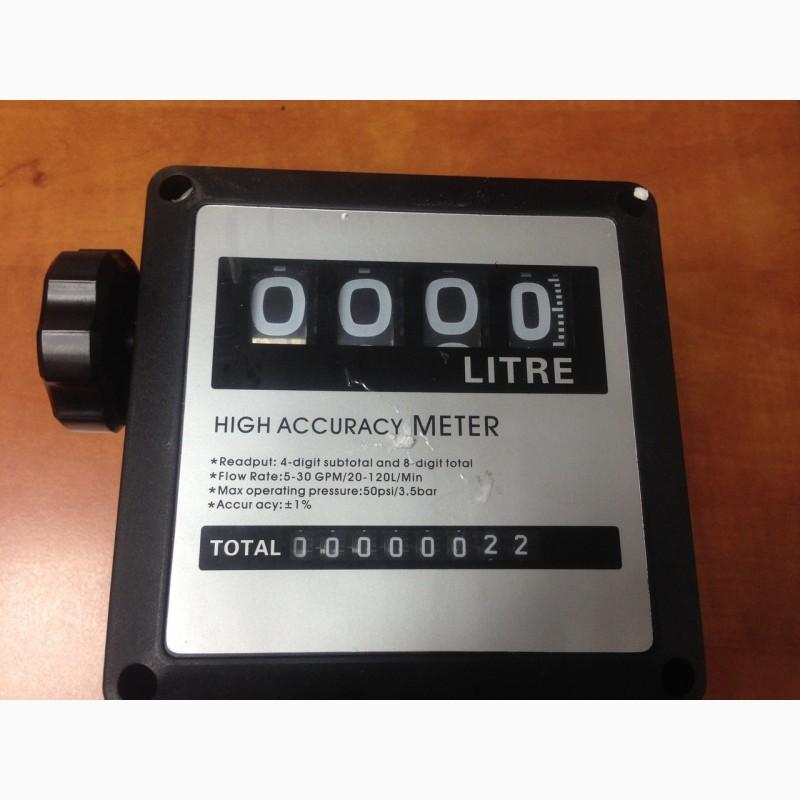

Fuel meter (flow meter) FM 120 - intended for non-commercial accounting of diesel fuel released into the tanks of vehicles. This fuel meter is equipped with a mechanism for resetting the one-time indicator to zero, a drum display and a total indicator. The fuel flow meter is light, easy to use, inexpensive and reliable.

The fuel meter (flow meter) is designed specifically for non-commercial use.

Device of a fuel meter (flow meter):

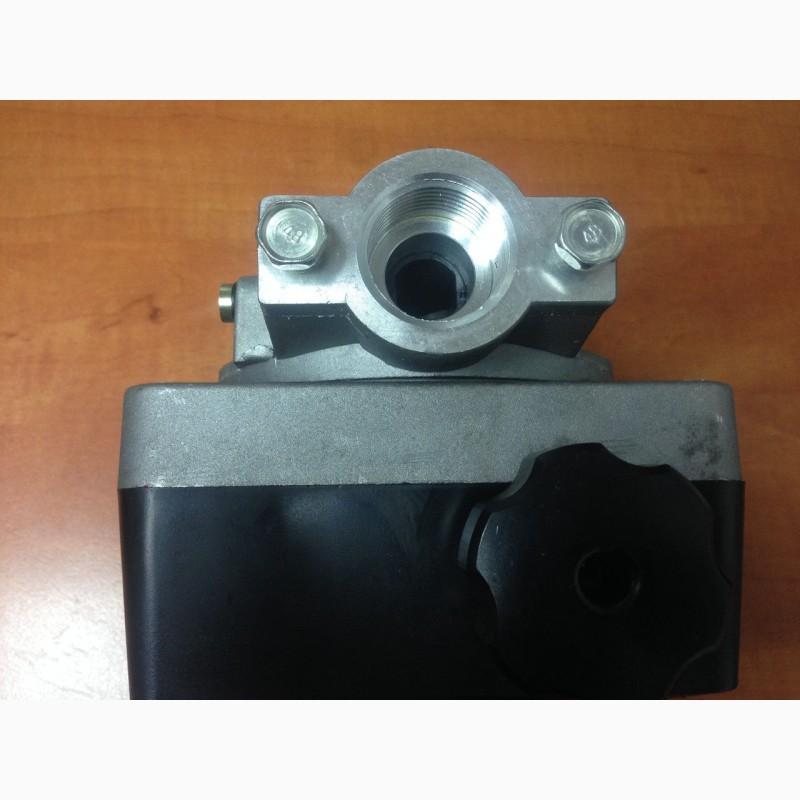

Counter type dis. fuel - disk. Body partspumps cast from aluminum alloy. The housing of the FM-120 diesel fuel counter (flow meter) is attached to the accounting mechanism, which can be mounted with a 90-degree turn, which allows it to be oriented in various positions. The fuel meter has a calibration screw, with the help of which the accuracy of the release is adjusted. This setting should be performed by a specialist in equipment for oil depots who has practical skills and the appropriate level of training.

The reset handle is used for zeroing the diesel fuel flowmeter, shown in one-time accounting.

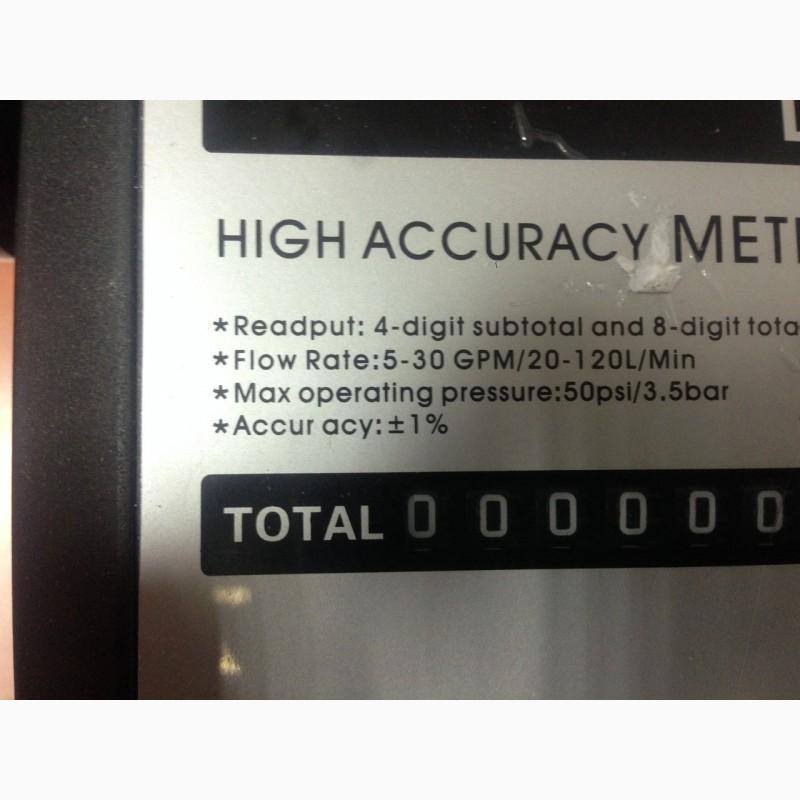

Technical characteristics of the flowmeter FM-120 :

Fuel type: diesel fuel, kerosene;(//tractor-service.com)
Productivity: 20-120 l/min;
Maximum working pressure: 0.3 MPa;
Permissible error: ±1%;
The limit of the index of one-time accounting: 9999 l;
The limit of the index of total accounting: 99999999 l;
Operating temperature: -10-+45 ° C;
Connection size: 1”G (internal thread); 177
Габаритные размеры: 185х185х170 мм;
Weight: 1.9 kg.
Fuel meter (flow meter) FM-120 has special features:
Compactness and ease of operation;
They do not require the formation of a liquid flow;
They do not require additional equipment;
Ease of installation and operation;
Максимальная комплектация от поставска.
