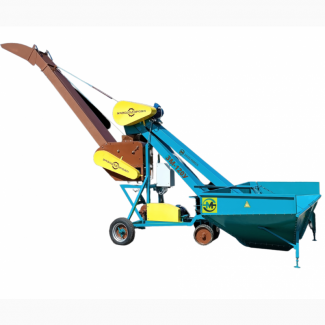

Zernometach self-propelled ZMB-120U Zernometatel Bunkerny ZMB-120U, Dnepropetrovsk region.

Zernomet ZMB-120U independently drives to the loading place;

the grain thrower hopper is lowered into the working position and rests on the surfacewarehouse;

a car, loader or tractor with grain drives up to the hopper of the grain thrower;

grain from a car, trailer or bucket is poured into the ZMB-120U hopper;

the conveyor of the grain thrower loads the grain from the hopper into the trimmer, which ejects it through a special guide pipe to a height of up to 10 meters and up to 25 meters in length;

The grain flying out of thetrimmer pipe is sent toa truck, a trailer, a grain conveyor, a wagon, a container and other transport or it is stored in sides up to 10 meters high.

The productivity of the ZMB-120U grain thrower with a hopper is up to 120 tons of grain per hour, which is 2 times more than the productivity of the ZM-60 grain thrower.

Advantages of the ZMB-120U grain hopper loader (reinforced)(//tractor-service.com)

can be used in ports, railways, grain warehouses and on open currents;

provides accurate and fast loading, creation of edges;

speeds up the process of unloading vehicles and simultaneous storage of grain material.

Technical data of the grain loader ZMB-120U

Productivity up to 130 t/h (nominal -120 t/h)

Throwing height - 10 m

Range - 25 m

The dimensions of the bunker are 3200/1520/870 mm.
