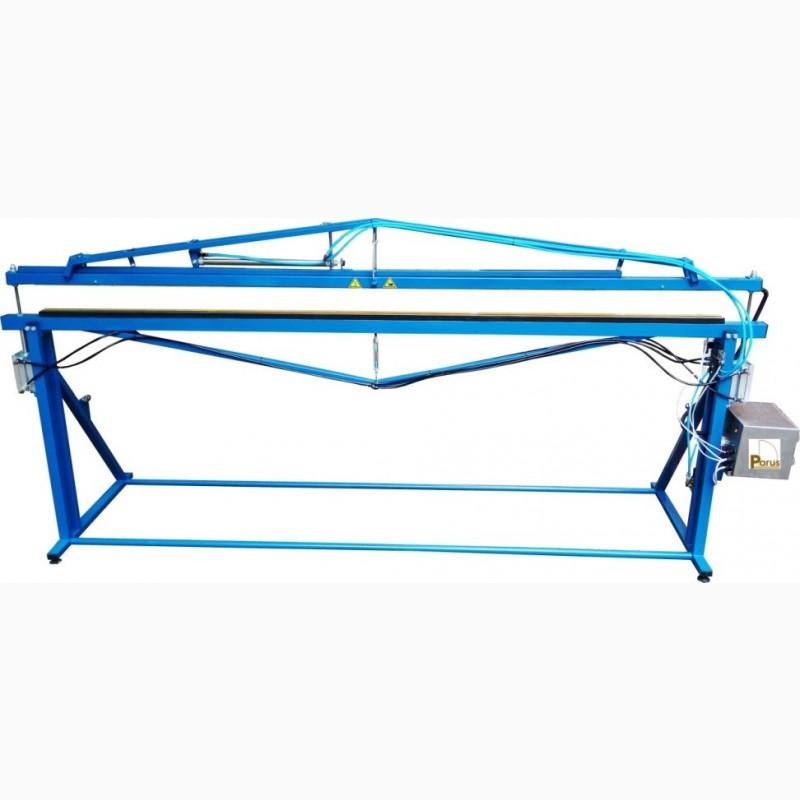

Film sealer with long seam 1300, 1500, 1700, 2000, 2200, 2500 mm mechanical and pneumatic, Kyiv

The installations are designed for the automatic production of inserts in BIG-BEGs from polyethylene film of any thickness, with folds.

The pneumatics provide the specified compressive force of the film layers during welding, and the controller for controlling the welding process guarantees 100% repeatability of the specified mode.

Technical characteristics
The seam is flat, width - 3 mm (either 2 parallel seams or 1 cutting seam)
The number of seams is 1 (or 2)

Long seam - 1300, 1500, 1700, 2000, 2200, 2500 mm (depending on the model)(//tractor-service.com)
Pneumatic knife - parallel to the seam (or mechanical)
The power consumption is up to 3 kW.
Economic pulse mode of operation
The drive of the welder is pneumatic (or mechanical)
Positioning and moving the film for welding is manual.
Number of film roll holders - 1
Warranty 12 months.

Own production.
