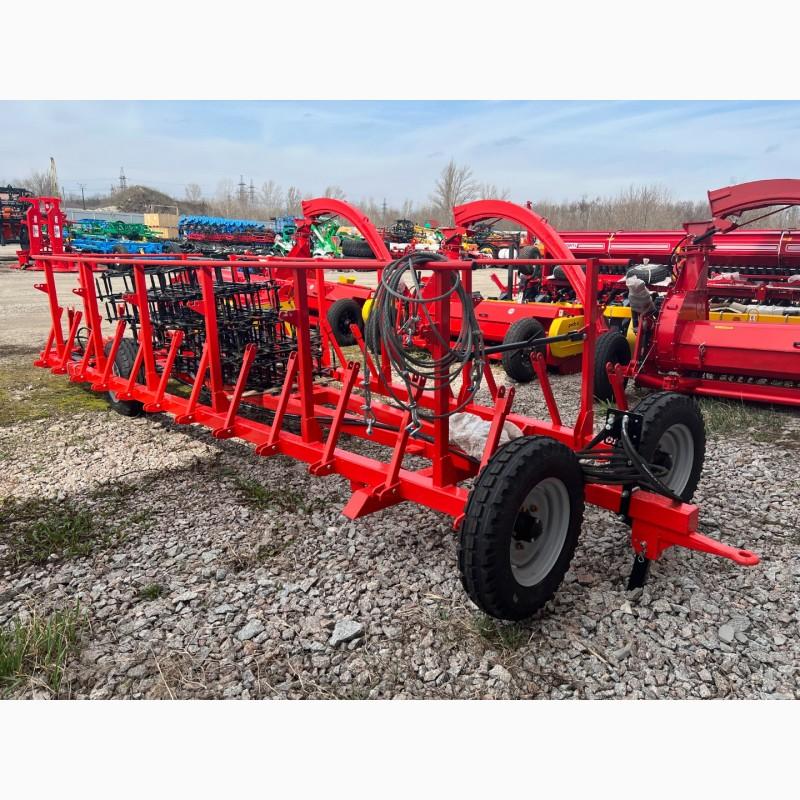

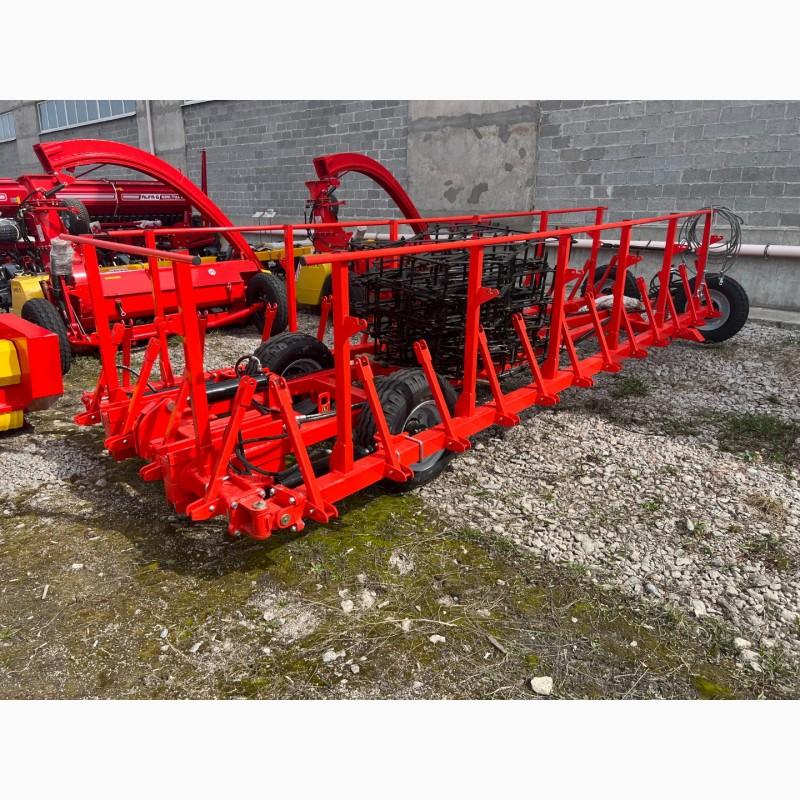

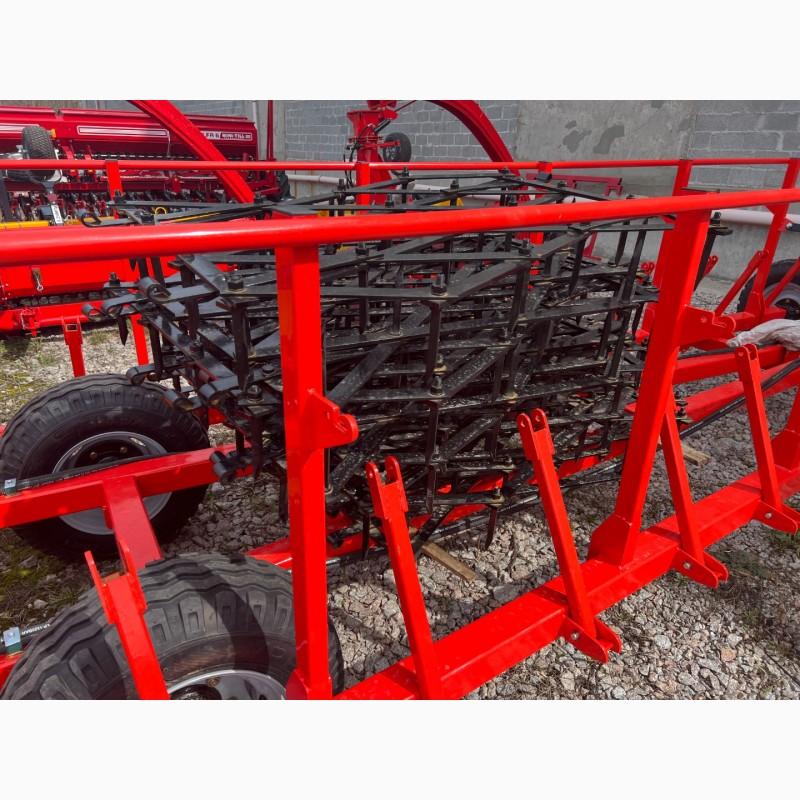

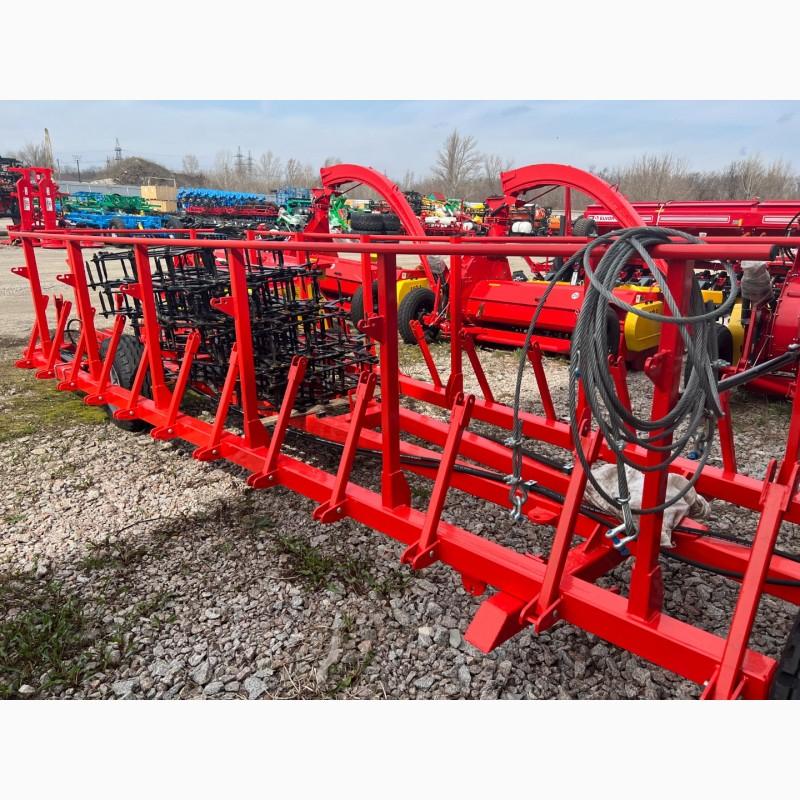

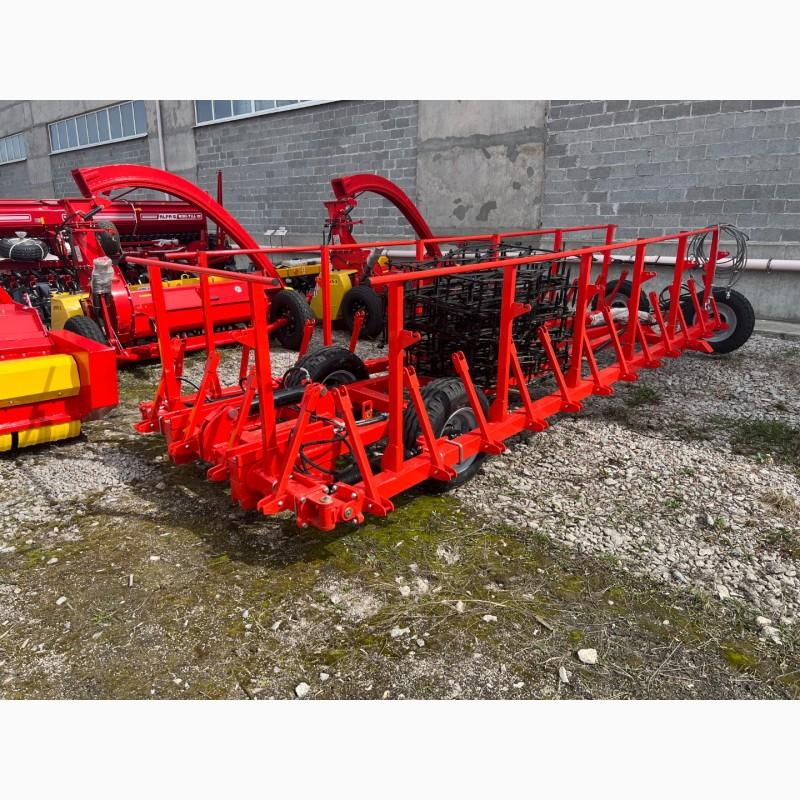

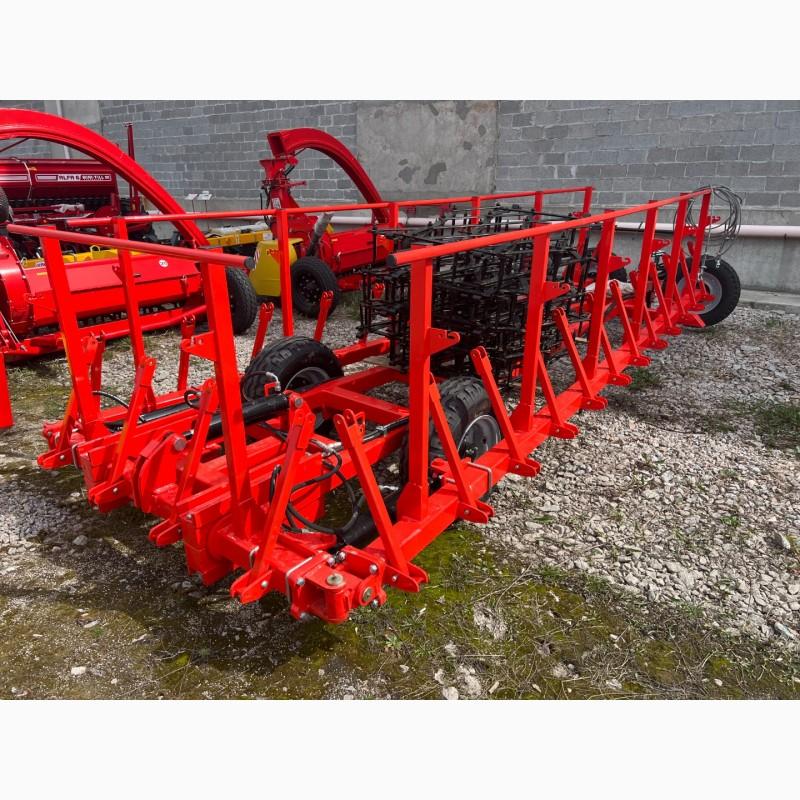

Hydraulic tine harrow BHP-14 Oscar under MTZ Belarus, Kirovohrad region.

We offer a harrow hitch or hydraulic BHP-14 harrow (fully hydraulic folding and unfolding, and also hydraulically bringing it into working position)

Undertractor MTZ, New Holland,CASE and others.

The width of the capture is 14 meters.
Можно укоплектовать
- with medium harrows (weight of honest 38 kg)
- with heavy harrows (weighing 42 kg)
- with hydraulic folding of the wings

Productivity 9 ha/h
Working speed 9 km/h(//tractor-service.com)
Transport speed up to 20 km/h
The working width of capture is 14 m.
The number of sections of tooth harrows is 14 pcs.
The processing depth is 8 cm.
Overall dimensions in working position (LxWxH), m: 8.47x14.1x0.8
Overall dimensions in transport position (LxWxH), m: 6.8x3.5x1.4
The weight of the unit is 1650 kg.
Tractor power (recommended) is 80 hp.
Trailer type

It is intended for loosening the upper layer of the soil, leveling the field surface, destroying the soil crust, crushing clods, destroying and combing weakly rooted weeds on crops of grain crops and technical crops, covering seeds and fertilizing.
The harrow ensures the quality of work at soil moisture from 13% to 27%. The presence of harvest residues (scattered shredded straw of grain and high-stem crops) is allowed on the field. activities
