Trailed sprayer sprayer OPK 3000-22 "KRONOS" (ASU) Boguslav, Kirovohradskaya region.

• The 22-meter-long volumetric construction hydraulic rod is designed for intensive use and optimal load distribution. During the production of the rod and frame, sandblasting is performed followed by powder painting, which guarantees the durability of the paint coating and reliable protection of structures against corrosion.
• The parallelogram suspension of the bar with two hydraulic cylinders for lifting the bar and a nitrogen energy accumulator ensures the smoothness of the bar's movement and damping of dynamic loads, and allows you to smoothly change the working height of the bar from 0.6 to 1.85 meters even during movement.
• The end sections of the rod are equipped with a spring protective mechanism, which ensures the deflection of the section in the horizontal and vertical planes when it collides with an obstacle, and its return to the working position without damage.
• Polyethylene tank of 3000 liters.

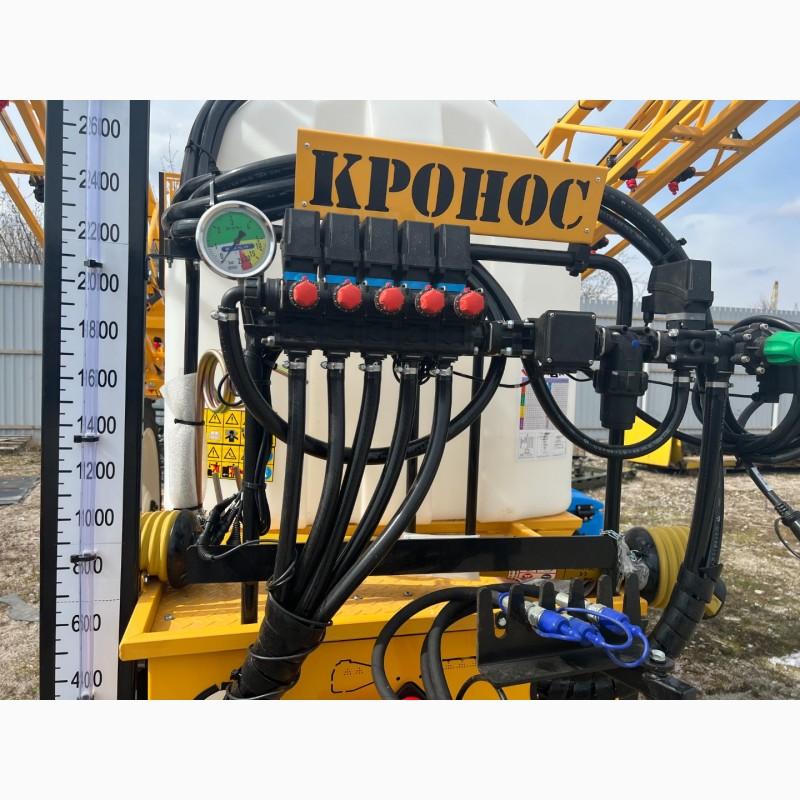

• Two injection mixers with ceramic nozzles installed at the bottom of the tank maintain a constant concentration of the working fluid.
• Stepless adjustment of track width from 1550 mm to 2100 mm.
•Wheels of large diameter R42 allow to work at high speed and provide clearance of 650 mm.
• The use of the pump of the Italian company "Annovi Reverberi", communication elements of the Italian company "Arag" and sprayers of the German company "Lechler" - the best manufacturers of components for sprayers, ensures reliable operation of the sprayer and increases the efficiency of pesticide use.

TECHNICAL CHARACTERISTICS

1. Width of capture, m 22
2. Tank, l 3000
3. Annovi Reverberi pump, l/min 160
4.Tyre size, standard/option 9.5R42(//tractor-service.com)
5. Track width, mm 1550-2100
6. Clearance, mm 650
7. Weight, kg 1700
8. Working height of the bar, mm 600-1850
9. Cardan shaft T2, L=1010mm
10. The injector mixer kit is installed
11. ARAG computer – Bravo 180S (3 sections) installed
12. A 28-liter mixer with a device for washing canisters is installed.
13. Nozzles for 3 sprayers (3 Lechler IDK injectors) installed
14. The kit "Tank flushing with a tank of 170 l for clean water" is installed
15. ARAG computer – Bravo 400S LT with built-in GPS navigator and automatic closing of sections (7 sections)
Option

ATTENTION! State compensation 25%
Warranty 1 year
Free delivery and commissioning https://tractor-service.com
