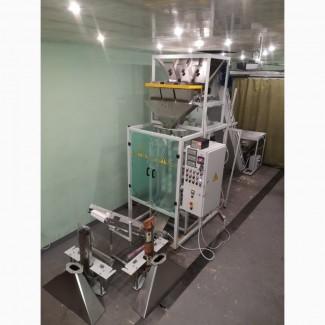

Automatic packaging machine UFU-5 model 1, Kharkiv region.

UFU-5 packaging and packaging installation (model-1) is intended for packaging and packaging of food and non-food loose, non-clumping and non-sticky products (cereals,sugar, dragees,long pasta products no more than 65 mm, etc.) into a polypropylene or multilayer film in automatic mode. The installation is equipped with one, two or three electronic weighing dispensers.

Technical data:

Productivity, pack/min - up to 28

Allowable error - according to DSTU

Dosing limits - 0.03-2.0 kg

Film width, mm, up to 650 450 350

Package length, mm, up to 400 360 255(//tractor-service.com)

Mains voltage/current frequency, V/Hz - 220-230/50

The installed power is 1.5 kW.

Overall dimensions, no more than 1150 x 1600 x 2820 mm

The volume of the loading hopper is not less than 110 l

Mass - no more than 380 kg.

Pressure of compressed air, bar - 5-7

Compressed air consumption, l/min - not more than 500
