Autopilot FJ Dynamics with RTK, Kharkiv region.

FJ Dynamics, young progressive company following in step with time.

The development of an electric autopilot (propulsion device) has proven to be a reliable, advanced solution for the Ukrainian market, the autopilot kit is an ideal solution for a "small" and "medium" farmer. "GEOPRAKTIK" LLC is an official dealer of FJ Dynamics.

An affordable solution providing an accuracy of +/- 2.5 cm.

- Autopilot does not require unlocking, RTK straight from the factory!
- The first budget propulsion device with ISOBUS.
- Does not require additional purchase of modems (GSM rtk and radio modems are integrated, the improved GSM antenna will allow to work from the network of basic RTK GNSS stations in places with poor quality of mobile communication).
- Quick installation of the system (about 3 hours) will allow you to change the autopilot to seasonal equipment.

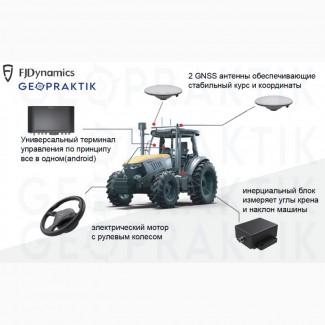

The main components of the electric autopilot:
- Universal terminal of an electric autopilot
The universal terminal (RTK monitor) provides control and display of all autopilot processes, the universal and familiar Android operating system will allow you to quickly understand the settings and operation of the system. Russified interface.
The monitor is designed on the principle of "all in one", on board a built-in GSM RTK modem 2G/3G/4G (receiving RTK corrections from networks of base GNSS stations), a built-in radio RTK modem, in the case of a complete lack of mobile communication, will allow you to work from your own field base GNSS RTK station.
- Electric motor with steeringwheel
An electric motor with a steering wheel (steering device), a powerful motor with a maximum torque of 30 Nm, will allow you to turn a very tight steering wheel without compromising the accuracy of the system. Universal power supply system 12 or 24 B.
The fastest installation and fastening for all types of equipment.
- System of 2 GNSS antennas
The system of 2 GNSS antennas allows you to additionally calculate not only the coordinates, but also the course, which contributes to a more accurate determination of the location of the car in space. The implementation of the receiving part in this format gives the possibility to get on the linetractor already at a speed of 0.8 km/h, and also implement reverse movement.
- Inertial measuring module IMU
IMU inertial measurement module. The built-in accelerometer and gyroscopes calculate the actual location of the tractor (roll, pitch, yaw) to compensate for slopes and side shifts of the machine on hilly areas and slopes.
- Sensor for determining the angle of rotation of the wheels
The sensor for determining the angle of rotation of the wheels. Allows you to accurately determine the angle of rotation of the tractor wheels, depending on the change in the trajectory of movement.

Technical characteristics of the autopilot:
FJ Dynamics Electric Autopilot
Monitor (autopilot control terminal):
- Dimensions - 300 ×190 ×43mm
- Resolution - 1280 × 800 pixels
- Power supply - 10V ~ 30V
- Protection - IP65
- Working temperature: -30 ℃ ~ + 75 ℃(//tractor-service.com)
- Storage temperature: -40 ℃ ~ + 85 ℃
- Operating system - Android
- Screen - 10.1 - inch capacitive touch screen
- Memory - 2 GB RAM, 8 GB ROM
FJ Dynamics GSM/GPRS RTK Modem:
- 4G, compatible with 2G / 3G
- Antenna gain factor (dB): 2 ± 0.5
Radio RTK modem FJ Dynamics:
- Work with basic radio protocols, incl. and third-party manufacturers.
- Frequency range: 433/470 MHz; VSWR: ≤2.0
- Gain factor (dBi): 1 ± 0.5
- The dimensions of the radio antenna are 490 * 82 mm.
Controlling GNSS equipment:
- GNSS receiver - multisystem, multifrequency, RTK
- Received signals - GPS L1 / L2; GLONASS L1 / L2; BDS B1 / B2 / B3
- Antenna power supply - 3.3 ~ 12 V, Operating current: ≤45 mA
- Dimensions of antennas - 152 * 63 mm
IMU inertial measurement module FJ Dynamics:
- Power supply - 5V
- Accelerometer accuracy - 0.09mg
- Gyroscope accuracy - 0.004°/s
- Course angle accuracy - 1°
- Roll and pitch angle - 0.5 °
Angle of rotation sensor:
- Power supply - 5V
- Refresh rate - typical 3.4 kHz
- Resolution: <0.1 °
- IP protection - IP67
- Working temperature: -40 ℃ ~ + 85 ℃
Electric steering:
- Electric motor-power supply: 12V / 24V
- Maximum torque - 20 Nm (12 V); 30 Nm (24V)
- IP protection - IP65 https://agrotorg.net
