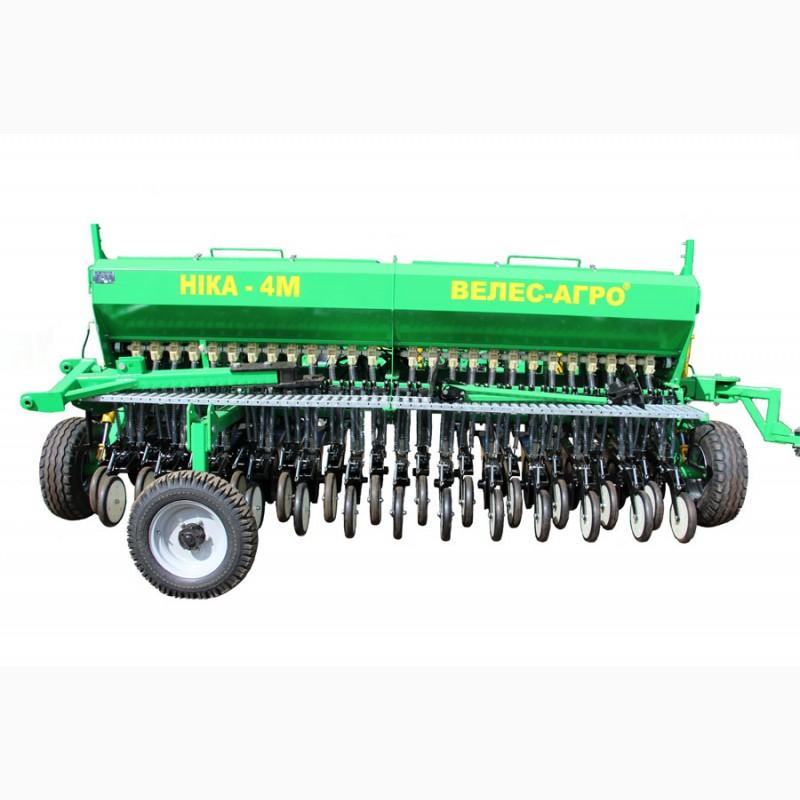

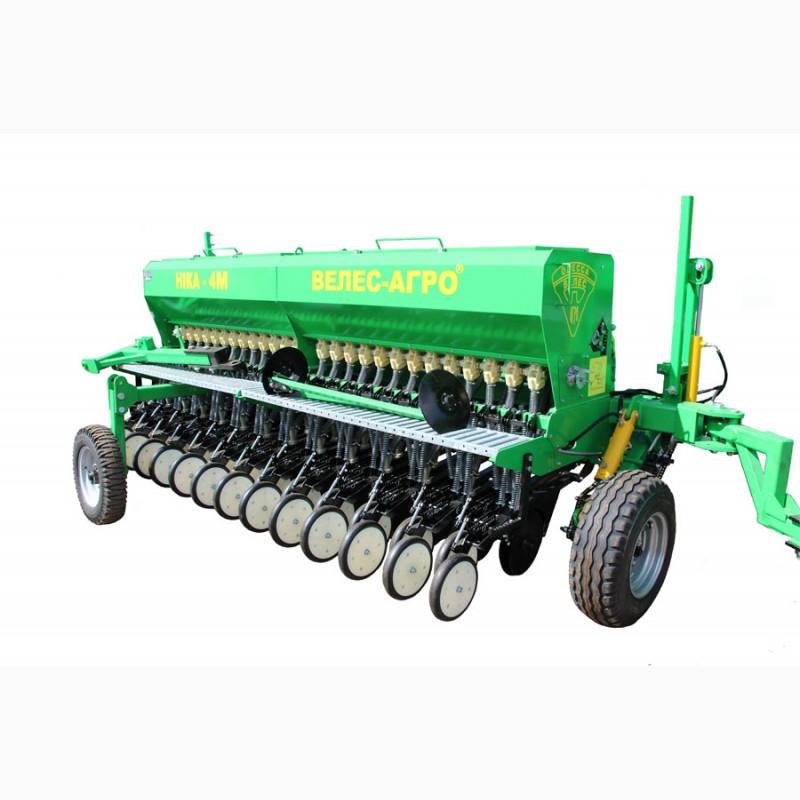

Mechanical grain seeder szm nika 4 (trailer), Vinnytsia region.

*The price does not include VAT and DISCOUNT (additional 25%-40% compensations)
Grain seeders mechanical NIKA series SZMtrailer-mounted intended for row sowing of grain, legumes, industrial crops, as well as grasses, vegetables and grain mixtures with simultaneous application of mineral fertilizers, with minimal tillage technology.

"Veles-Agro" LLC has developed a new series of mechanical seed drills SZM, intended for row sowing of cereals, grasses, vegetables, mixtures, legumes, technical and other crops using minimal tillage technology, with a coulter pressure force of 80 to 120 kg and a seed rolling system.

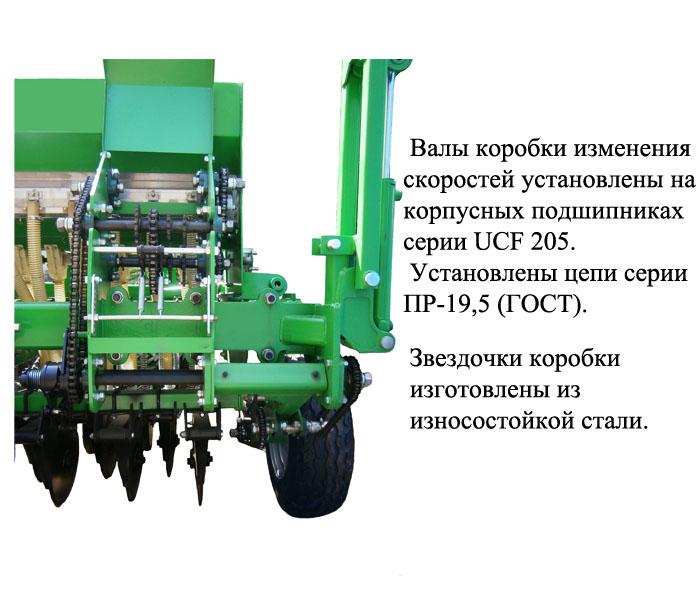

The time-tested coil system for sowing seeds in the SZM series planter has been improved with the use of the latest technologies for surface treatment of parts and the use of high-strength and wear-resistant components in their manufacture. Thanks to the combination of the screw method of adjusting the coils to the set sowing rate and switching the speed of rotation of the gearbox, the seeder can be set both for the micro-sowing rate from 6 kg/ha and the macro-sowing rate up to 400 kg/ha, and when equipped with a small seed hopper from 1 kg/ha to 40 kg/ha.
For aggregation, it is recommended to use a tractor, traction class — 1.4

According to the results of the work of the planters in 2010‒2014 the company made changes regarding the adaptation of seed drills in Ukrainian fields, namely:

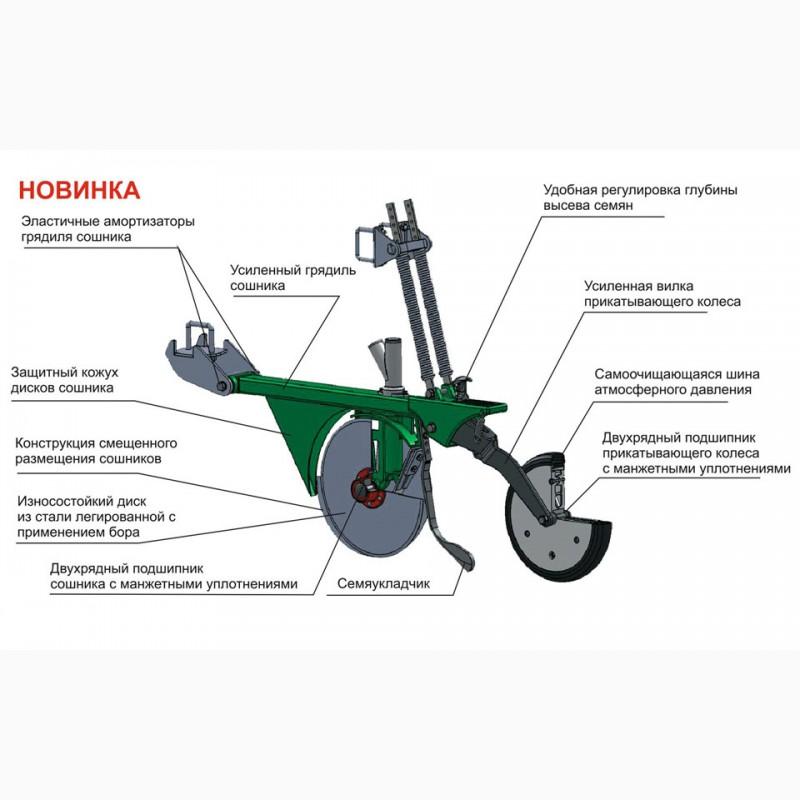

spacing of coulters for improved passage of soil and crop residues between them;
extended shock absorber rod of the coulter;
left and right threads of the screws for fastening the coulter disk;
widened necks of grain and fertilizer bunkers;
the mechanism of synchronous operation of the hydraulic cylinders of the seed drill lift;
adjustment washers of the rod stroke of the working hydraulic cylinder.
When using resource-saving technologies, most grain crops are sown after minimal tillage with disk harrows. In order to obtain friendly and powerful seedlings, it is necessary to choose a universal planter, which, with the least labor costs for adjusting the norms and depths of sowing, would be able to provide first-class sowing of a wide range of agricultural crops.
(//tractor-service.com)
Type of trailed seeder
Working width of capture (m) 4
Transport width (m) 5.2 / 2.5
Productivity for 1 hour of the main time (calculated) (ha / h) 2.5 ‒ 4.0
Number of coulters (pcs) 26
Row width (cm) 15
Pressure of coulters on the soil (kg) 20 ‒ 100
Grain hopper capacity (l) 920
Fertilizer hopper capacity (l) 350
Grass hopper capacity (l) 75
Seed sowing depth (mm) 10 ‒ 89
Sowing rate of cereals (kg/ha) 8 ‒ 400
Sowing rate of grass bunker (kg/ha) 1 ‒ 80
Fertilizer application rate (kg/ha) 25 ‒ 250
Estimated productivity (ha/h) 2.5 ‒ 4.0
Unit weight (kg) 2,050
Required power of the tractor (hp) 82
Tractor traction class 1.4
