TELESCOPIC Burt stacker ASF950, Kyiv region.

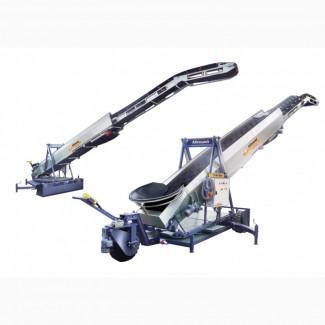

Rotator ASF950 Allround
The Allround ASF 950 bag stacker is used for storingpotatoes,beets, onions and other vegetables. Vegetables enter the rubberized receiving neck and are fed along the chevron belt at a distance of up to 13 meters and at a height of up to 7 meters. Telescopic pallet stacker can work in automatic mode without constant operator involvement.
It can also be used as a high-performance loading conveyor in any line.
1. Minimum length: 6350 mm
2. Maximum length: 9500 mm
3. Tape width: 600 mm.
4. Minimum turning radius: 7000 mm.
5. Maximum turning radius: 13000 mm.
6. Minimum length in front ofwheels: 3500 mm.
7. The maximum length in front of the wheels: 8000 mm.(//tractor-service.com)
8. Entrance height: 1000 mm.
9. Maximum output height: 5400 mm.
10. Height adjustment: hydraulic.
11. Turning system: on rails.
12. Engine belt: 400 V / 5.5 A / 2.2 kW
13. Motor trolley: 400 V / 0.9 A / 0.37 kW
14. Turning system 400 V / 0.45 A / 0.18 kW
15. Plug: plug 5
16. Cable: standard 10 meters.
17. Remote control: included
18. Weight: 1100 kg.
