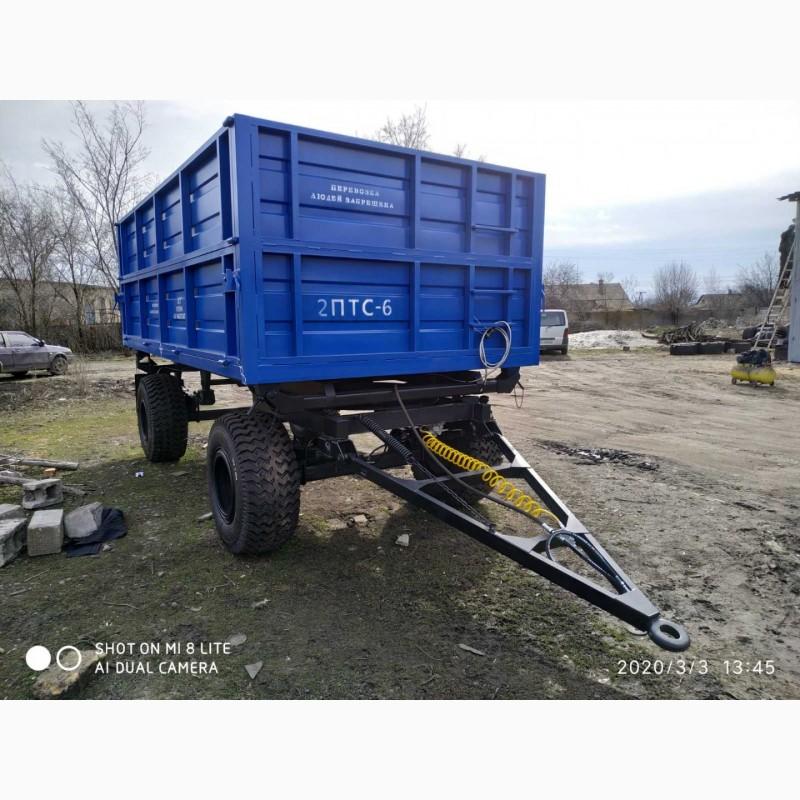

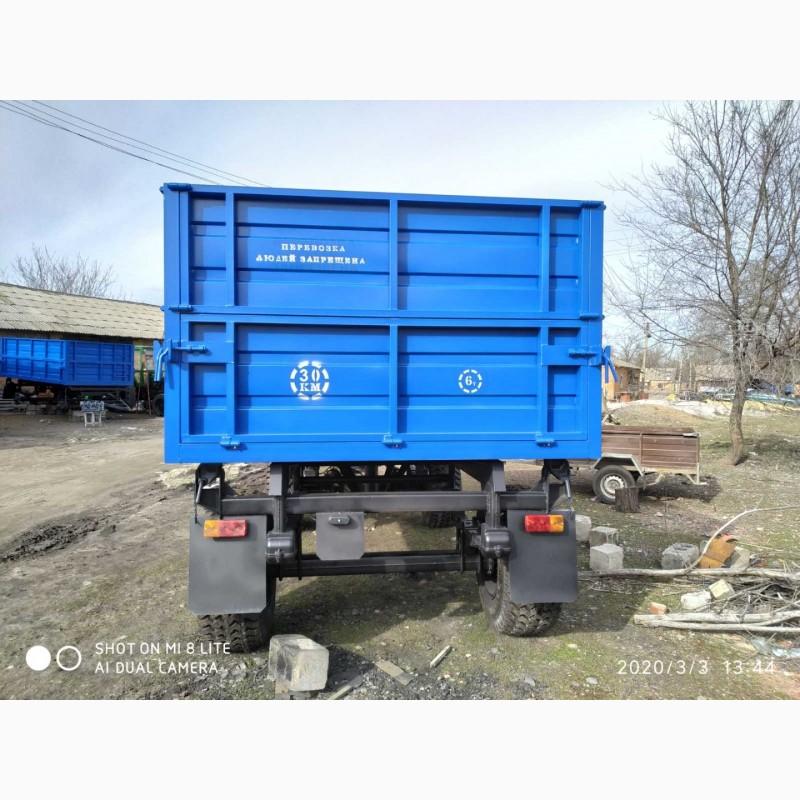

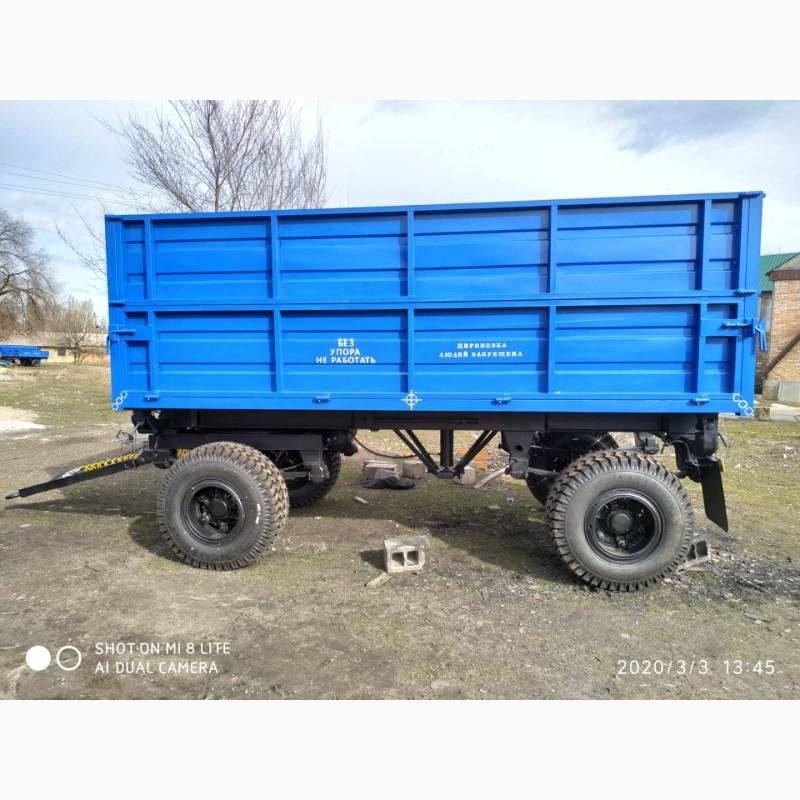

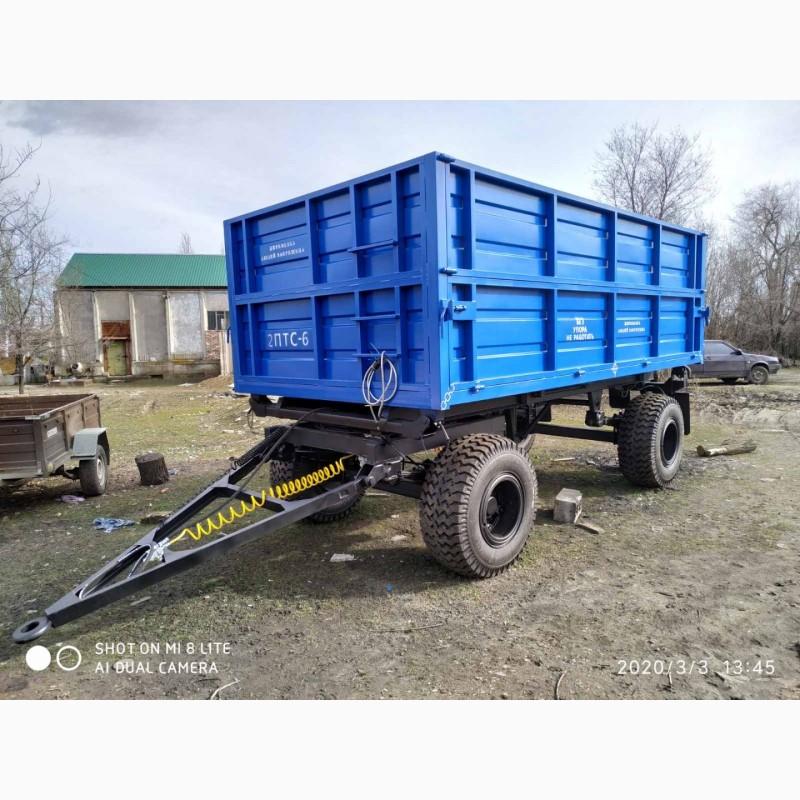

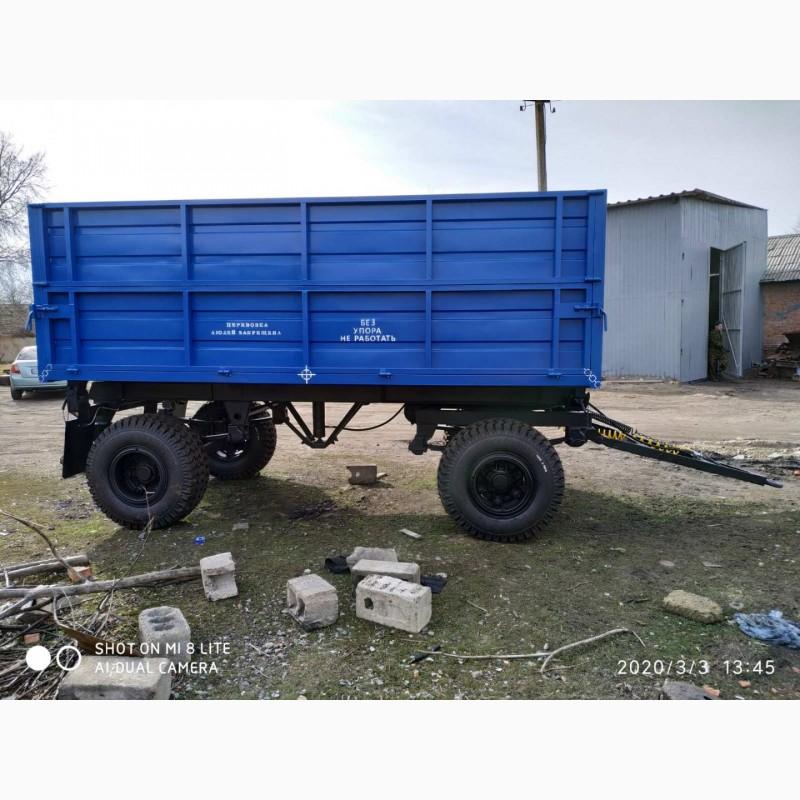

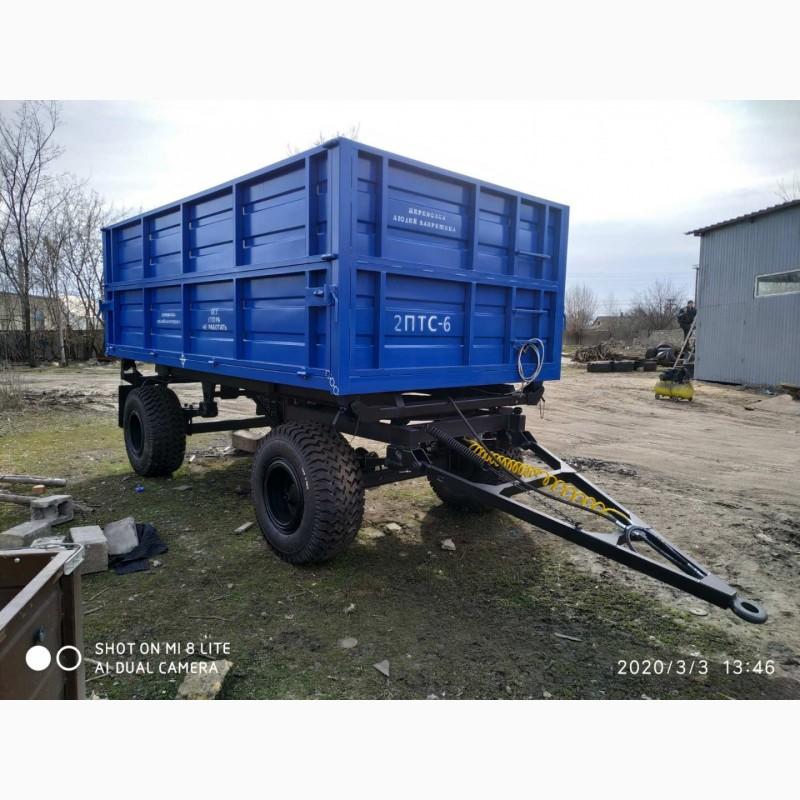

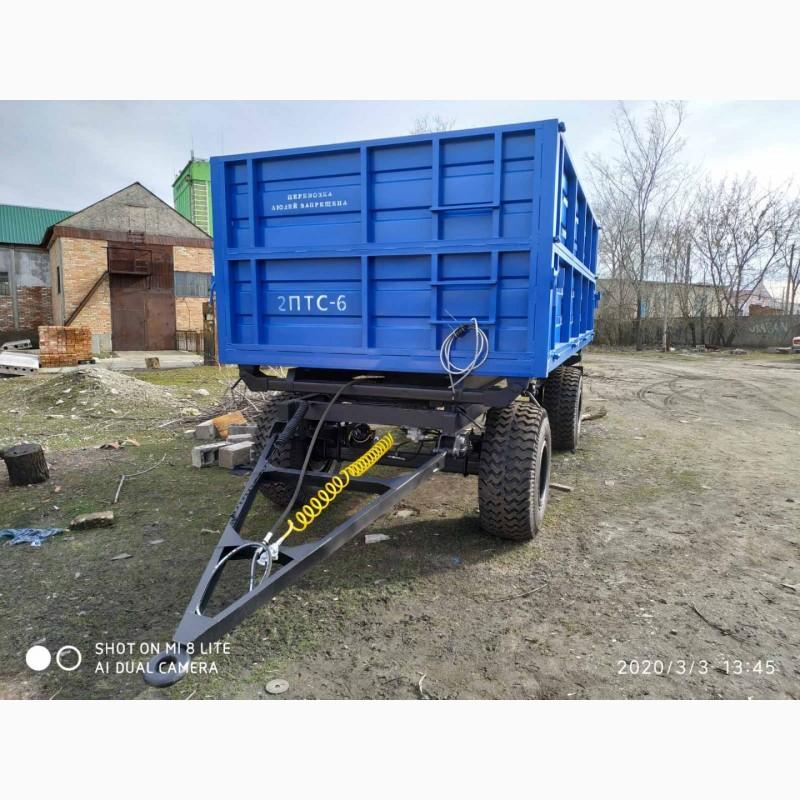

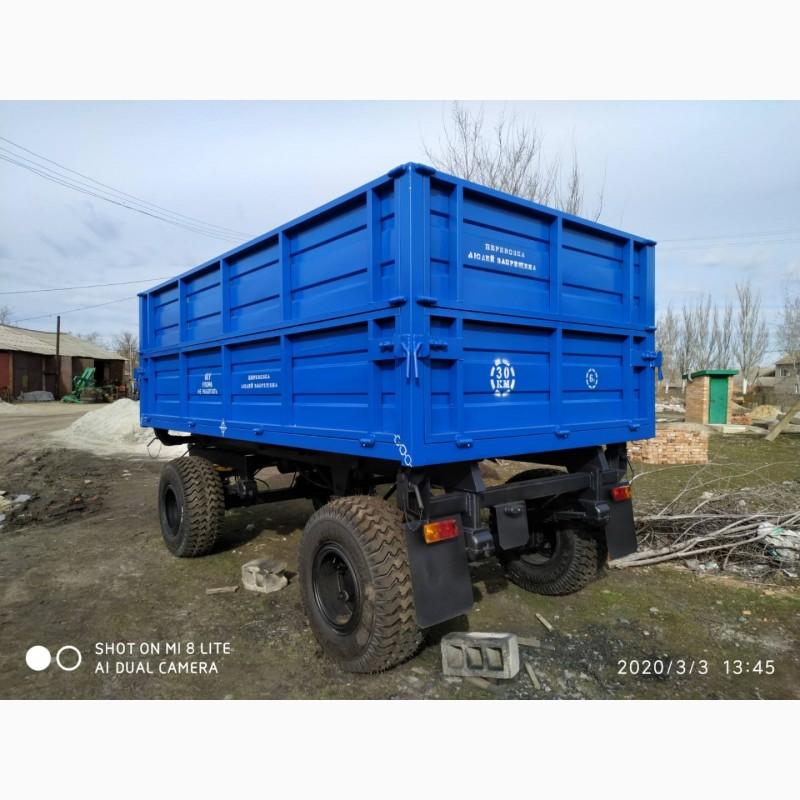

Tractor trailer 2PTS-6, Zaporizhia region.

Production: Ukraine. The 2PTS-6 tractor trailer is new, never used, manufactured in 2020. Warranty - 12 months.
Quantity – 1 unit.
Technical characteristics:
1. The condition is new, i.e. such that it has not been in use, no earlier than 2020.
2 Payload, (at least) 6,000 kg
3. The weight of the trailer is approximately 3100 kg.
4. Internal dimensions of the platform:
the width of the platform is at least 2,500 mm.
the length of the platform is not less than 4,200 mm.
5. The height of the main board is not less than 600 mm.
6. Additional (extra removable metal) board +
7. The height of the additional (extra) board (metal) is at least 600 mm or 400 mm at the request of the customer.
8. Overall dimensions of the trailer, mm
length 6300
width 2500
height without superstructure/with superstructure 1900/2400
9. Platform volume:
with a main board of at least 6.0 m3(//tractor-service.com)
with an additional (extra) board of at least 12 m3
10. The maximum speed of movement is 40 km/h.
11. Overturning the platform Back, to the sides
12. Lifting mechanism Telescopic hydraulic cylinder
13. Front axle Pivot-circular
14. Resorna suspension
15.Tires KF-105 15.5/65 -18 n.s.10
16. Braking system Pneumatic, on the front axle. the 2PTS-6 tractor trailer of our production is not equipped with a mechanical parking brake, because when the trailer is disconnected from thetractor, the air trailer system automatically puts the latter into parking mode (the principle of automatic braking). To put the trailer into operation mode, it is necessary to connect the air brake system of the trailer to the tractor or bleed air from the air accumulator (receiver).
17. Number of wheels:
on the front axle (pcs.) 2
on the rear axle (pcs.) 2
18. Tractor class Aggregated with tractors of class 20-30
19. Type of tractor traction and coupling device TSU-2/TSU-2B type 1.4 and above
Track size, mm
Base, mm 1850
2900
Angle of inclination of the platform, degrees. 50
Working pressure in the hydraulic system, MPa 20
The height of the load on the floor of the body, mm 130
