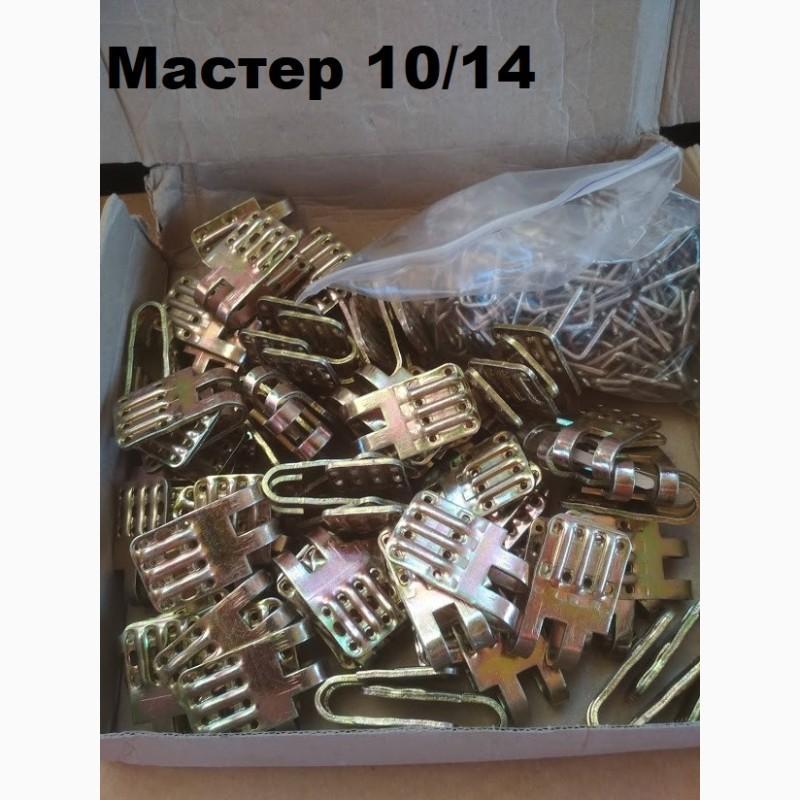

Connectors зеханительные увернальные механические Master 10/14, Kharkiv region.

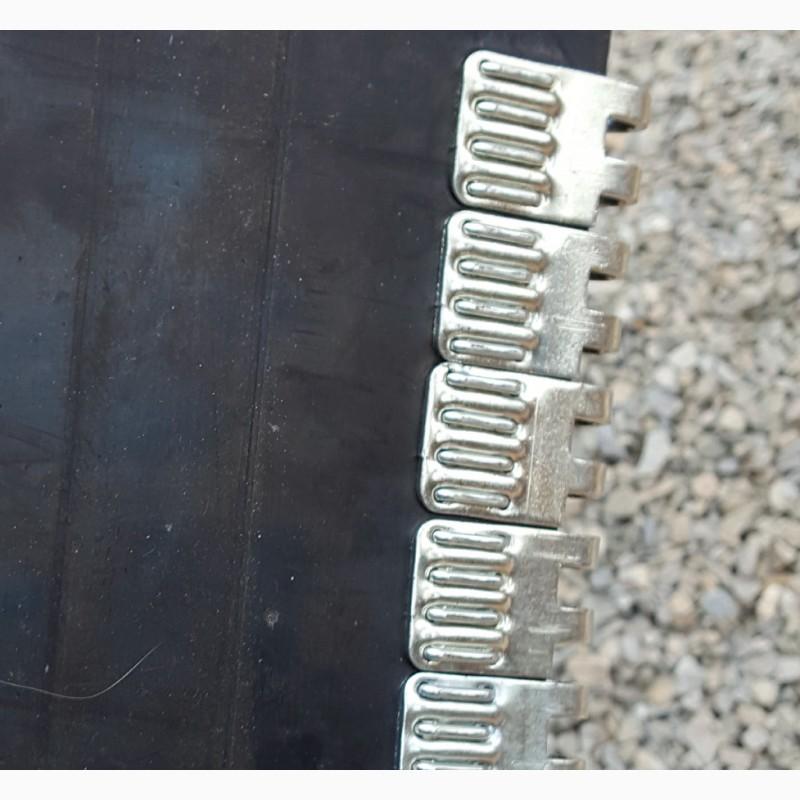

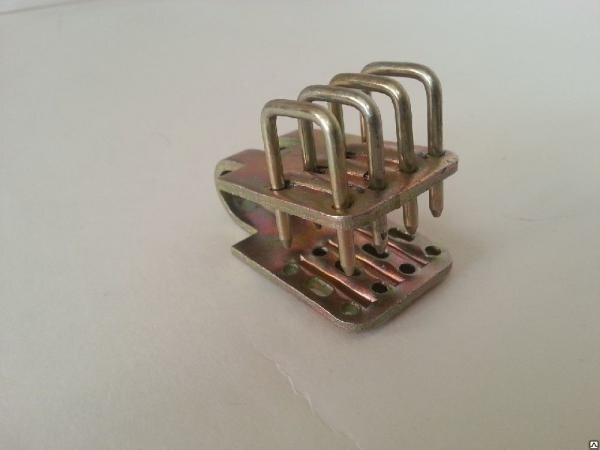

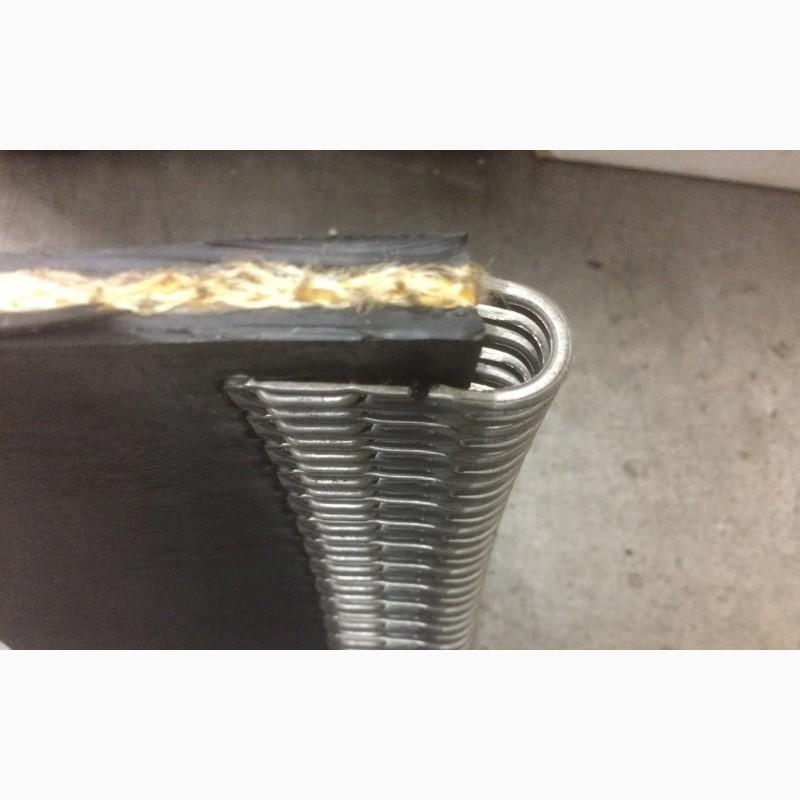

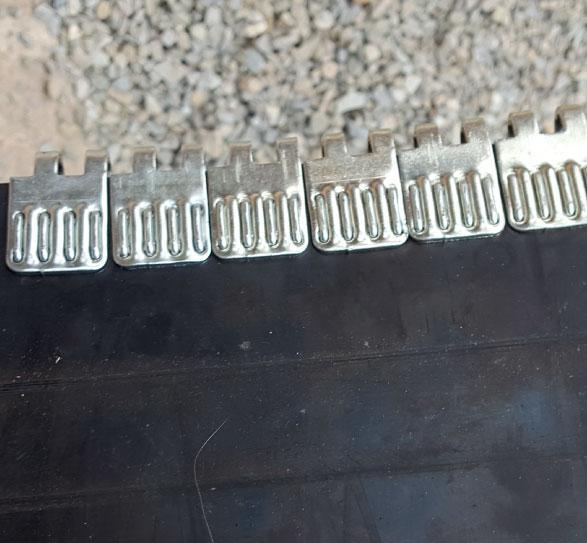

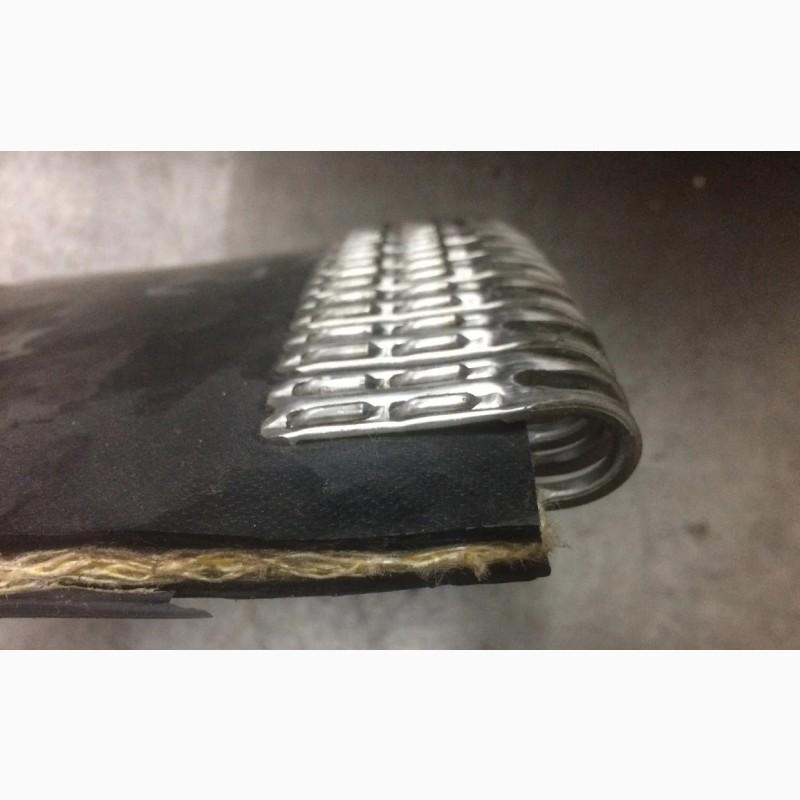

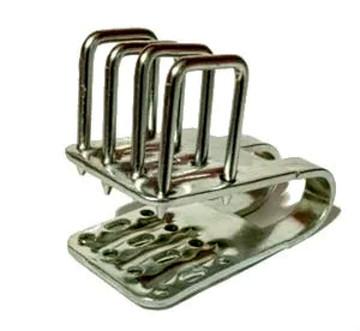

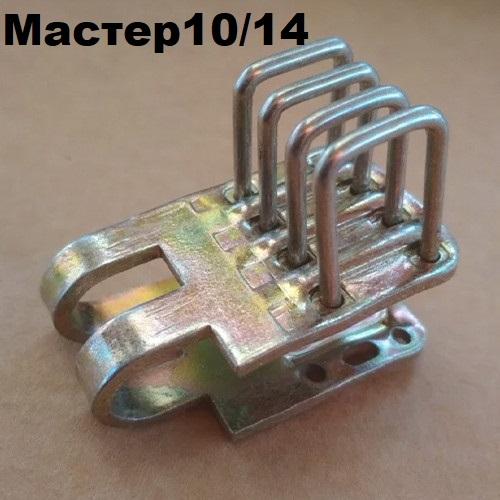

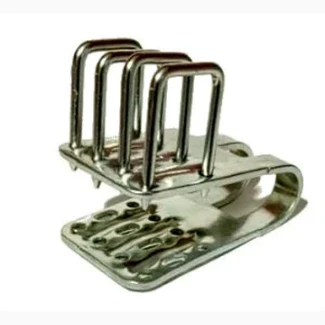

Master 10/14 nailing system - plate-staple connection. High-strength hinge made of spring steel and U-shaped brackets.
The Master 10/14 hinged joint is intended for connecting conveyor belts with a strength of up to 1750 N/mm. The tape is joined using a hammer and a special hammering device UM130.
Parameters of the tape connected by a hinged connection UM1750.15:
The minimum recommended diameter of the drive drum is 300 - 350 mm.
Conveyor belt strength up to 1750 N/mm.
The thickness of the tape is from 10 to 18 mm.
* when the thickness of the tape is more than 14 mm, it is necessary to remove the upper and/or lower rubber linings at the joint point* it is also advisable to remove the upper lining to reduce the wear of the staples during operation. Areas of application of UM 1750:
Области применения УМ 1750:
transportation of coal, granite, ore, rock, clay, sand, screening, etc.
concrete plants
brick plants
cement plants
careers
mines(//tractor-service.com)
sections
The following types of UM mechanical hinged connectors are available:
Hinged joint UM1000.11 for tapes with a strength of up to 1000 N/mm
Hinged joint UM1400.13 for tapes with strength up to 1400 N/mm
Hinged joint UM1750.15 for tapes with strength up to 1750 N/mm

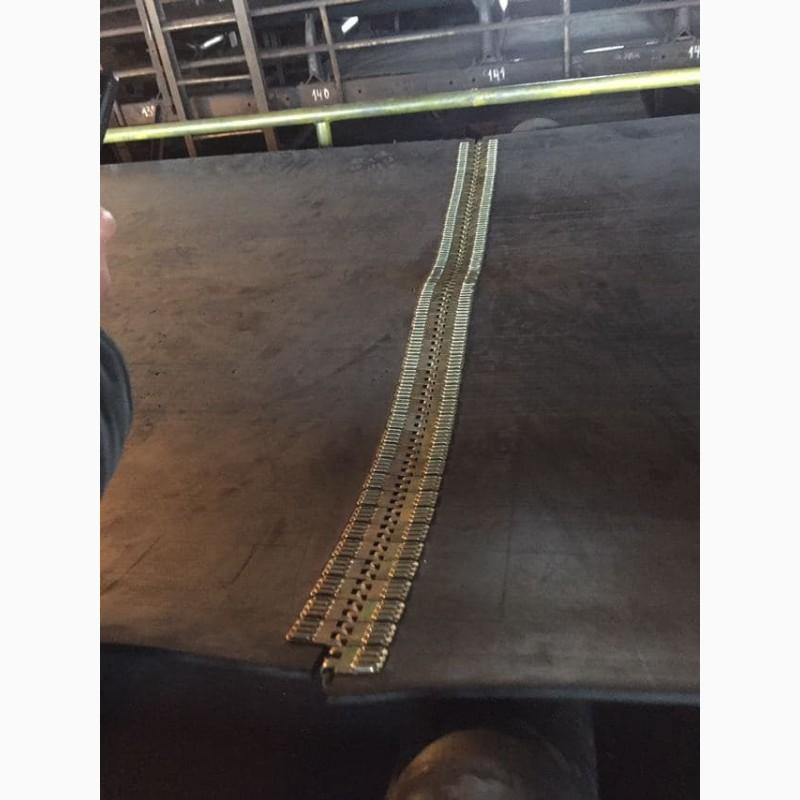

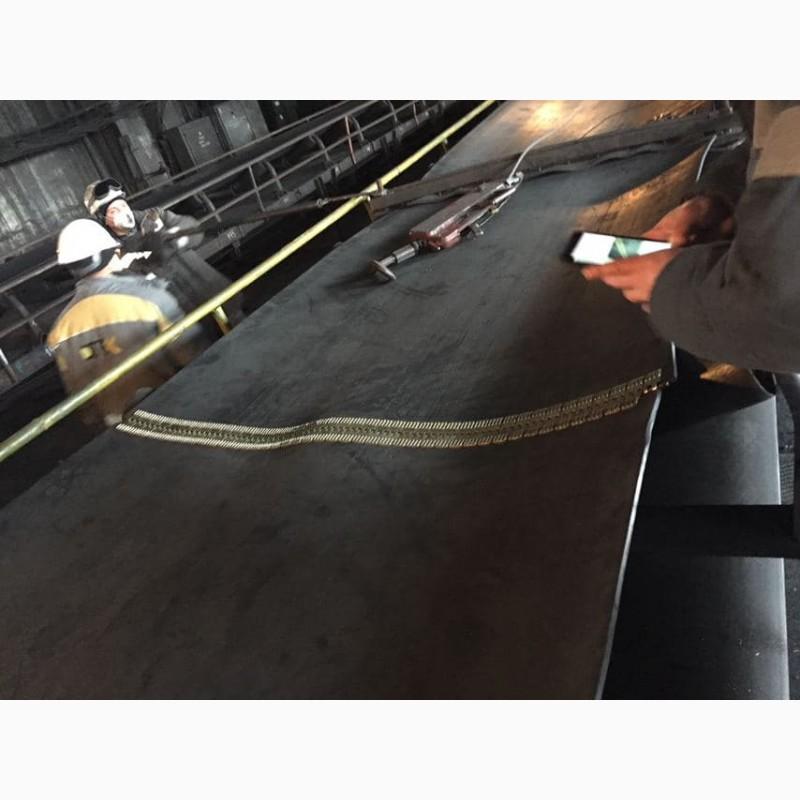

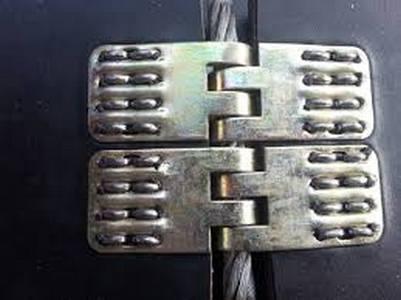

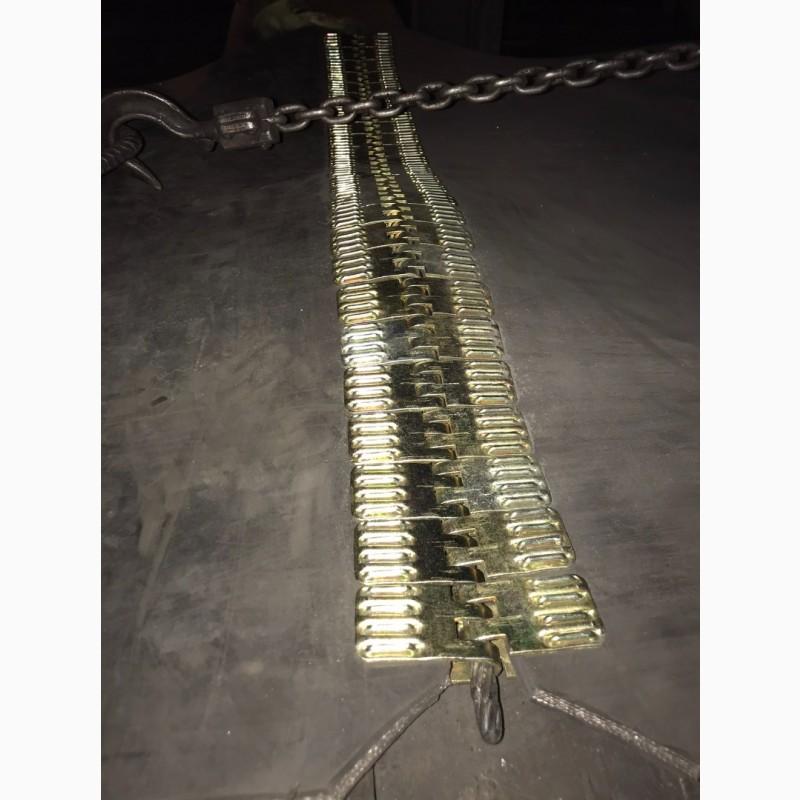

Detachable mechanical connectors UM1750.15 are pressed into the ends of the joined tapes with the help of a special device, after which both parts of the joint are connected according to the "zipper lock" principle, the UM connecting rod is inserted into the loops.
The connecting rod for UM is a piece of rope of a special design, the length of which depends on the width of the connected conveyor belt. The length of the UM connecting rod, mm - 785, 985, 1185, 1385, 1585.

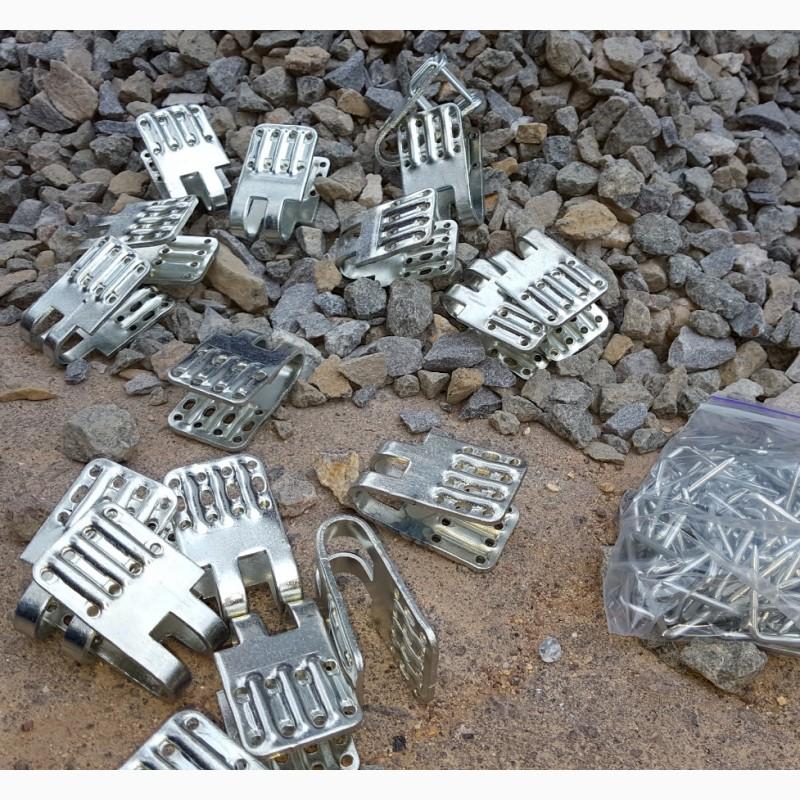

Hinged mechanical connectors UM are supplied in sets for the width of the connected conveyor belt 1000 mm, 1200 mm. In the process of docking, they can be added to any width of the tape.
Advantages of using a hinged butt joint UM
when preparing for joining the tape, the technology is simplified, the tape covers do not peel off, simple cutting of the tape at a right angle;
economy of the conveyor belt up to 1 square meter per joint; 175
гибкость полученного стыка почти такая же, как цельной ленты, что не создает напряжений при прохождении лентой барабанов;
a tape of the same thickness throughout will not make it difficult to pass through cleaning devices;
the disassembly and assembly of the tape cloth is simplified in any place; the share of manual labor (mechanization of work) is reduced due to the use of the UM 130 tool.
