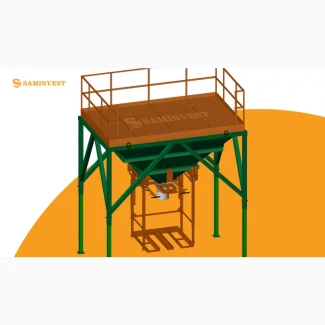

Packing line into big bags with operator platform "COMPACT-2", Kharkiv region.

We present to your attention a complex bagging station For convenience, the station is equipped with a platform for the operator, which will allow you to repackage products from big-bags into new big-bags, this is relevant for those whose products depend on the warehouse for a long time and require a commercial appearance. Thanks to the lattice flooring on the platform, you can install a big bag and cut it in a convenient way for filtering your production into the bunker through the flooring.

Для удобства станция оснащена площадкой для оператора, что позволит Вам перефасовывать продукцию из биг-бегов в новые биг-беги, это актуально для тех, чья продукция длительное время залеживается на складе и требует коммерческого вида. Благодаря решетчатому настилу на площадке Вы сможете установить биг-бег и разрезать его удобным способом для фильтрации Вашей продукции в бункер через настил.

Also, the line is equipped with a big-beg inflation unit, so you don't have to spread the big-begs manually, especially this is convenient when the big-beg has a polyethylene pad inside it.

Weighing is carried out with the help of platform scales, which are installed under the conveyor with a control panel and an electronic panel to determine the accuracy of dosing.
Dosing is carried out by the operator with the help of a sliding (manual) valve.

After the weighing process, the big bag moves on conveyors to the shipping point. It is recommended to remove the Big Bag from the transporter using a forklift or a stacker.

Features:

• Operator site:
It is equipped with railings on three sides with a height of 1 m.
Width: 2250 mm
Length: 3600 mm
The size of the floor cell: 34x38 mm
Loading: 1159 kg/m2

• Storage bunker:(//tractor-service.com)
Hopper volume: V = 5.5 m3 (can be increased to 7 m3);
Height: adjustable from 3200 mm to 3900 mm with the help of extendable legs with latches;
Height with the operator's platform: about 4325 mm - 5025 mm.
Length: 3700 mm;
Width: 2350 mm.

• Weight basket for big bags:
Equipped with a gripping system with a unit for weighing and filling big bags;
Height: adjustable from 1400 mm to 2100 mm with the help of a retractable pallet with latches;
Permissible weight of big-begs: up to 1000 kg;
Type of big bag: 2 or 4 slings.

• Centrifugal fan (inflating unit for big bags):
Rotation speed: 3000 rpm.
Device protection class: 54 IP
Voltage: 220/380 V
Power: 1.1 kW
Current frequency: 50 Hz
Type of electric motor: asynchronous
Nominal current consumption: 2.7 In (A)

• Total weight of the line: 2029 kg
