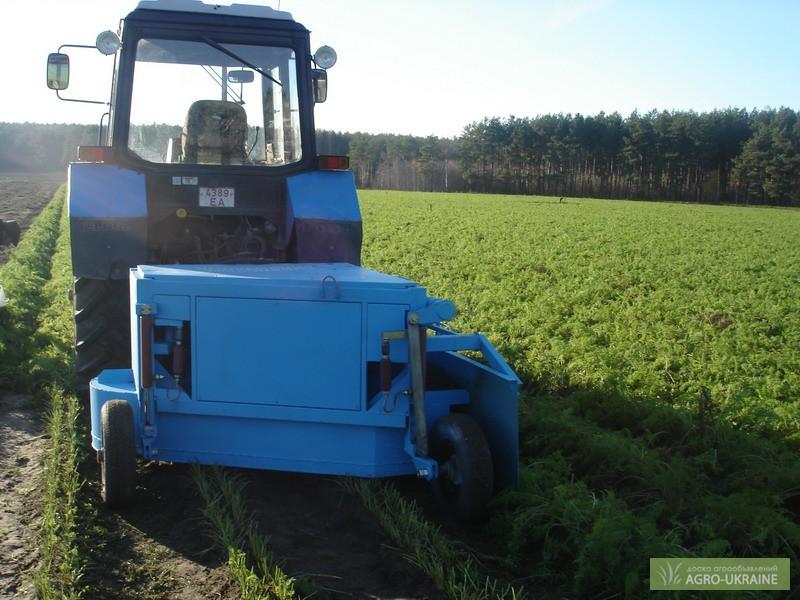

Botvoudalitel BUN-1500, Chernihivskaya region.

Productions of the Holmel radio plant for mowing the tops of onions,carrots,beets table, other crops on berebne fields and simply a weed The skid remover is actuated from the power take-off shafttractor MTZ through the cardan shaft included in the kit.
Technical characteristics:

Parameter name Unit
measurements Значение
parameter
1. The type of botvodalitel - hinged.
2. Gripping width mm 1500
3. Maximum transport speed km/h 35
4. The maximum pressure in the hydraulic system is MPa 20
5. Overall dimensions, no more,
in working position:
length x width x height
in transport position:
length x width x height m

2.7x1.9x1.1

2.7x1.9x2.0(//tractor-service.com)
6. Productivity, not less than 172
за час основного времени
during shift time
during the operating time ha/h

0.6
0.48
0.47
7. Completeness of top removal, not less than % 80
8. Working speed km/h from 4.4 to 6.5
9. Specific fuel consumption in the unit with MTZ-82 kg/ha 12.4
10. Ground clearance mm 420
11. Track width mm 1500
12. Mass, not more than 600 kg. 185
13. Срок службы лет 10
14. City and country manufacturer, Gomel
Republic of Belarus
15. Availability of a certificate There is a certificate of our own production
No. G 9048
16. Availability of TU TU BY 400069535.020-2007
