Combination conditioner kit Fortschritt E 514, 516, 517a, E 524 (Forshrit), Kharkiv region.

Air conditioning kit forharvester Fortschritt E 514, 516, 517a, E 524 (Front page)

Designed to create comfortable climatic conditions in the cabin of Forshrit combine harvesters. 155комбайнов Форшрит Fortschritt.

Кондиционер спроектирован с учетом всех конструктивных особенностей техники Форшрит Fortschritt.

Complete set of air conditioner:

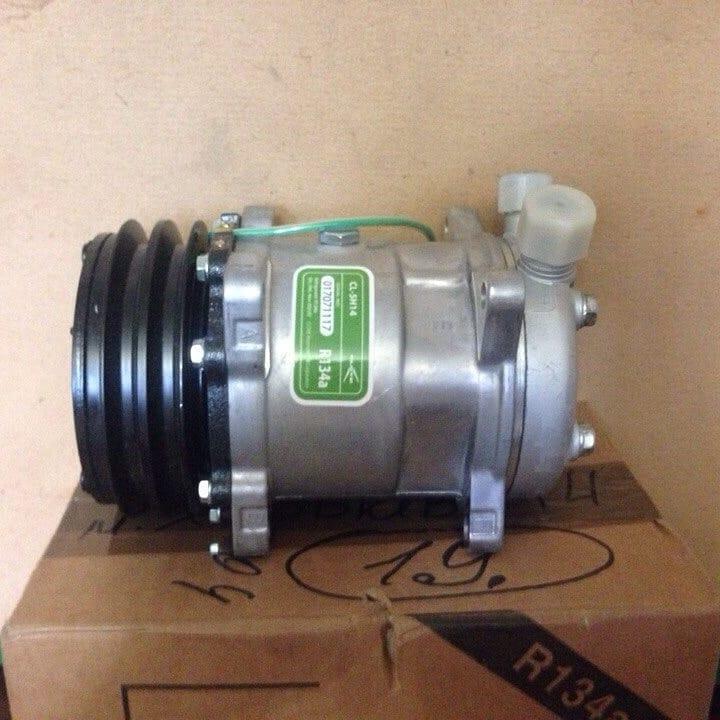

1. Compressor SD5S14; "Sanden" Singapore or Analogue of the corresponding quality;

Type - piston, with vertical fittings outlet-3/4-16UNF(O-ring) inlet-7/8-14UNF(O-ring); Productivity - 138 s/c;
Operating speed - 700-6000 rpm; Number of cylinders - 5 pcs.;
The power supply voltage of the electromagnetic clutch is 12V;
The power consumption of the electromagnetic clutch is 45W;
Drive pulley - 132mm. A2; Belt type - wedge.
(//tractor-service.com)

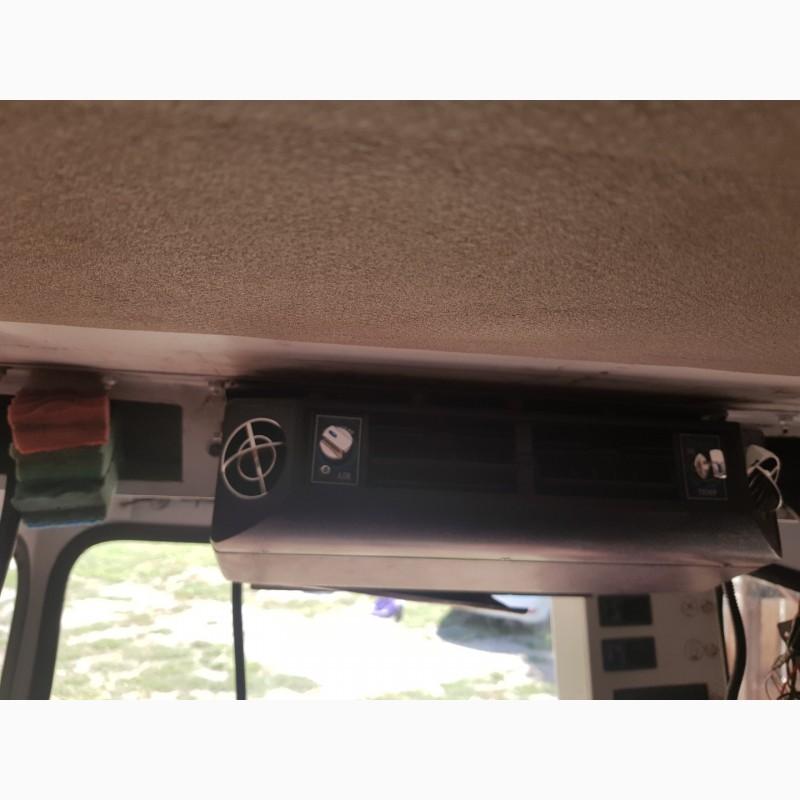

2. Evaporative unit

With decorative panel, 12V fan, thermostat, TRV, fan speed switch (3 speeds), input 5/8-18 UNF (O-ring), output 7/8-14 UNF(O-ring); Overall dimensions (WxDxH) - 393x317x140 mm; 173
Холодопроизводительность - 5 кВт; Производительность вентилятора - 500 куб. м./час; Потребляемая эл. мощность - 150 Вт; Питание - 12В.

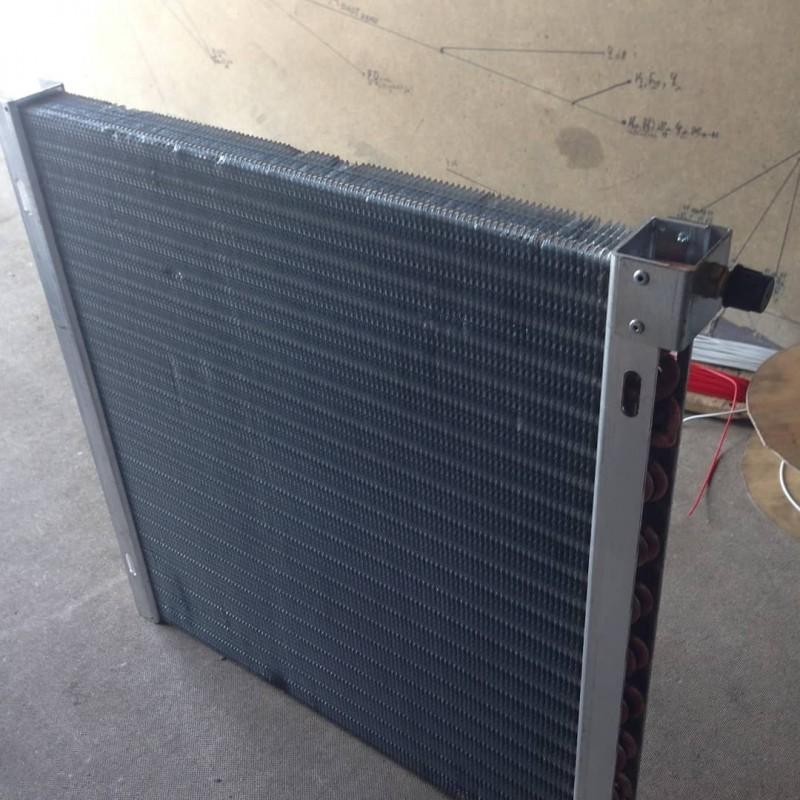

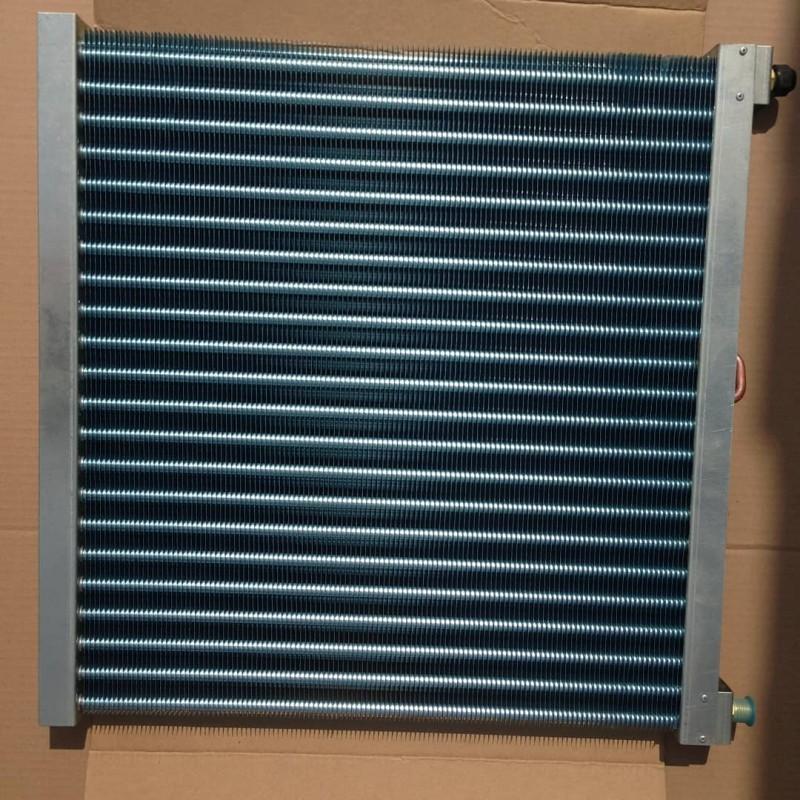

3. Capacitor:
Copper - installed in front of the main radiator of the engine.

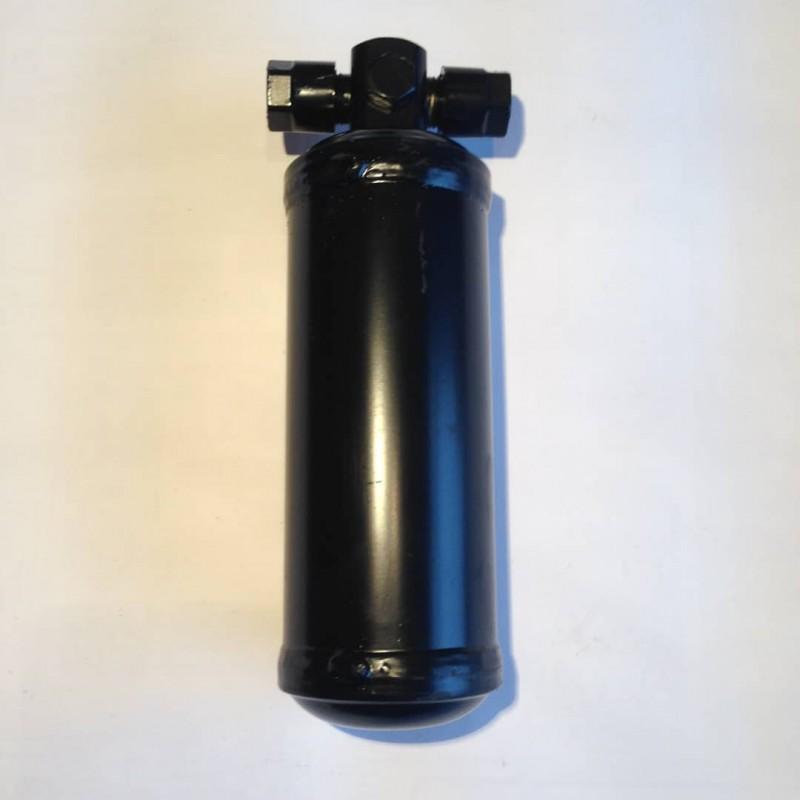

4. Filter-drier
With a pressure sensor assembly:
incl. compressor - > 2 kg/cm2; Off compressor - > 32 kg/cm2;

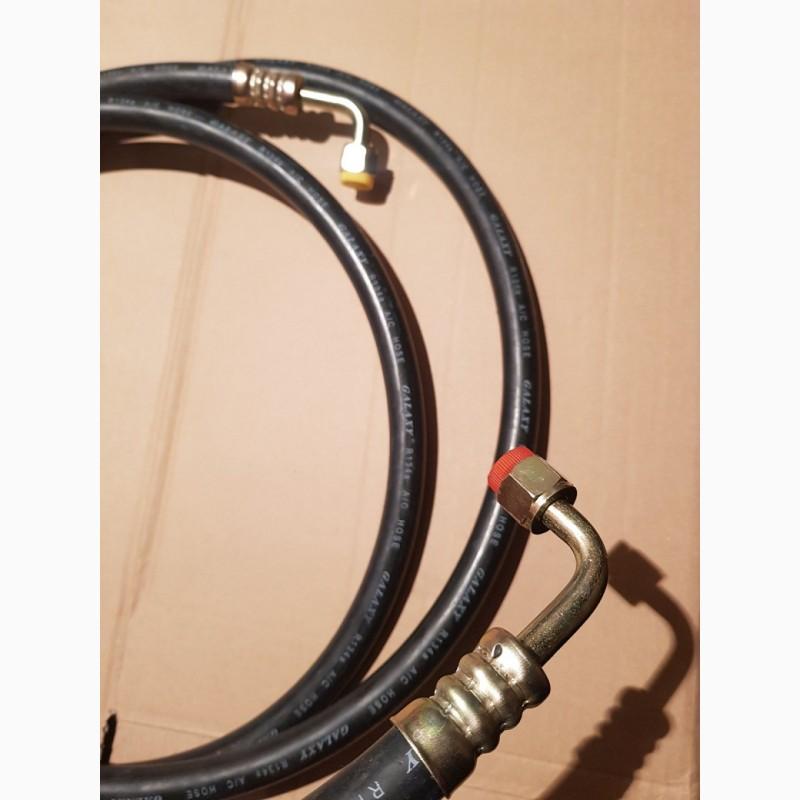

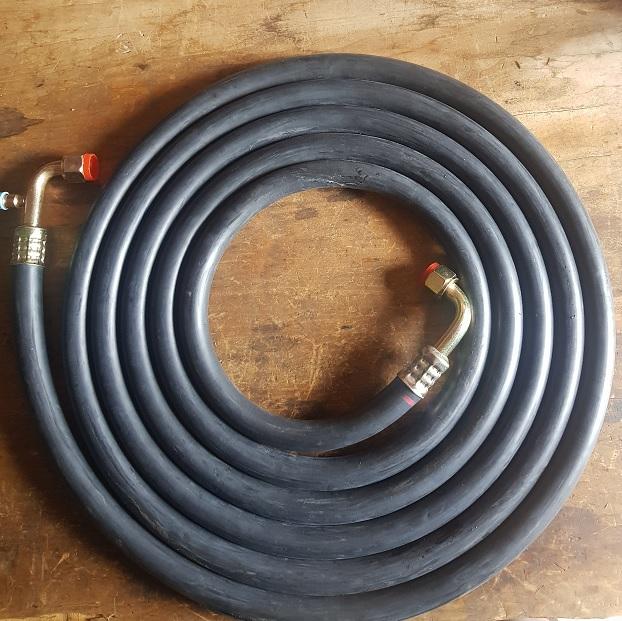

5. A set of cold air conditioner hoses (4 hoses), allhoses pressed and do not require additional work before installation on the harvester;

6. Wiring kit ;
7. Compressor mounting bracket (Universal).
