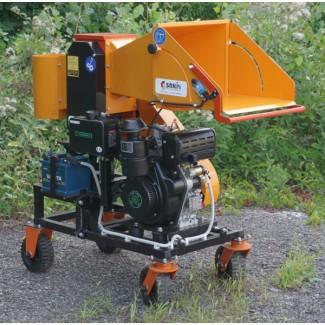

Mobile branch chopper, diesel engine, 120mm wood cutter, Cherkassy region.

Maximum diameter of the recycled branch:

Raw soft rock - 120mm
Raw hard rock - 100mm
Dry hard rock - 85mm
The resulting fraction is 10-12 cm(//tractor-service.com)

Start - electric starter
Battery – 50A

Engine emergency stop handle

The shafts are square. Knives steel 65G / 10mm / 8 pcs. The thickness of the walls of the cutting module of the shredder is 20 mm. The distance between the walls of the case is 170 mm. The distance between the shafts is 121 mm. Gears with spline fit, diameter 205 mm and thickness 40 mm. Feed socket 405x385mm. Diesel engine 14 hp, 3000 rpm. / Min.
