Disk plow on MTZ mounted PDN-2.10, Kyiv region.

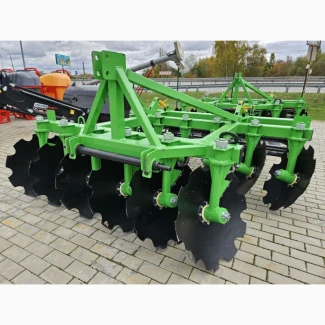

Disc plow on MTZ mounted PDN-2.10

They carry out basic resource-saving soil treatment to a depth of 4 to 18 cm. They ensure uniform distribution of organic fertilizers and crop residues throughout the depth of the soil layer treatment, creating an optimal structure for plant growth, increasing soil moisture absorption and reducing erosion. conservation of moisture and leveling the topography of the field. Aggregates are used for minimal, conservation and traditional tillage.
Diskoplug has a number of constructive advantages over analogues, namely:
The bearing assembly uses high-quality bearings from a bearing plant that is part of the SKF corporation, as well as a modern cassette seal, which provides 9,600 hectares of work on the PDN unit without disassembling the bearing assembly!!!
The reduced pitch of thediscs and their optimal location parameters ensure: high-quality tillage of the soil with a flat bed, less wear of the discs than their counterparts and a high service life of the aggregates.
Two holes are provided for coupling with a tractor by connecting the central drawbar, which ensures coupling with tractors of various models without modifying the unit.
Brackets for fastening and adjusting the position of the roller have a one-piece design, which reduces the load on the rear beam of the main frame of the unit and increases reliability.
The distance between the roller and thediscs has been increased, which improves the distribution of plant residues on the field, leveling of the area and eliminates clogging of the rink on wet soils.
Rolling rollers have an increased radius and a smaller number of working elements (8 instead of 10), which prevents the roller from clogging.
The design of the rink uses double-row bearings in the support, which makes them easier to maintain and provides 5 times more!!! resource compared to bearing 31-UCF-208.
The use of paint and anti-corrosion soil ensures the resistance of the unit parts to aggressive conditions during operation.
The units are attached to the tractor on a standard three-point hitch system. The tillage depth is set by adjusting the position of the roller and the tractor attachment system.
Soil treatment with harrows of this type has the following agronomic advantages:
1. The transformation of crop residues into nutrients for plants is accelerated due to their grinding and mixing in the upper layer of the soil.
2. Leveling the topography of the soil allows you to improve the quality of sowing and the speed of harvesting crops, as well as to minimize equipment breakdowns and preserve the health of machine operators.
3. Moisture is preserved in the soil due to the presence of harvest residues, broken capillaries and rolling of the top layer of the soil.
Characteristics
(//tractor-service.com)
Country of manufacture Ukraine
Type Disc harrow
Group Medium
Width of capture 2.1(m)
The maximum processing depth is 20.0 (cm)
The number of rows is 2
The number of disks/teeth is 12 (pcs.)
Weight 780.0 (kg)
Tractor power 80.0 (hp)
additional characteristics
The color is green.
Processing width 210 cm
Processing depth 4.0...18.0 cm
Working speed 8.0...12.0 km/h.
Productivity 1.8...2.2 ha/hour
The guaranteed resource is 2,700 hectares.
The number of work racks is 12 pcs.
