= hinged field sprayer OP-1000 l squares 14 m, Kyiv region

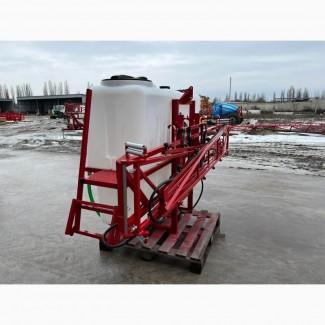

The hinged field sprayer OP-1000 l Stang 14 m

PE Agrotechnics is a manufacturer of trailer and hinged field sprayers
Одним з Хітом Продажу є навісний обприскувач на 1000 л , який виготовляється із шириною захвату штанги 14 м
= The sprayer comes in the assembled state, complete with the nozzles of the ZIP (nozzle in the collection of angular and passing)

Технічна характеристика :

Performance per hour of time, ha/h 8.4 - 16.8
Working width of grip, m 14,00
pump= firms Agroplast (Poland) - 120 l/min
= Working speed, km/h 6-10
Working fluid consumption, l/ha 50-300
Working pressure in the discharge line, MPa 0.2-0.8= (// tractor-service.com)
= The location of the sprayers above the surface treated, 0.5-1.2
Transport speed, km/h up to 15
Uneven fluid distribution by grip width (coefficient of variation), % up to 25
= Deviation of working fluid consumption through a separate spray from all sprayers, 5%
= Tank capacity 1000 l

Design features:
1. The sprayer is equipped with a barbell bar with the mechanisms of regulation and stabilization of the horizontal position of the working bodies and protection against breakage in contact with the obstacle. The barbell has a pendulum system that is carried out with the help of floods.
The sprayer frame is made of high quality metal, a channel is used for the hinge of the bar, which gives reliable operation of the sprayer and rod in the working position.
A platform with stairs is installed on the sprayer frame, which gives convenience when filling the tank through the neck.
2. Lifting and lowering the bar is carried out with the help of a powerful and reliable chief winch passing the capacity of which is up to 900 kg, in which it is not possible to lower it.
3. The shape of the tank has a flat shape and provides its complete emptying at uninterrupted work pump. The full capacity of the tank is 1225 l, which includes 1000 liters of the main tank 200 l of the system for washing the system, which can also be used as the main tank (from the sprayer is installed 3-walking faucets) and a drinker for 25 liters.

= They are on a large trade path on the Kyiv-Odesa highway in the village. Glevakha Okruzhnaya Street, 55-D near Kruise Wash
There is, delivery by our transport - 28 UAH. for km (one way calculation) or by itself export from the trading platform
