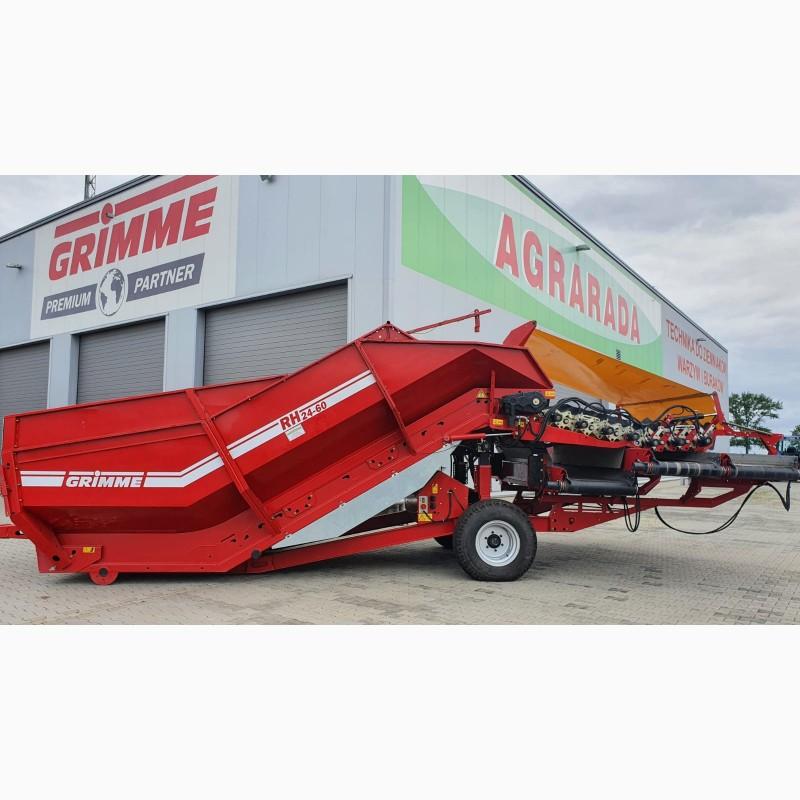

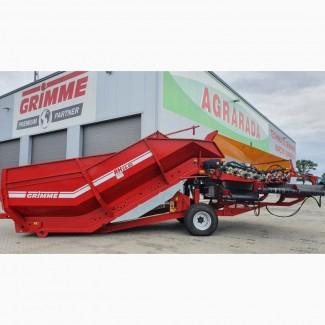

Receiving bunker GRIMME RH 24-60, Lviv region.

Receiving hopper GRIMME RH 24-60, for placing products for storage.
Year of manufacture – 2011. After major repair. How new!

Spring-loaded limiting board with height adjustment

Turbo-Clean system: cleaning of spiral polyurethane soil-separating rollers using centrifugal force

Intermittent activation of the Turbo-Clean system

Additional racks for detaching the sorting module

Fractionating section, type F-240. Increase from 6 to 14 polyurethane rollers, stepless roller speed adjustment, hydraulic tilt and gap adjustment of all 14 rollers, full control via the GBT remote control (number of revolutions, tilt, gap, on/off), 8 earth-separating/ + 6 fractionating rollers, earth removal conveyor 80 cm, hydraulic unit 15 kW
Разделительнаяrubber under the section of the hinged mechanism for directing flows (impurities and sorted fraction) also with large gaps between the rollers
Turbo-Clean system: cleaning of polyurethane spiral rollers on the fractionating section by means of centrifugal force

Conveyor of sorted fraction, 80x300 cm, movement mode left/stop/right, stepless speed adjustment via GBT

Cable extension for remote control 15 m

Flow-Control line management system
(//tractor-service.com)
Branch for Flow-Control line control system (RH-GBF + RH-TC-SL) line for simultaneous filling of containers + storage

Capacity-Control management system: sensors for layer-by-layer control of the product and measuring the speed of movement of the bottom conveyor, as well as control for regulating the throughput.

AFG-box 400V CEE 5×16 A.: on/off function. 400V power supply for connecting machines of other manufacturers (connections for CEE plug)
Pneumatic shock absorber dropped for the discharge conveyor 80 cm for braking the drop, type FB 80 L.90.120Hydr.sertified liquid fluid, suitable for food products

The main characteristics of the receiving hopper GRIMME RH 24-60

The width of the bottom of the hopper× — 240 cm.
The length of the bottom of the hopper is 600 cm×
Sorting width – 240 cm×
The number of soil-separating rollers is 7
Number of sorting rollers× — 7
The distance between soil-separating rollers is 5...55 mm×
Fraction × passing through sorting rollers - 35...45/40..50/50..60 mm (depending on the type of rollers)
The volume of the receiving hopper in the standard configuration is 17 m3×
The power consumption of the receiving hopper is 15 kW.
