Bti agri Argentina, Kyiv

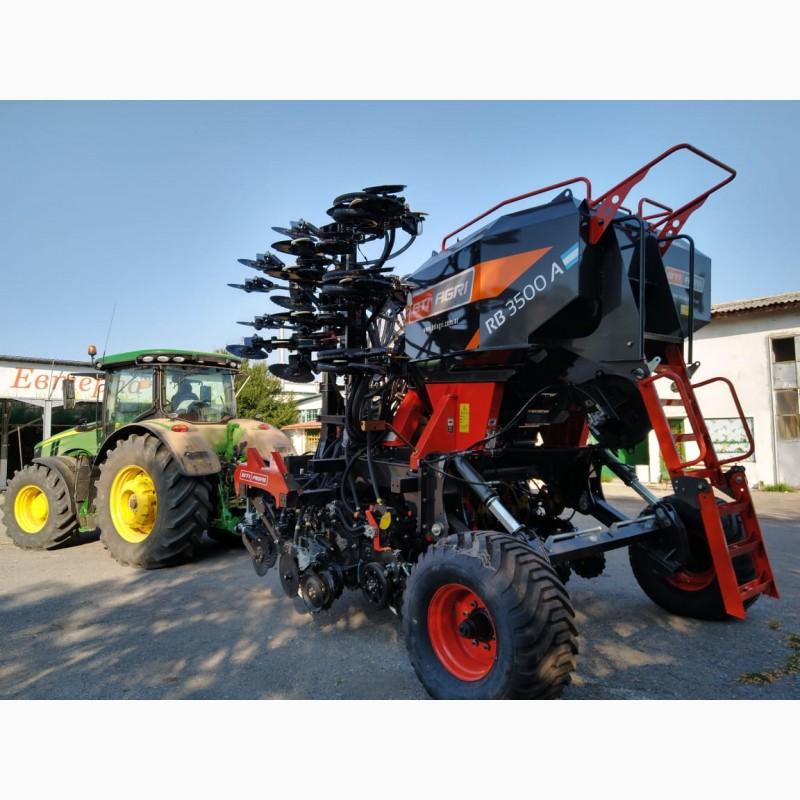

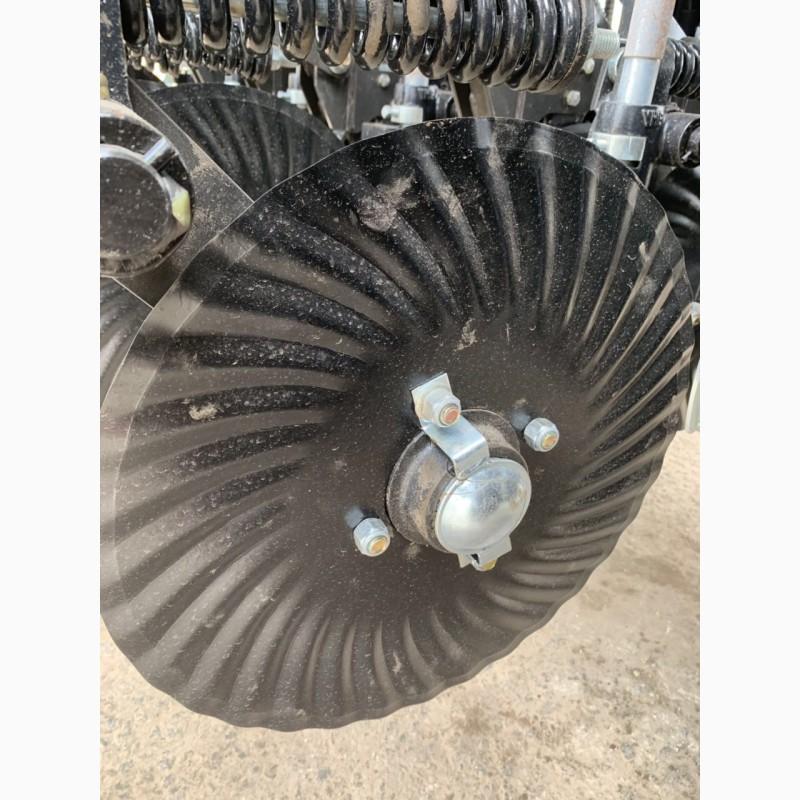

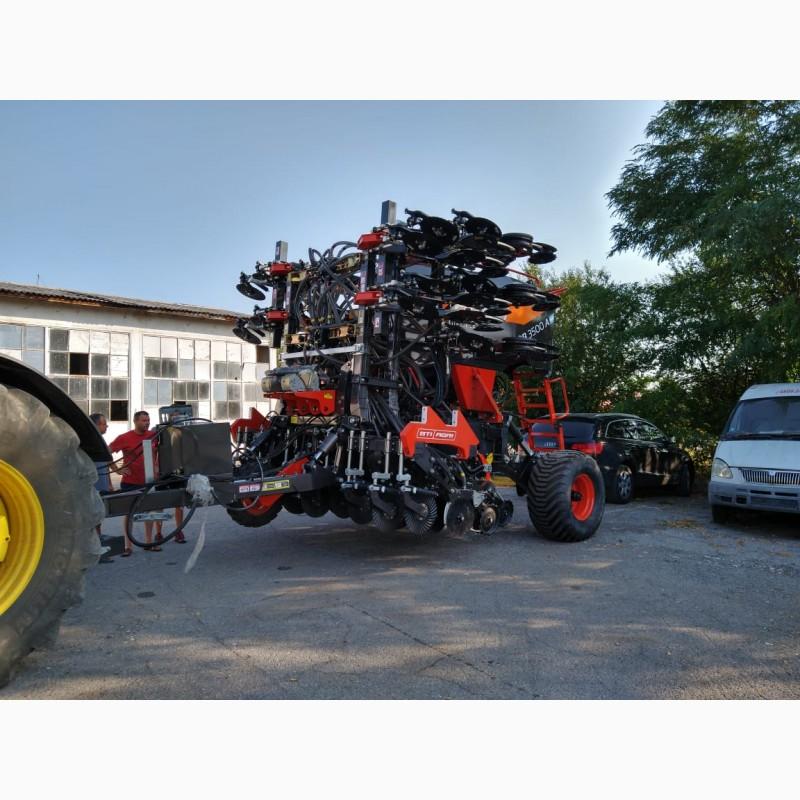

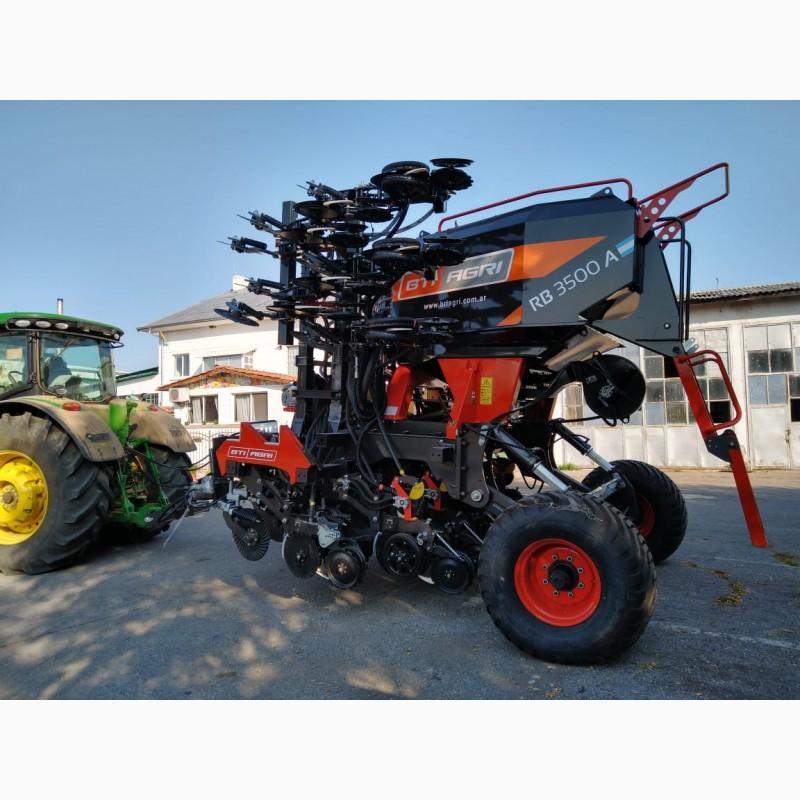

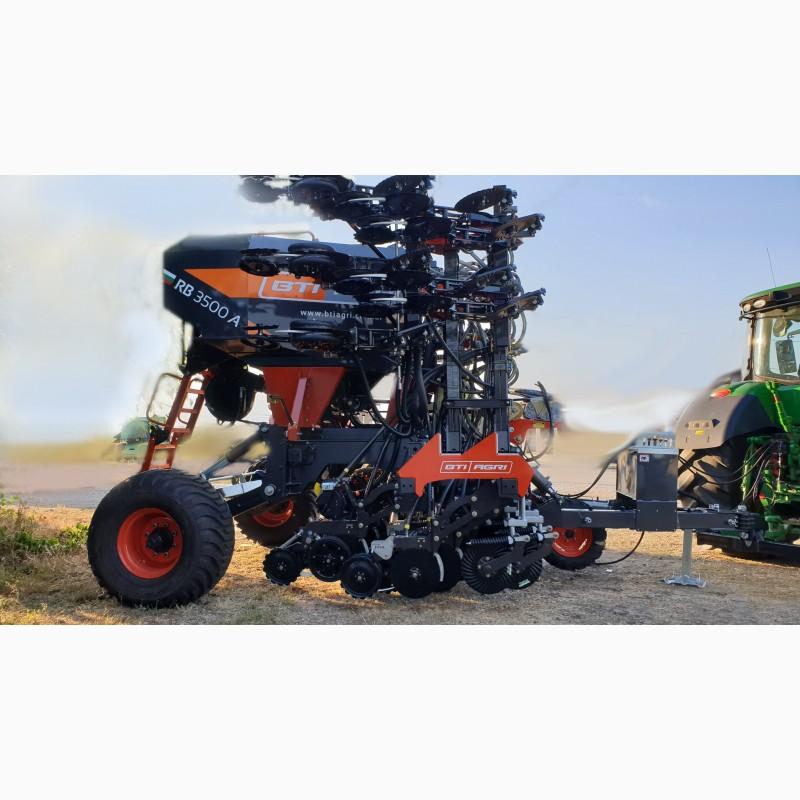

Pneumatic seed drills a complex for sowinggrain crops using the technology of semi-hinged direct sowing. The width of the grip is from 5.67 m to 8.20 m. the width between the rows is 21 cm. It is equipped with a total hopper with a volume of 4900 liters. Dosing of seed material and fertilizer occurs due to the AIR DRILL system. The design of the floor frame is hinged with three-point fastening, which allows you to optimally balance the weight on the working bodies, quickly fold the frame into the transport position (3.5 meters), which gives an advantage in terms of mobility and convenience. It is equipped with fourtransport wheels with a typical size of 600/50x22.5" 14 layers. Working organs: Turbo knife 17" with 33 waves for cutting and removal of harvest residues, installed as an independent organ. The seeding module consists of two disks of different diameters 15" and 16" (38.1 and 40.64), the working cuts of the disks at the point of convergence make them a uniform blade. Control of the seed placement depth is performed by two independent side wheels with a standard size of 21/2"x15". The seed placement depth can vary from 1 cm to 10 cm. The coulter is equipped to ensure the contact of the seed material with the soil, a seed stabilizer tongue (beaver tail) is installed, the seed bed is closed by V-shaped rolling rollersrollers with the possibility of modification pressure on the soil and the angle of attack. AGROTAX FGS sowing control monitor, 1 turbine sensor, 2 vacuum control sensors, 2 hopper level control sensors (grain and fertilizer), each coulter has a grain flow sensor.
