Sorting for root vegetables "Kartberg" 640, Kharkiv region.

To clarify prices, use our contacts.
Equipment for post-harvest processing of beets,potatoes, onions, etc. root vegetable.
The main technical feature of this sorting is the division of tubers into 3 fractions: large commodity, seed, small, as well as the transformation of theinspection table into a separate machine.
Purpose of the machine:
- calibration of tubers
- sorting of tubers

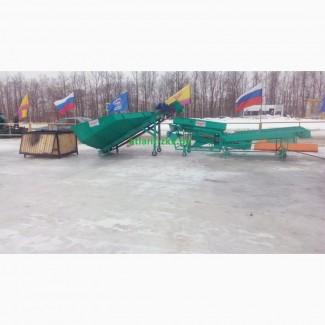

Potato sorter model 640 consists of:
- feed conveyor length L = 2500 mm, width 500 mm
- sorting case with a set of sieves
- inspection table
The specified aggregates are connected to each other by means of threaded connections.
The weight of the machine is 600 kg.
Technical characteristics:
- productivity with a mechanized method of loading – 10 tons of potatoes at one time.
- energy consumption 1.1 kW - 1.5 kW
- the number of calibration sieves is 6, additional sieves are manufactured at the customer's request with any cell size.
- additional calibration sieve for elongated potato varieties(//tractor-service.com)
- a special sieve for onions
- cell sizes of calibration sieves are 20 mm. 175
- габаритные размеры сит: ширина - 1300 мм, длина 1420 мм, толщина проволоки верхних сит 6 мм
- the length of the inspection table is 2500 mm, the width is 1300 mm.
- inspection roller table, rollers made of PVC, resistant to atmospheric effects
- on the inspection table are provided:
1) lighting (on request)
2) a device for fastening mesh containers without damaging the mesh.
3) division of production (potatoes) into flows: large commodity, seed, small.
The speed of the roller table is "slowed down" for the convenience of the service personnel.
The drive of all machine units is separate. 0.55 KW motor-reducers are installed on the feeding conveyor and the inspection table, and 1.1 KW motor is installed on the sorting units.
The 640 model machine is equipped with a loading conveyor with a receiving tray. The dimensions (емкость) of the tray can be changed at the request of the user.
At the request of consumers, the sorter of the 640 model can be transformed for the sorting and packaging of onion-sevka, with its division into fractions by size.
The design of the "Kartberg" sorter allows you to use it during the entire season, from harvesting to planting root vegetables.
