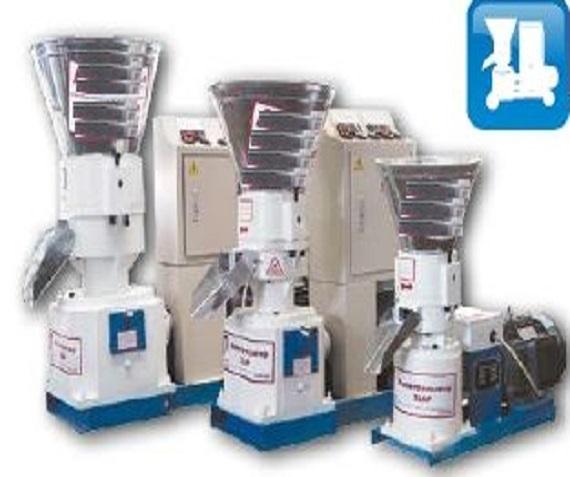

Zlsp compound feed granulator, AR Krym

Zlsp series compound feed granulator, intended for granulation of various materials of organic origin (product): various types of grain,sunflower husks, corn, alfalfa, etc. The best product for granulation is a product with a moisture content of 13-18%.

WorkGranulator:

Through the loading funnel, the product enters the matrix and under the action of ro-

Lykov (pressing shaft and matrix due to friction between them heating-

up to a temperature of 60-75 degrees). Then the raw material is squeezed out by rollers.

under a pressure of 1000-1200 kg/cm. sq. and, as a result, granules are obtained.

* Depending on the matrix used, the diameter of the granules can be: 2.5, 3, 4,

5, 6 or 8 mm. - The length of the granules is regulated with a cutting knife.
(//tractor-service.com)
Technical CharacteristicsGranulyatorov series ZLSP:

ZLSP-120V granulator - 100 kg/h, 3 kW (220V/380V), matrix diameter - 120mm, dimensions: 710×390×910 mm

ZLSP-150V - up to 200 kg/h, 4 kW (380V), matrix diameter-150 mm, dimensions: 800×450×700 mm

ZLSP-200V - 100-280 kg/h, 7.5 kW (380V), matrix diameter-200mm, dimensions: 1000×430×950 mm

ZLSP-230V - 280-380 kg/h, 11 kW (380V), matrix diameter-230 mm, dimensions: 1140×470×970 290 149 000

ZLSP-260V - 380-480 kg/h, 15 kW (380V), matrix diameter-260 mm, dimensions: 1200×500×1070 330 197 000

ZLSP-300S - 570-670 kg/h, 22 kW (380V), matrix diameter-300 mm, dimensions: 1270×520×1070 mm

ZLSP-400S - 750-930 kg/h, 30 kW (380V), matrix diameter-400 mm, dimensions: 1520×600×1150 mm

Call, we work without holidays. Delivery and Shipping in the CIS, not expensive.
