Ring harrows "BKP" (modular and sectional), Dnepropetrovsk region.

Ring harrows "BKP" - a new class of tools for complex surface soil treatment.

The operation of ring harrows is based on the use of original working bodies, made in the form of rings that have the shape of a truncated cone, assembled in a battery. Double-row batteries are located at an angle to the direction of movement of the unit, while the large bases of the rings are directed forward in the direction of movement (Patents No. 2402895, No. 89801).

They ensure the destruction of up to 98% of weeds, the creation of a mulching layer, high-quality leveling of the field surface.

High productivity, which is achieved due to high working speed (up to 18 km / h), low fuel consumption (according to the results of tests at the Volga MIS - 3 kg / ha) provide high indicators of the economic efficiency of the technological process.

Method of application:

.. Treatment of steam fields;
.. Pre-sowing processing on sedge backgrounds after plowing with plowing and plowing without plowing;
.. Surface mulching treatment of stubble backgrounds on light uncompacted soils.

"BKP" harrows are the most effective tools for mechanical weed control!

These are the only machines in the world that provide removal of weeds from the soil together with the root system WITHOUT CUTTING. At the same time, the removal of the root system of weeds is carried out from a depth that significantly exceeds the depth of soil treatment.

OPTIONS TO USE THE HERO:

On spring field work:
1) Early-spring closing of moisture with simultaneous loosening and leveling of the surface:
- on a falling gill;
- on bream, processed according to minimal technology;

- on the stubble (this method is better to carry out in autumn immediately after harvesting).
2)Pre-sowing soil treatment for sowing early spring grain, technical and small-seed crops.
3) Pre-sowing soil treatment for sowing late spring crops with simultaneous destruction and combing of sprouted weeds.(//tractor-service.com)
4) High-quality laying of mineral fertilizers and herbicides.
In summer:
1) Steam treatment - destruction and combing of weeds with simultaneous leveling of the field surface;
2) Bringing fallow lands into circulation (see SuperTOZ Technology).
In the autumn period:
1) Soil preparation for sowing winter crops;
2) Treatment of the field surface with simultaneous leveling, uniform distribution of straw, provoking the seeds of weeds and carrion.

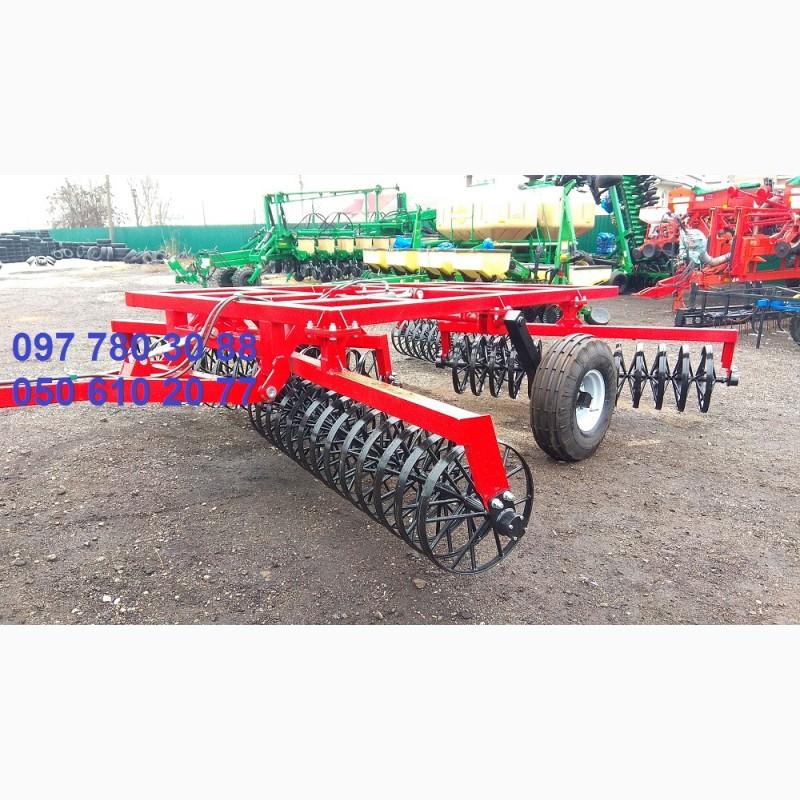

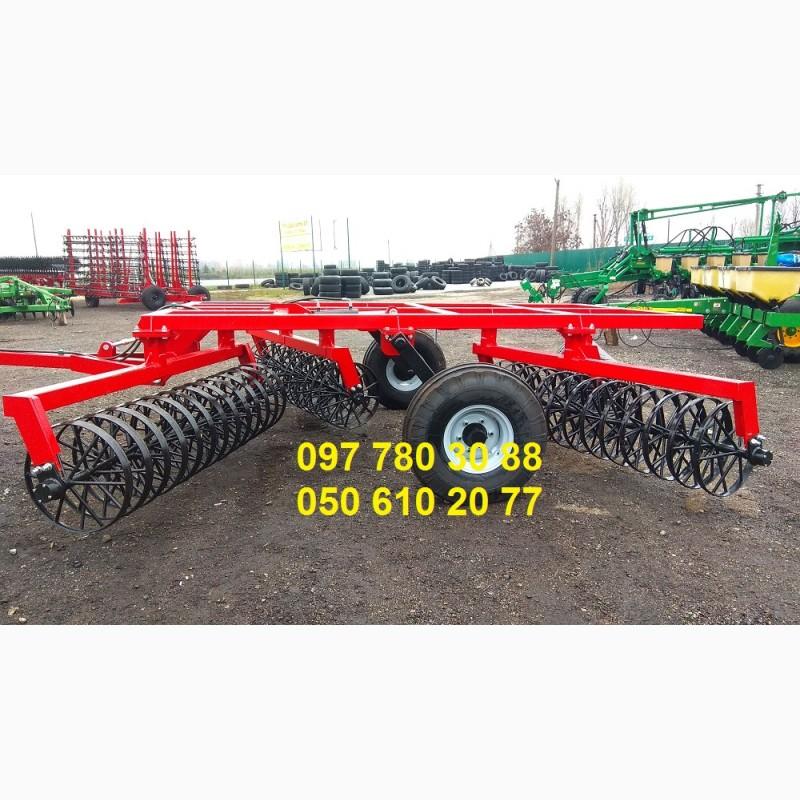

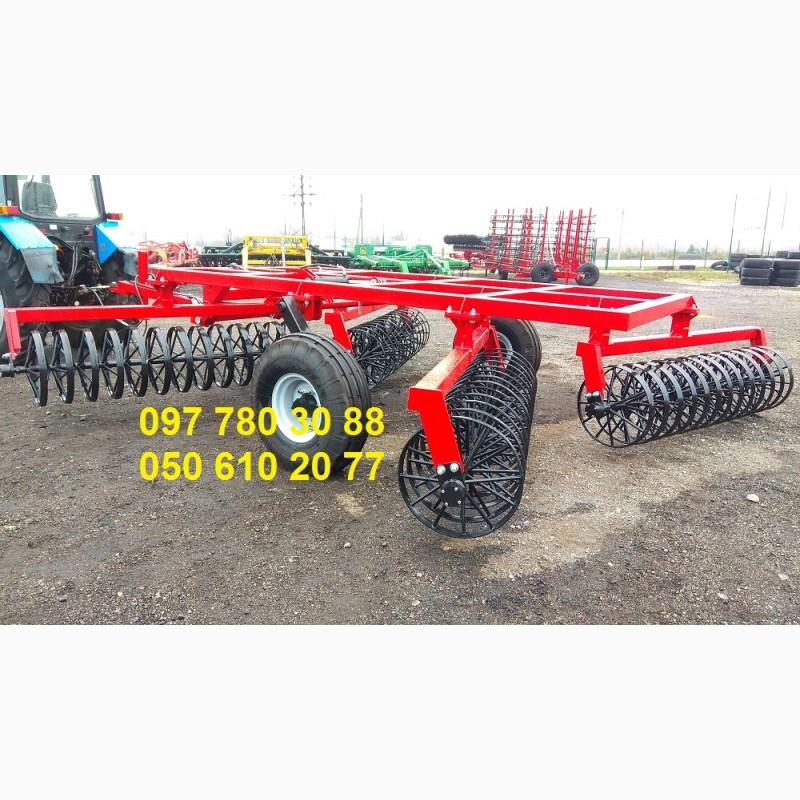

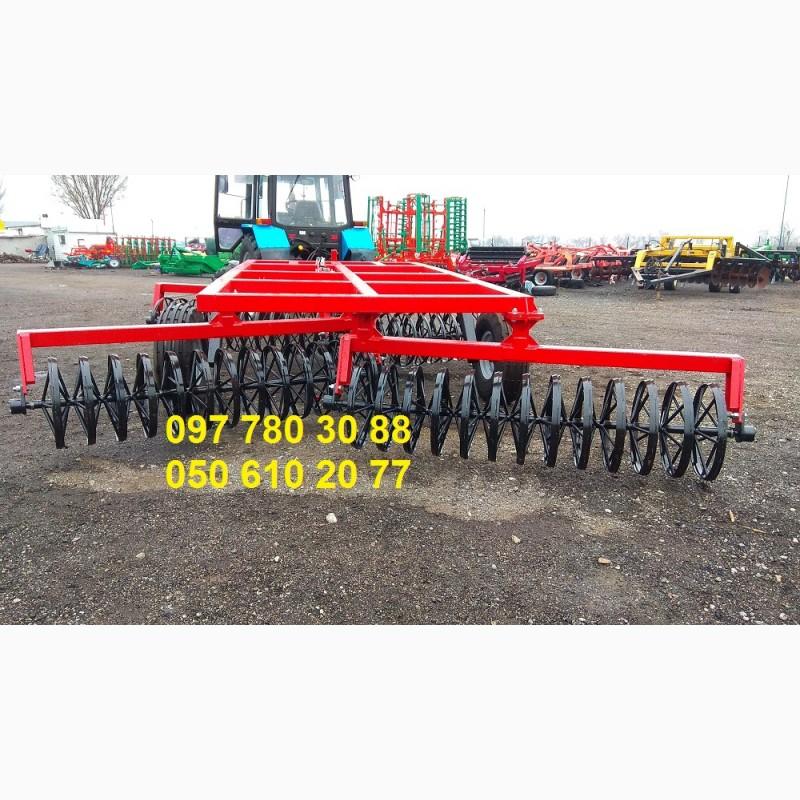

Ring modular harrows "BKP"

Trailed harrows "BKP" are equipped with batteries of conical rings with a diameter of 700 mm, located at an angle of 25o to the direction of movement of the unit.
Ensure high-quality performance of agrotechnical operations when working in fields with soil moisture of 14-25%, with slopes of no more than 8°.

The modular design of ring harrows "BKP" allows them to be aggregated with various types of domestic and importedtractors and provides the ability to quickly change the grip width or replace the maintractor with a less powerful one depending on the situation.

TECHNICAL CHARACTERISTICS
BKP - 3.6 2-module
BKP-7,2 3-module
BKP-10,8 4-module
BKP-14,4
Productivity for 1 h of the main time, ha / h (at V = 18 km / h) up to 6.8 up to 13.6 up to 20.4 up to 27.2
Working speed, km / h up to 18
Working width of capture, m 3.8 7.6 11.4 15.2
Processing depth, cm 3...8
The degree of weed destruction,%, not less than 95
Aggregated with tractors, hp 1.4 - 2 3 - 4 3 - 4 5 - 6
Overall working dimensions (LxWxH), m 7.0 x 4.7 x 1.5 10.0 x 8.5 x 1.5 10.0 x 12.3 x 1.5 11.0 x 16.1 x 1.5
Weight, kg, no more than 2300 5310 7995 10430
