Shakman dump truck 40 tons, Kyiv

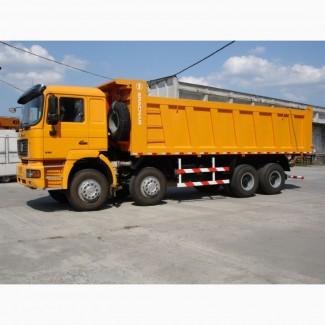

Dump truck Shacman SX33186T366

Wheel formula - 8x4;

Carrying capacity, kg - 40000;

Body volume, m3 - 26.5;

Engine - WP12.375E50 (with SCR selective catalytic cleaning system),

6-cylinder, in-line diesel with turbocharging;

Environmental class - EURO-5;

Power, kW / hp - 275/375;

Working volume, cm3 - 11596;

Maximum torque, Nm / (rpm) - 1800 / 1000-1400;

Fuel consumption - 38 l / 100 km;

Gearbox - Shaanxi Fast Gear 12JS180TA, mechanical, 12-speed, 175

вперед - 12 назад - 2, синхронизированная;

Front axle - spring, with hydraulic shock absorbers, so

anti-roll bar.

pendant:

Rear carriage: balancing, with reactive rods, with stabilizer.

lateral stability, two-stage retarder, with lock.

inter-axle and inter-wheel differential.

Power supply system - Bosch brand Common Rail,

direct fuel injection with a common ramp;

Bosch fuel injection pumps and injectors;

Air filter - Fleetguard, centrifugal, dry type;

Clutch - EATON Φ430, dry, single-disc with diaphragm spring;

The drive is hydraulic with pneumatic expansion Shaanxi Han De Axle;

The main gear is a two-stage gearbox with a wheel planetary gear;

Gear ratio - 5.73;

Steering - hydraulic booster ZF 8098, integral type;(//tractor-service.com)

Working brake system: WABCO, pneumatic,

two-circuit drive separately for front and rear wheel brakes, drum-type brake mechanisms on allwheels, ABS;

Braking system - mechanical drive from spring energy accumulators k

rear trolley wheels;

Spare brake system - engine brake-retarder with damper in the exhaust gas release system;

ABS / model - six-channel 6M6S / WABCO;

Tires - 12.00R20;

Dump platform;

HYVA hydraulic lifter;

Body lift - front and middle position;

The lifting angle of the platform is 50 °;

All-metal, dump truck, with one-way or three-way unloading with exhaust gas heating, anti-recoil stop;

Body dimensions: length / width / height, mm - 7600/2300/1500;

The thickness of the metal of the bottom / sides, mm - 8/4;

Overall dimensions:

Length / Width / Height, mm - 10335/2490/3450;

Base, mm 1800 + 3775 +1400;

Track front / rear wheels, mm - 2036/1850;

Entrance / exit angle, °: 29/45;

Clearance, mm - 320;

Maximum speed, km / h - 90;

Other characteristics:

Minimum turning diameter, m - 11;

The volume of the fuel tank, l - 380 (iron, electric heating)

Cabin - F2000, insulated, all-metal, two, with one berth,

pneumatic driver's seat, tilt and height adjustable steering column, wide-angle rear-view mirrors, MP3 fog lights \ USB radio, air conditioner;

Cabin suspension - four shock absorbers, rear shock absorbers with hydraulic lock,

triplex windshield, three-speed windshield wipers.
