Trailed sprayer "Bohuslav" - OPK - 3000, Kharkov region.

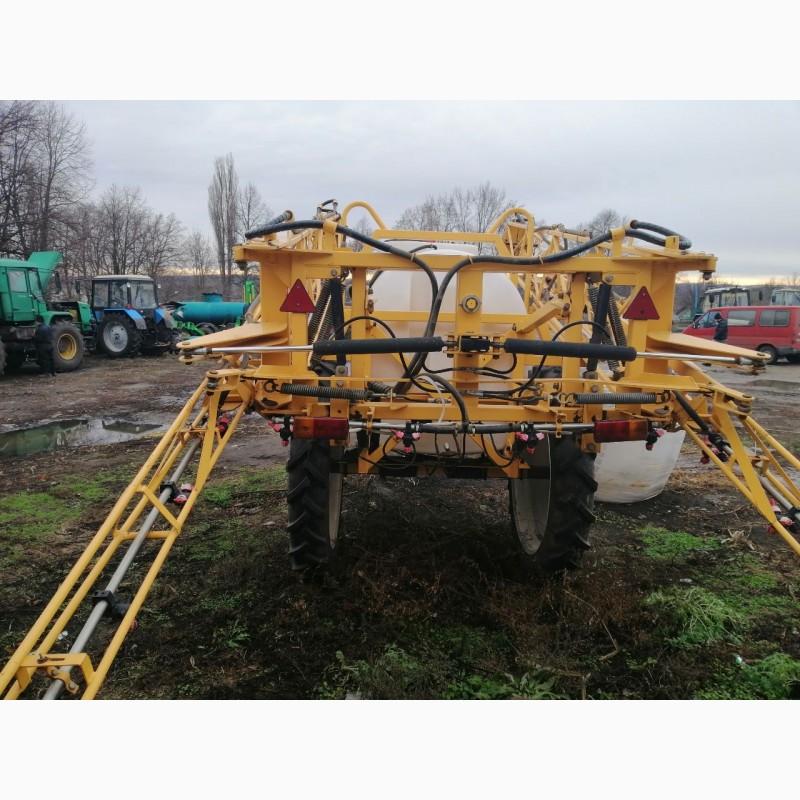

Hydraulic rod of volumetric construction with pendulum stabilization mechanism and hydromechanical vibration damping system. The production of the rod and frame includes sandblasting followed by powder coating for reliable protection against corrosion.

A parallelogram suspension with two hydraulic cylinders allows you to smoothly change the height of the bar installation from 0.5 to 1.8 meters even while driving.
The rod protection mechanism in the event of a collision with an obstacle allows the rod to deviate up to 15˚ in the vertical plane and up to 45˚ in the horizontal plane. After passing the obstacle, the bar returns to its initial position.

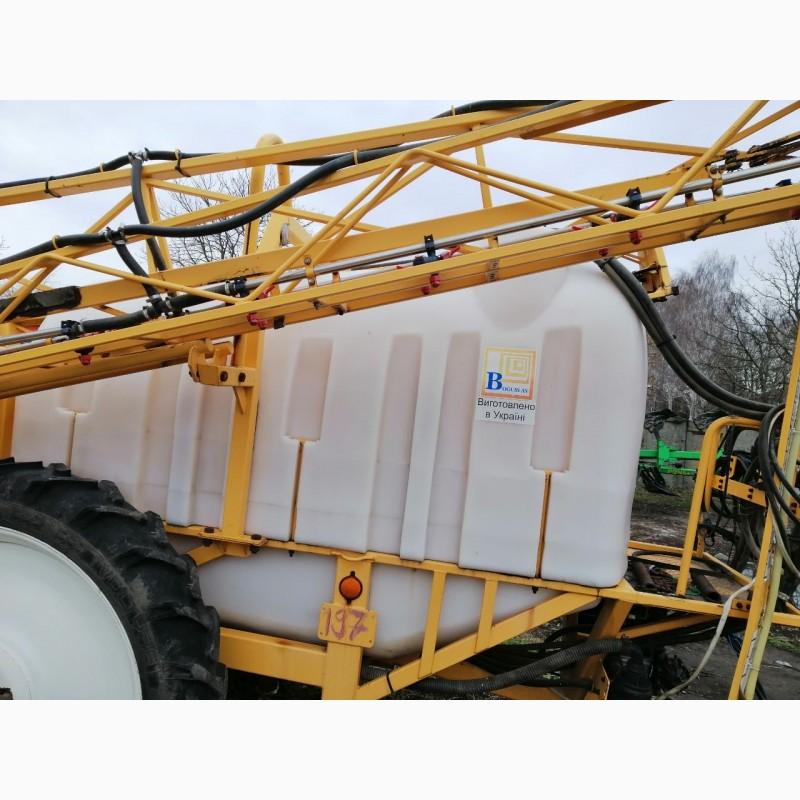

Polyethylene tank with a volume of 3000 liters.(//tractor-service.com)
Two injector mixers with ceramic tips installed at the bottom of the tank maintain a constant concentration of the working fluid.
Stepless track width adjustment from 1400 mm to 1800 mm.
R42 large-diameter wheels allow working at high speed and provide a clearance of 650 mm.
Using a pump from the Italian company "Annovi Reverberi", communication elements from the Italian company "Arag" and sprayers from the German company "Lechler" - leaders in the production of components for sprayers, ensures reliable and trouble-free operation of hydraulic communications of the sprayer.

Состояние - BU - хорошее
