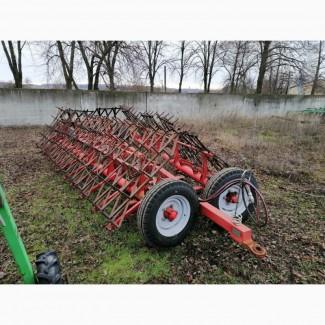

Hydraulic harrow BG14, Kharkiv region.

Hydraulic harrow BG-14 is intended for loosening the top layer of the soil, leveling the field surface, destroying the soil crust, crushing clods, destroying and combing young weeds oncereals and industrial crops, wrapping seeds and fertilizers. The harrow ensures the quality of work at humidity from 13% to 27%. The presence of harvest residues (scattered shreddedcereal straw and high-stemmed crops) is allowed on the field.
The harrow is hydraulic, aggregated with tractors with a power of at least 80k Harrows can be used throughout the field season - from early spring to late autumn.

The harrow consists of the following main components:
- four support wheels;
- central bars;
- two swivel rods;
- hinged sections of harrows, fixed with the help of chains to the rod brackets;
- two cable tensioners, serving as limiters of rotary rods in the working position of the unit;
- a hydraulic system, which consists of a hydraulic cylinder and high-pressure hoses, designed for lowering and raising the harrow into the working and transport positions, respectively.
Characteristics
Model BG-14(//tractor-service.com)
Trailer type
Productivity - 9 ha/h
Working speed - no more than 9 km/h.
Transport speed - no more than 20 km/h.
Processing depth - 8cm.
Number of sections of dental burs - 14 pcs.
Overall dimensions in the working position (L/W/H) - 7.8/14/0.8 m
Overall dimensions in transport position (L/W/H) - 6.8/3.5/1.4 m
Weight - 1650 kg
Powertractor - not less than 80 hp.

Condition - BU - good condition. Year of publication - 2014
