Kartofelesazhalka 2X-ryadnaya k mototractor (KS14), Kyiv region.

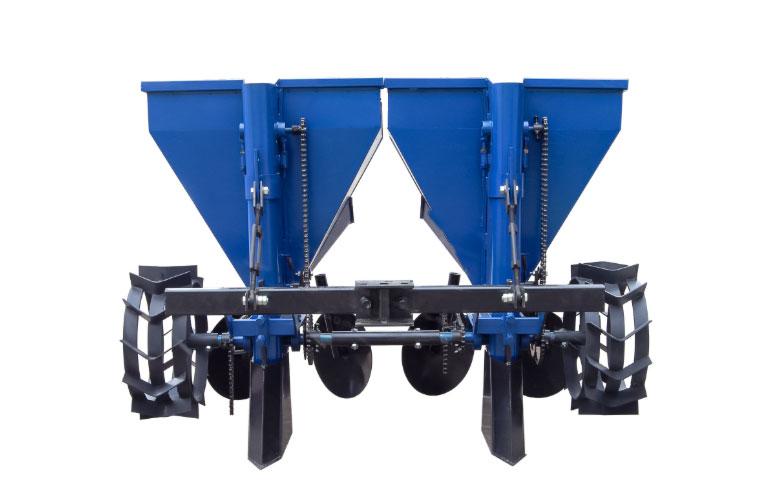

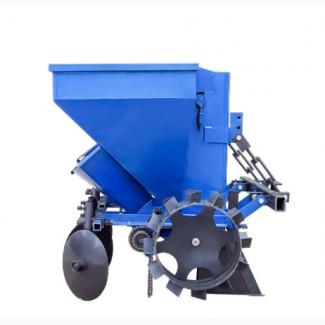

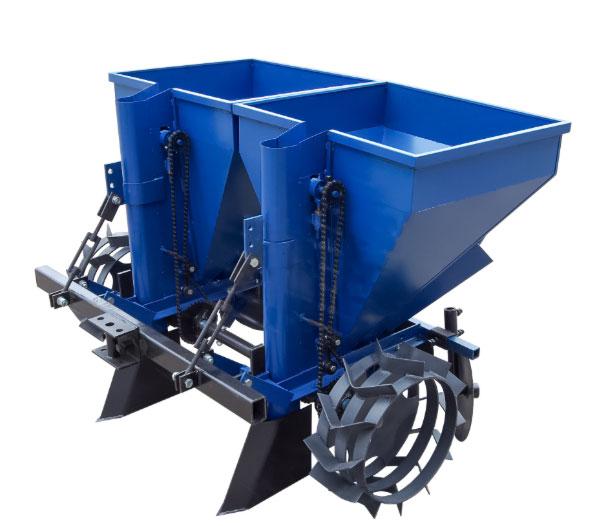

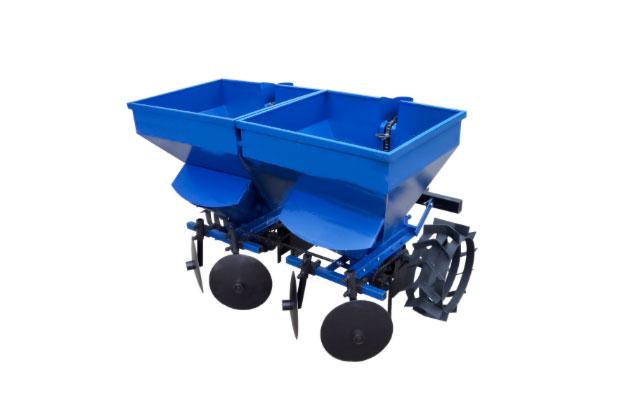

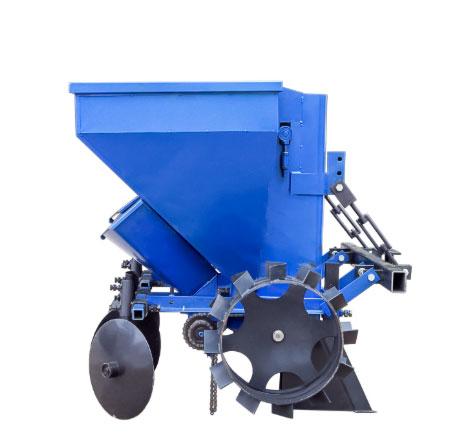

Potato planter 2X-row for a motor tractor (КС14) with a hopper for fertilizer (КС14)
KS14 potato planter can be aggregated to motor tractors equipped with a single-point hitch.

Design features:

The trailer box unit has three connection holes (a central hole with a bushing of Ø21 mm, and two side holes of Ø17.5 mm). The width of the towbar frame is 1000 mm. Fixing the position of the planter is carried out with the help of spacer bolts.

The dosing device is based on a chain transmission, in which the potato baskets are attached to the chain. The chain has 104 links, 13 baskets with a diameter of 50 mm are installed. The distance between the baskets is 8 links.

The bunker is made of sheet steel with a thickness of 1 mm. The frame at the base of the KS14 potato planter is made of a 40x40x4 mm corner. The lanyard fastening collar to the hopper has a thickness of 5 mm, and the corresponding fastening plate has a thickness of 8 mm. The lower base of the towing device is made of a 6x40 mm steel strip.

Wheels-gruntozatsepy have a diameter of 318 mm, rim thickness is
4 mm, width 150 mm. The drive shaft has a diameter of 30 mm. The shafts of the potato planter are connected to each other by a special sleeve. Each bunker has an individual drive with stars.

The opener is made of 2 mm thick sheet steel.

Disc harrows with a diameter of 275 mm, made of sheet steel with a thickness of 2 mm, are used for hilling planted potatoes. A pair of 202 bearings is installed.

A potato planter for a KS14 motor tractor is equipped with a hopper for applying mineral fertilizers, the volume of which is 6 liters.

The rate of application of mineral fertilizers is fixed (2.8 ml), the step of application is adjustable (corresponding to the step of planting potatoes 200, 250 mm).(//tractor-service.com)

It is possible to adjust the planting step in a row, options are available for installation of 200 mm and 250 mm. The width between rows is fixed - 600 mm.

Principle of operation:

The rotating moment from the wheels of the potato planter is transmitted to the shaft, on which the stars are installed, with the help of which the planting step in the row is adjusted. The drive stars are connected to the star of the upper shaft by a chain transmission, there is also a chain stabilizer. A pair of stars is also installed inside the mine - the upper and lower ones, which are connected to each other by a chain, on which cells for potatoes are installed.

With the help of a wedge-shaped coulter, the potato planter cuts the bed. Stacked potatoes fall asleep with the help ofdisk hillers.

The optimal working speed of the minitractor is 5 km/hour.

Standard equipment:

trailer, potato planter (2 bunkers); 170
бункер для внесения минеральных удобрений – 2 шт.;
drive wheels - 2 pcs.;
disc wrappers - 4 pcs.;
keel-shaped opener - 2 pcs.
Technical parameters:

overall dimensions of one bunker: 875x800x960 mm; 177
вес: 112 кг.
