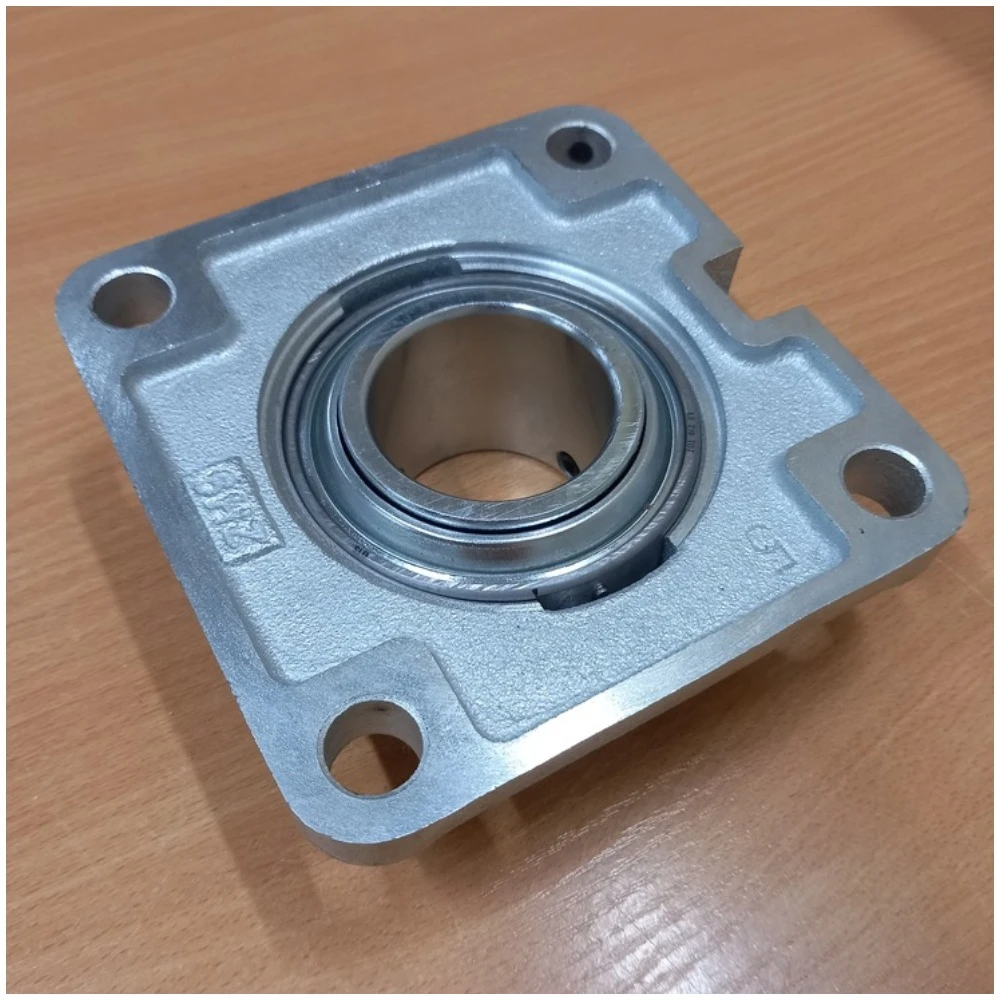

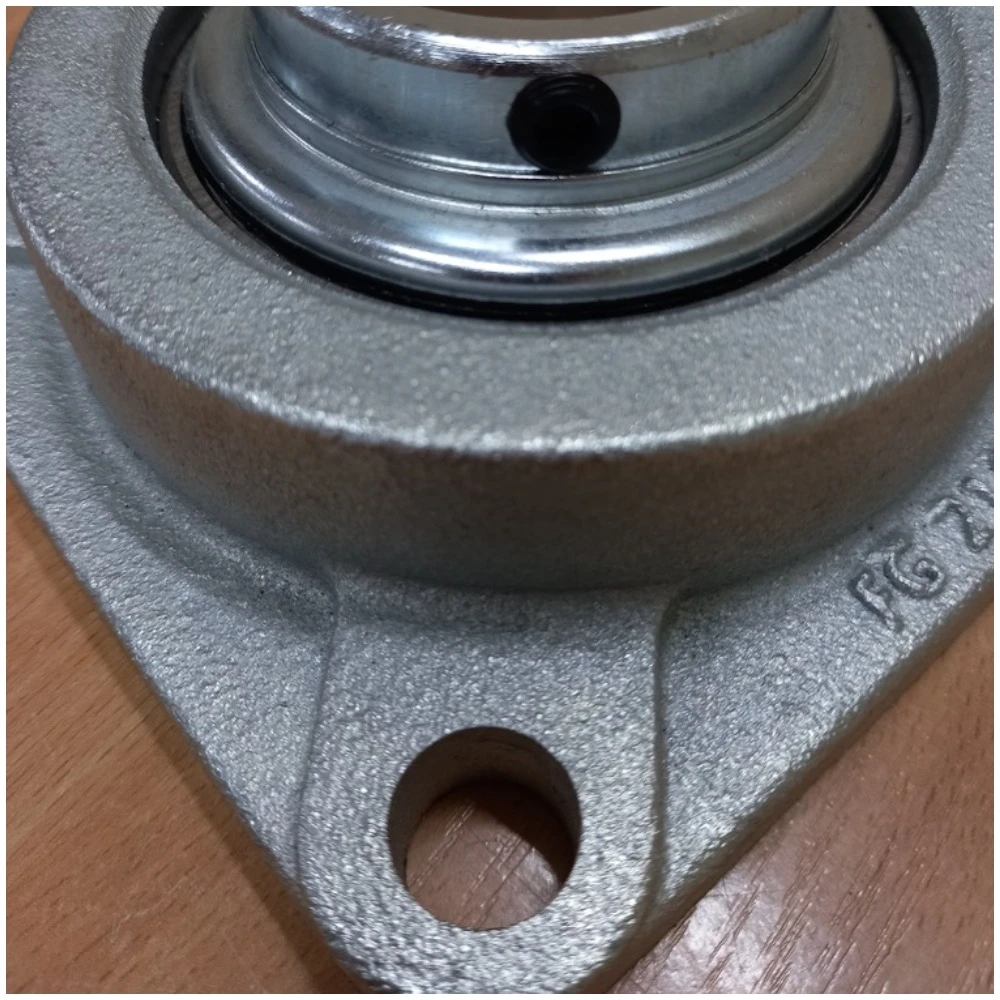

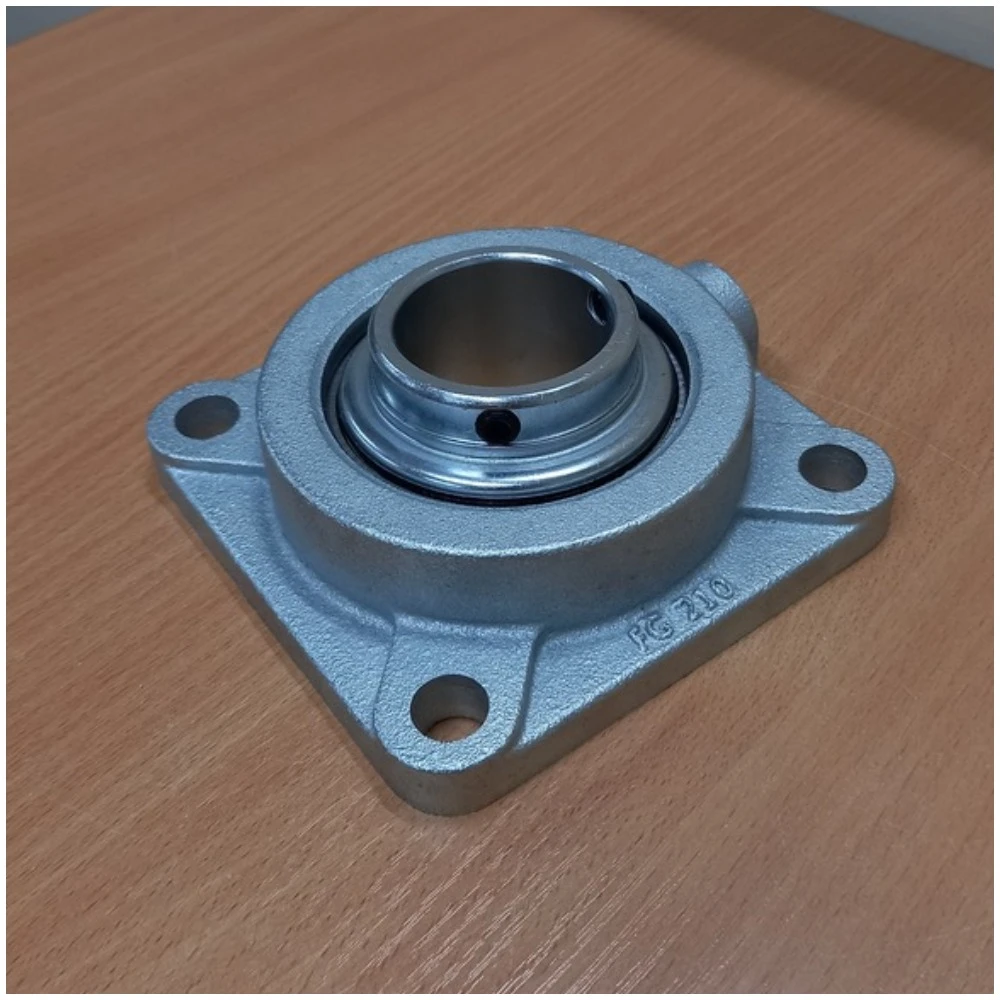

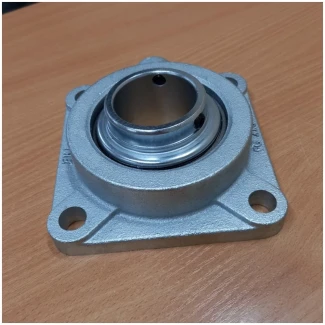

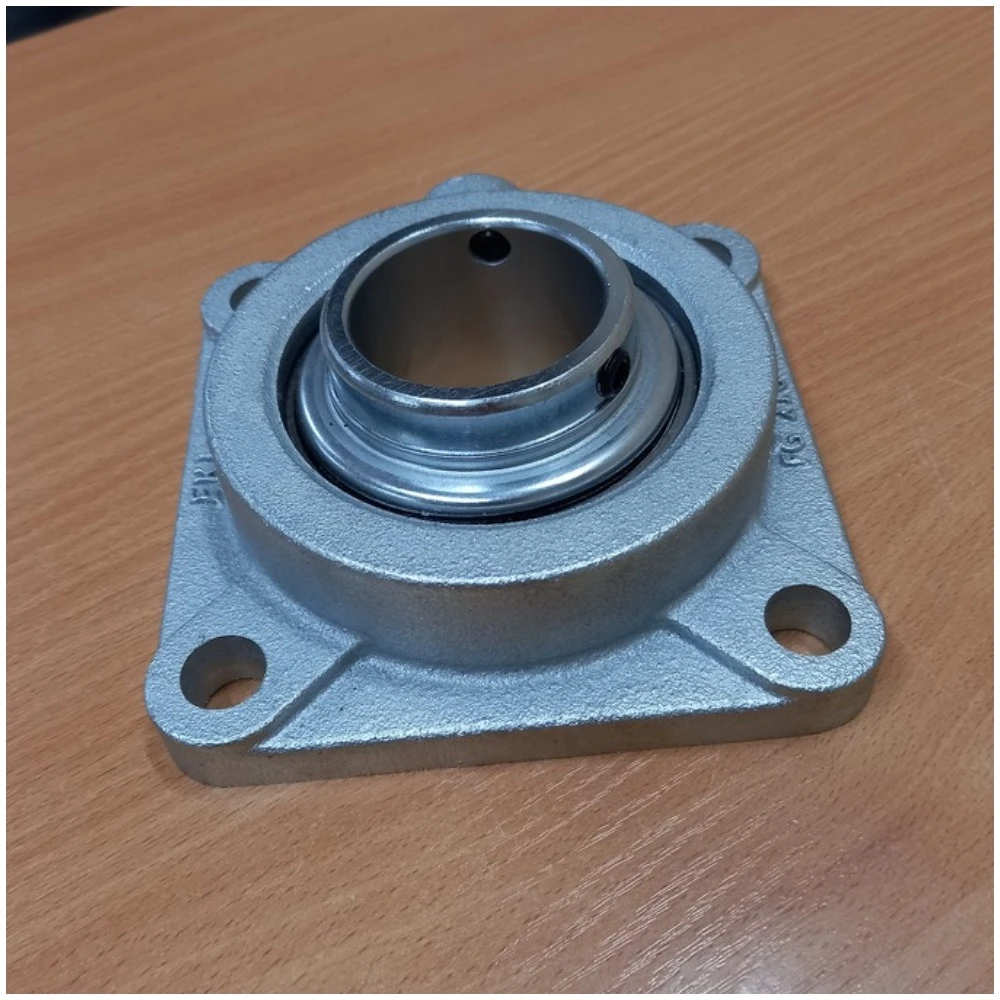

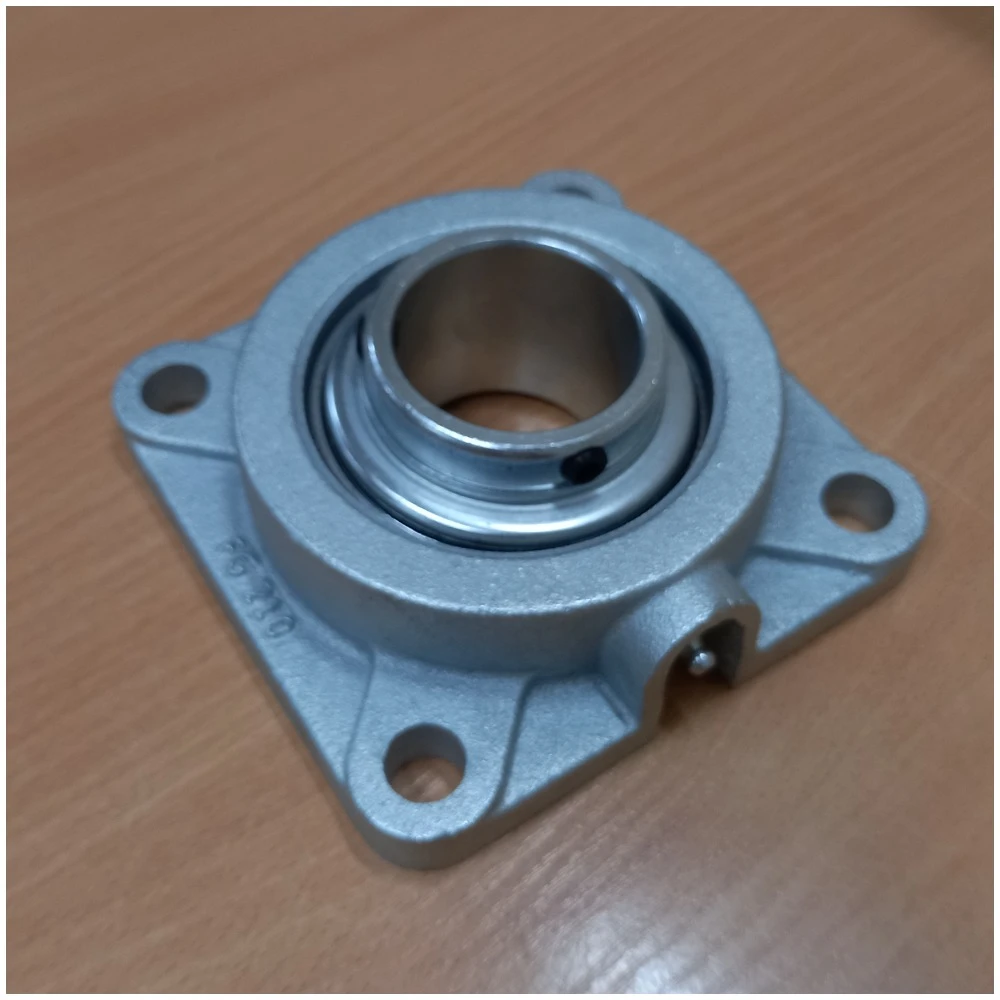

We offer bearing unit ARMOR LEFG 210 TDT FKL (Serbia).

Field of application - disc harrows, rollingcoils.
OEM: KM040015 Bednar, KM040141 Bednar, F04060013 Gaspardo, PAL05000 Quivogne, m13358 Farmet, m21967 Farmet, RF30584 Kverneland, LEFG 210 TDT Opall-Agri.
Analogs: FYJ 50 TF SKF, UCF 210 FAG, XD-UCF 210-50MM-XB-AP-TLSU117 Peer.
(//tractor-service.com)

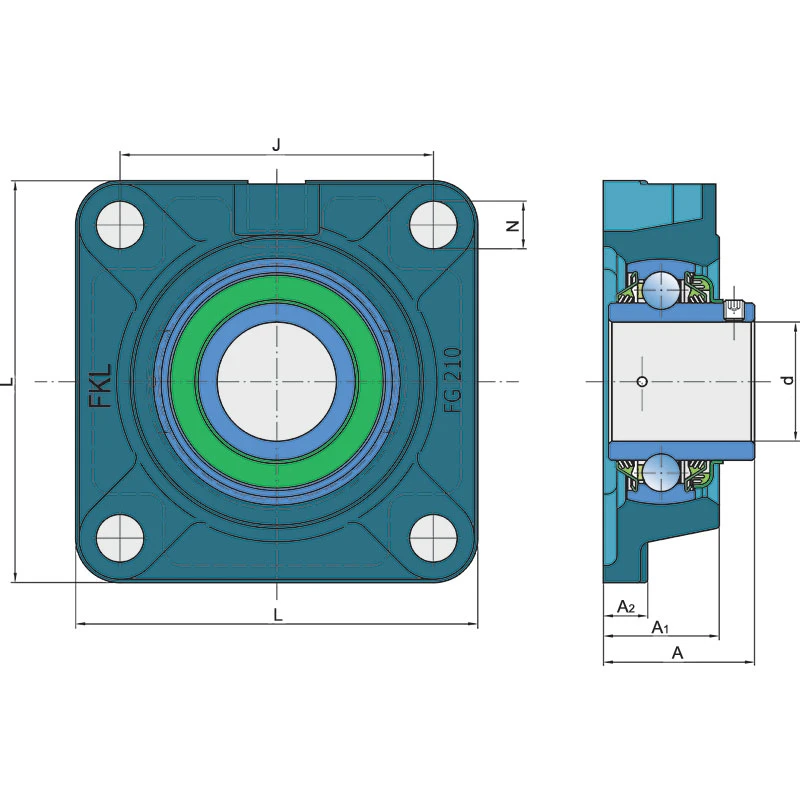

Bearing ID - 50, Overall Width - 54.6, Overall Housing Width - 40, Overall Length - 143, Hole Center Distance - 111, Housing Type - FG, Weight - 2.77, Flange Edge Width - 16, Weight - 2.78, Dynamic Load - 35.1, Static Load - 23.2. Sealing type – 6-edge.

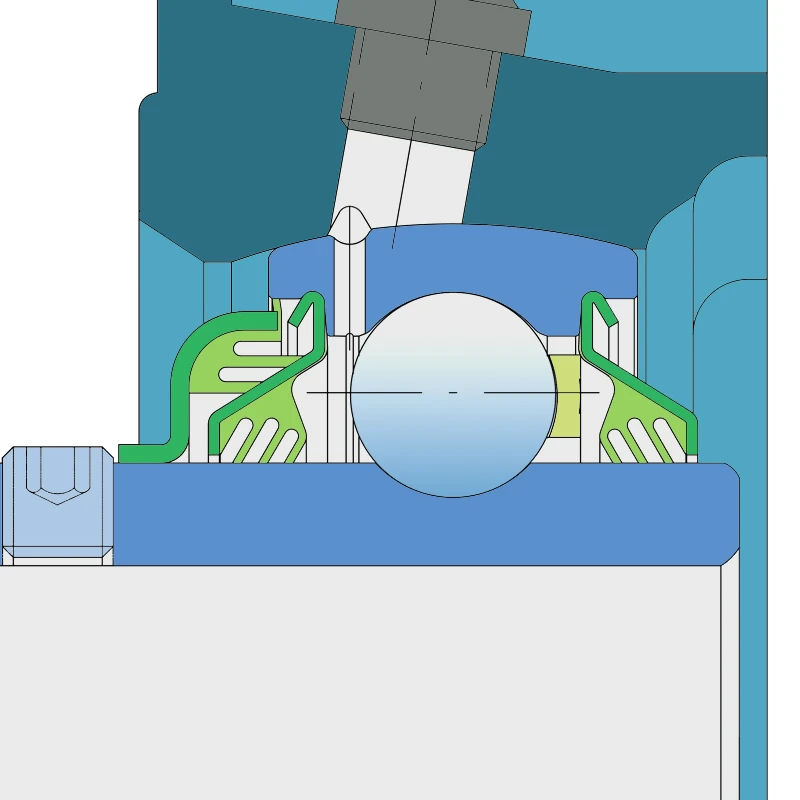

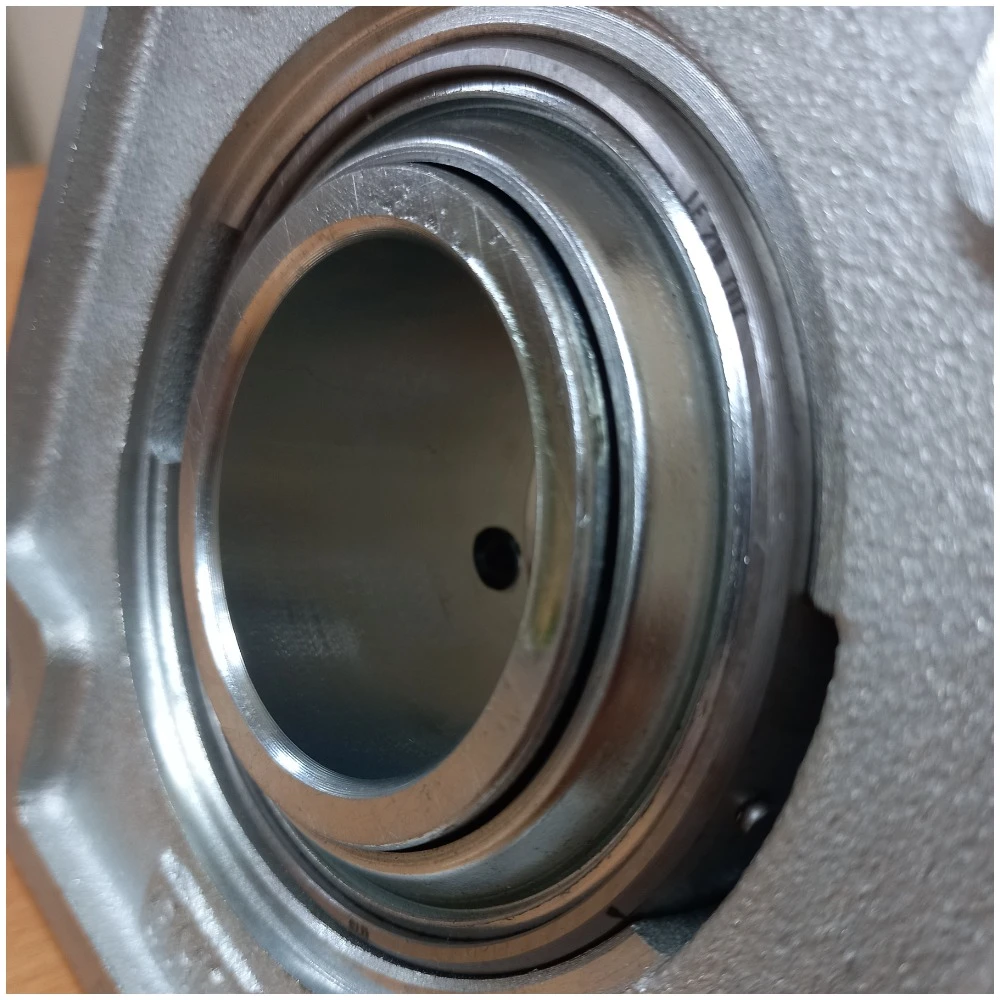

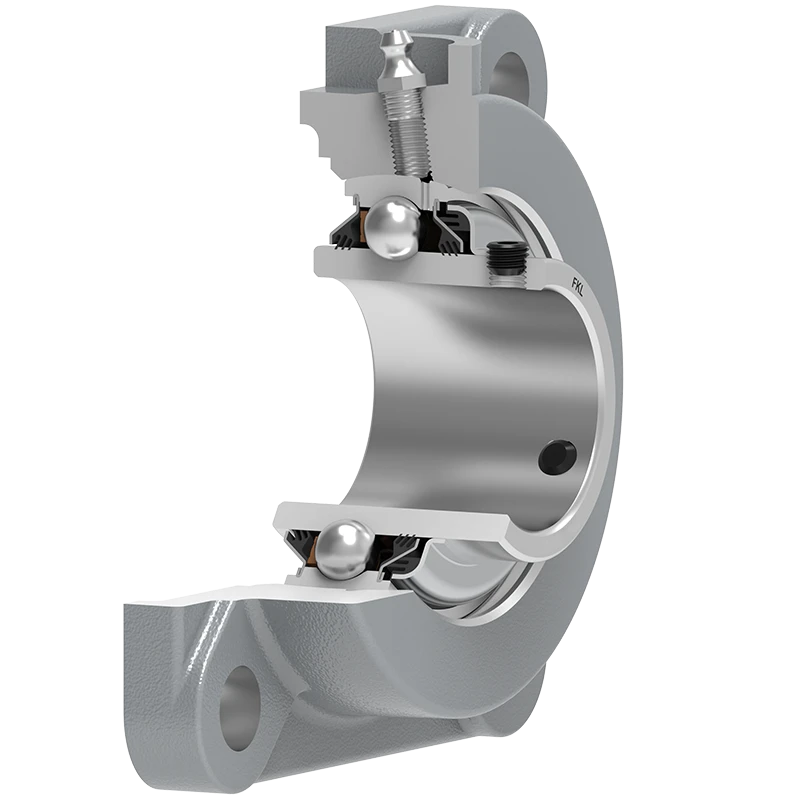

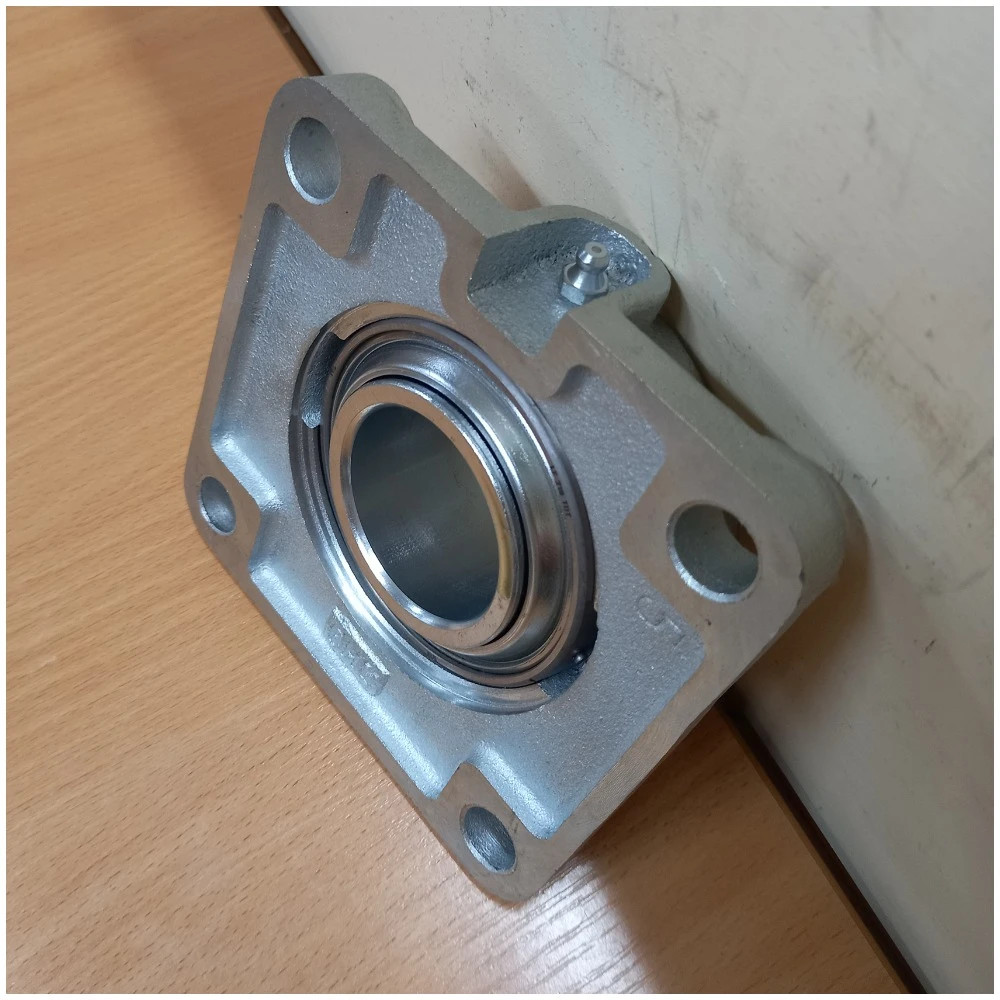

Maximum ARMOR protection: the body is cast from impact-resistant high-strength cast iron, which is 4 times stronger than ordinary gray cast iron; mechanical protection of the press oiler guarantees damage-free operation; the plastic cap protects against ingress ofdust into the lubricant; grooves for mounting the bearing are made inside the housing, which minimizes contact of the bearing with dirt and dust from the working side; additional stiffeners of the housing mounting holes; galvanized coating of the housing, press washer and inner ring of the bearing is the best protection against corrosion; the unique 6-edge sealing of the bearing on the working side and 3-edge on the inner side represent the most advanced sealing system for bearing units used in agricultural machinery today; a press washer, 1 mm thick, provides reliable mechanical protection; two lubrication holes on the outer ring of the bearing; channels for lubrication are provided both in the housing and on the outer ring of the bearing; the locking pin of the outer ring prevents the bearing from rotating.

LEFG 210 TDT FKL bearing units are equipped with LE 210 TDT FKL bearings.

"Agromash-Kalyna" LLC, "Krasilivagromash" LLC, "VK Technopol" PE, "Hartehprom-97" PF are business partners of "TVK "FKL Ukraine" company, which complete their own agricultural machinery with LEFG 210 TDT FKL bearing assemblies.
