Combination. scraper with two shafts TRIANTAFYLLIDIS-EQUIPMENT AMX 01 (Greece), Lviv Region region.

Duvhvalny sparchan intended for high-quality and quick cleaning of pig carcasses from bristles. It is a variant with a controllable folding cover.

Features:
 Two-wave sparchan is intended for cleaning pig carcasses from bristles.
 The machine is used to remove bristles from the skin ofpigs, from the entire surface of the carcass, including its most difficult parts.
 12 kW heating elements heat special thermal oil inside the jacket in the lower part of the machine, which, in turn, heats the water in the tank to the required temperature (60-62° C and keeps it at this temperature).
 Carcass rotates insidesparchana with the help of two shafts to which 80 pcs. are attached. rubber hammers for removing bristles.
 The lid is equipped with a pneumatic mechanism for automatic opening and closing of the lid.
 Shparchan is made entirely of stainless steel.

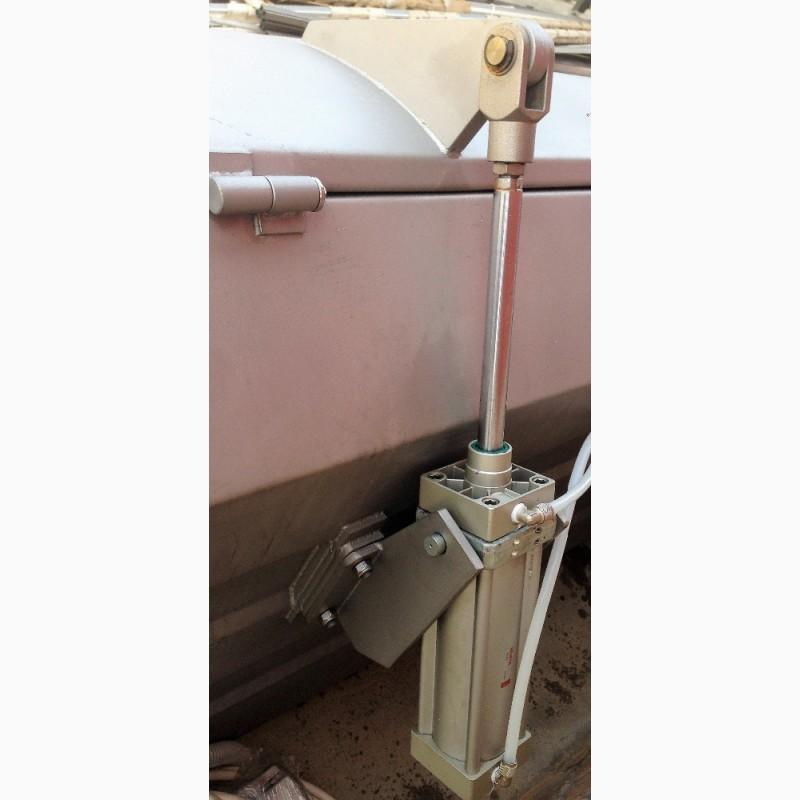

 Equipped with two pneumatic brackets for automatic lid opening and closing.
 CE certified.
(//tractor-service.com)
Technical characteristics:
Dimensions: 1110 x 2330 x 880 mm
Weight: 650 kg
Voltage: 380V/3Ph/50Hz
Heater power: 12 kW
Engine power: 2.2 kW
Water volume: 180 liters
Water temperature: 62 °C
productivity: 15-18 pigs / time
Duration of the processing cycle: 3-5 min.
Air pressure: 6 bar
The maximum weight of pork carcasses: up to 220 kg.
Warranty: 1.5 years
